Preformed guy grip is used in the installation of the exposed conductor, in the electric network transmission and distribution, and overhead insulated conductor. The reliability and economic advantage is better than the present bolt type and hydraulic compression type tension set which now is being widely used in the line.
Kits of preformed guy grip of tension for ADSS is mainly used for the connection of ADSS optical cable with tension pole tower, corner pole tower and terminal pole tower. According to the span or the tensile strength of the optical cable, kits of preformed guy grip of tension for ADSS are divided into three types: short span, medium span and long span.
The dead-end for short span ADSS cable,is normally used for the low tension ADSS cable for the connection of tensile poles, corner poles, intermediate poles and terminal poles with a span of less than 100 meters. The medium span is around 200-400 meters, the long span is more than 400 meters.

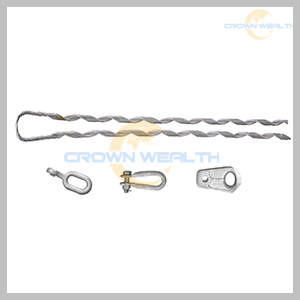

The different compositions could bare the different span requirements: for the short span it only has u-clevis, thimble and the preformed dead-end grip; the medium span has u-clevis, thimble, eye chain link, structural reinforcing rods(inner rods) and the preformed dead-end grip(outer rods); and for the long span need u-clevis, thimble, PD-link, inner rods and outer rods. Generally, the inner and the outer rods are made from aluminum-clad steel wire or galvanized steel wire. They have a wide range of diameter of available cable: 9.0~18.0mm. Also the various code color is very clear for the installation.

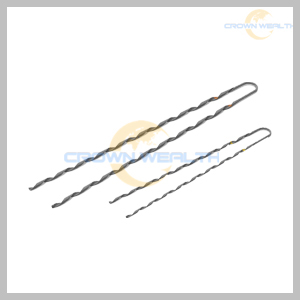

The structure of the preformed tension set is simple: the pipe structure formed by the two legs of the preformed wire can naturally wound around the wire to produce a great holding strength. Now the novel structure and exact design all contribute to the reliability of the conductor tension set. This kind of the set type of preformed guy grip is very popular in the market, and also our company provides more possibilities for the different installation situations.
