Suspension Clamp with Neoprene Insert for ADSS Cables
adss cable suspension clamp

Suspension Clamp with Neoprene Insert for ADSS Cables

The suspension clamp J hook consists of a J hook, screw, and sleeve.

Material of suspension clamp
J hook made of galvanized steel
The sleeve is made of neoprene
The screw is made of protected steel

Feature of suspension clamp with the J hook

1. The shape of the J hook suspension clamp allows a running out of the cable directly in the hook.
2. The suspension clamps can be directly secured to the poles using bolts or bandings.
3. Hook clamps also can be installed on hook bolts to provide some flexible suspension points and give extra protection to the cable against wind-induced vibrations.

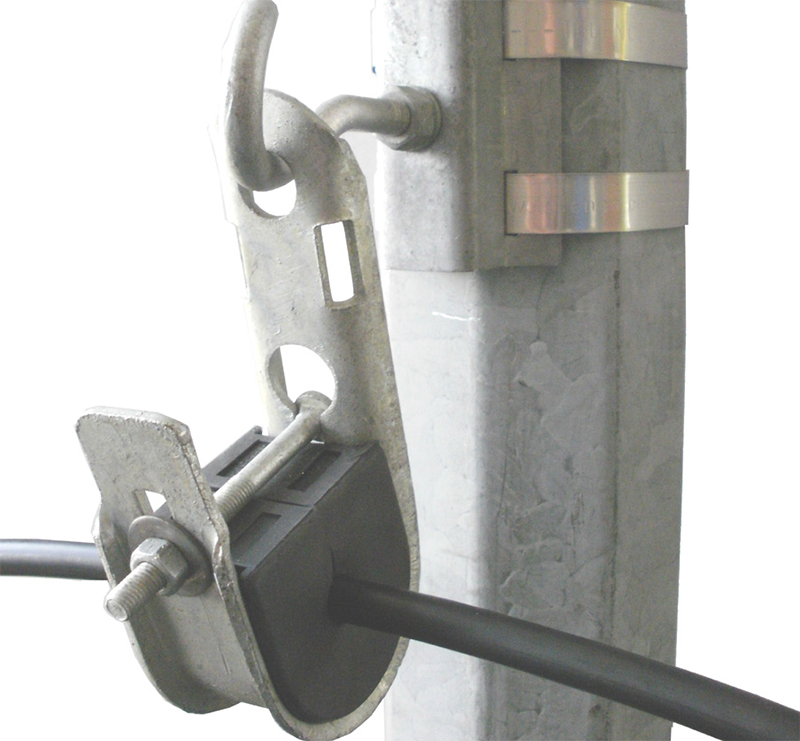

suspend bracketJ hook suspension clamp suspended with stainless steel banding or hose clamp.
The suspension clamp can be installed on wood poles, round concrete poles, and polygonal metallic poles using one or two 20mm pole stainless steel banding and two buckles.

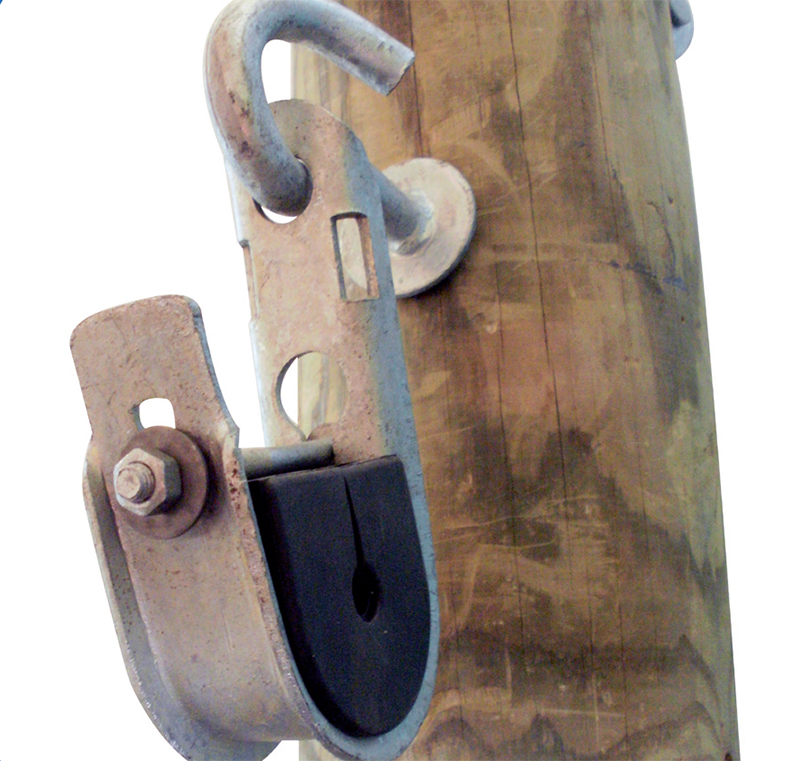

suspend hook boltJ hook suspension clamp suspended with a hook bolt

The suspension clamp can be installed on a 14mm or 16mm hook bolt on drilled wood poles.

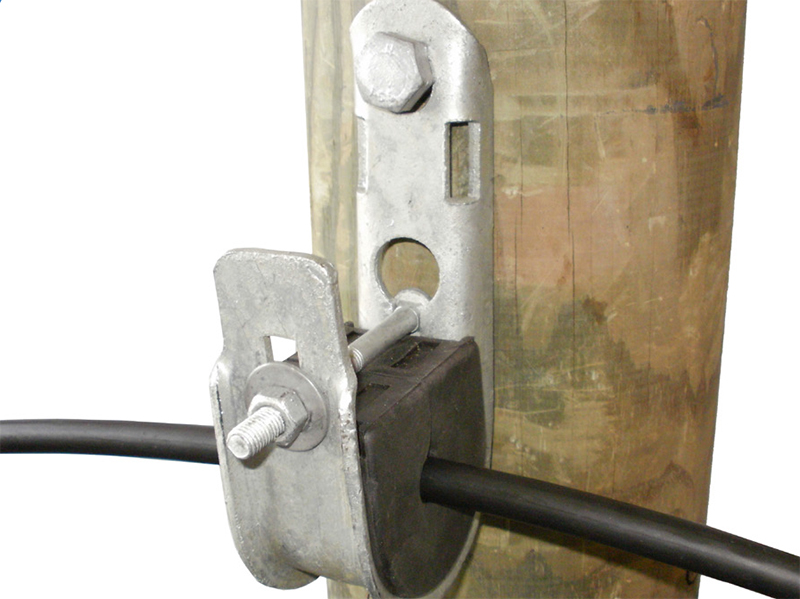

bolted clampJ hook suspension clamp suspended with a bolt

The suspension clamp can be secured with a 14mm or 16mm bolt on drilled wood poles.
