Pipe Clamps & Cable Clamps

Pipe clamps series products are also called pipe strap, standard pipe clamp, OEM pipe clamp, customized pipe clamp, rubber lined hose clip. Common products include: saddle pipe clamp, saddle pipe strap. Cable clamps are accessories for wires and cables, sometimes called cable stops or cable clamps. They are used to bundle, clamp, clinch, mark, guide and protect wires and cables. Commonly used in pole line engineering, indoor or outdoor antenna communication cable fixing. Also widely used in various industrial applications.

Pipe Clamps / Full Saddle Pipe Clamps / Half Saddle Pipe Clamps

These clamps are our most commonly used and simplest accessories. There are many key points here, and the material is the focus of your choice. The appropriate material can ensure the safety of the pipeline, and the matching size can ensure the stability of the pipeline.

Parts No.

Size

Finished

Material

Shim type

CWFSP

12 – 50mm

Zinc Plated/Hot-dip/Coated

SS304/316/steel

Full

Parts No.

Description

Material

Type

CWHSP

12mm – 50mm Plated/Hot-dip/Coated

SS304/316/steel

Half

Pipe Clamps

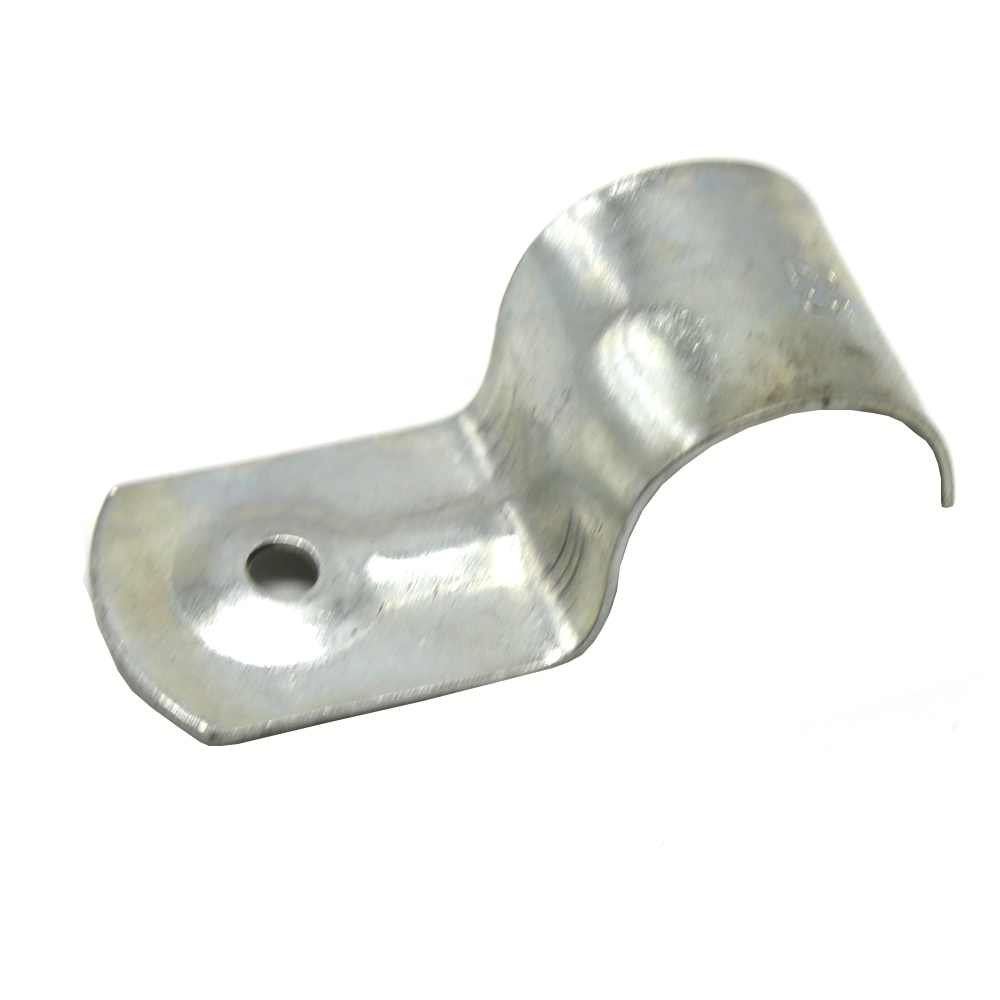

Half Pipe Clamp With 1/2 Hole

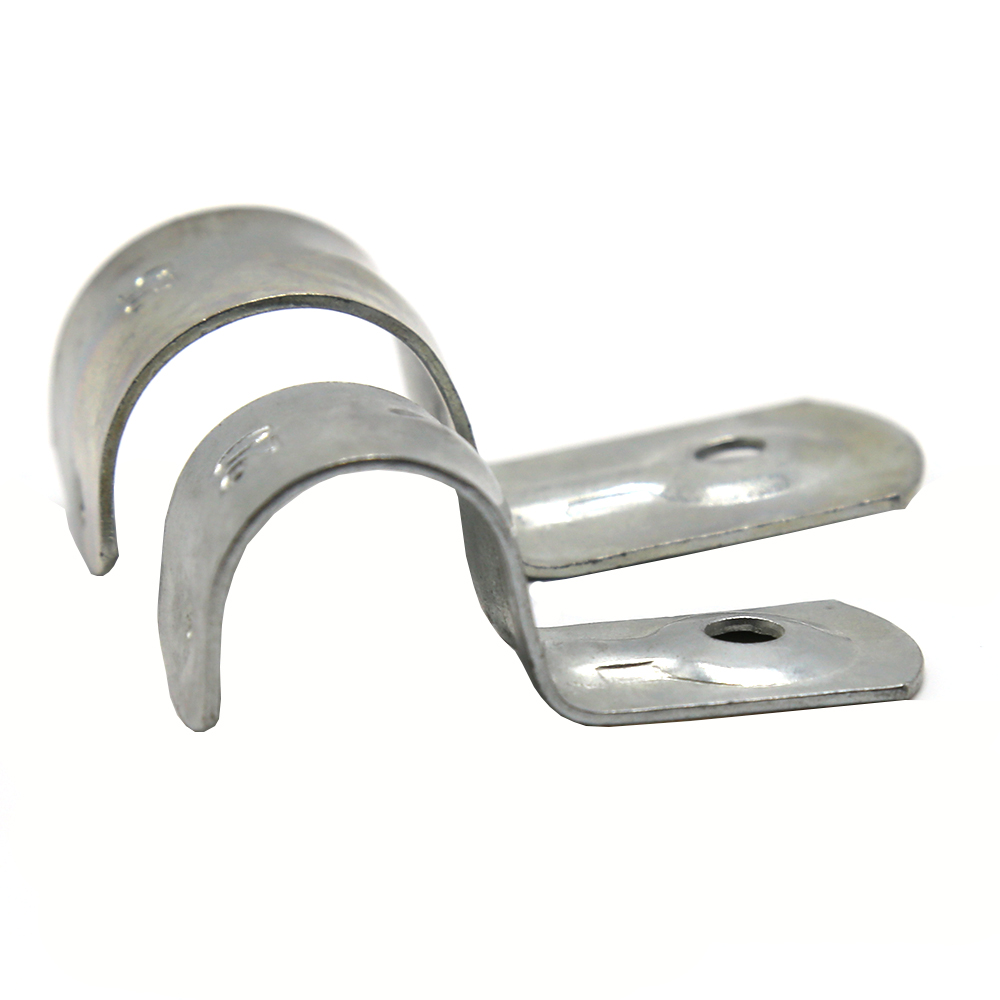

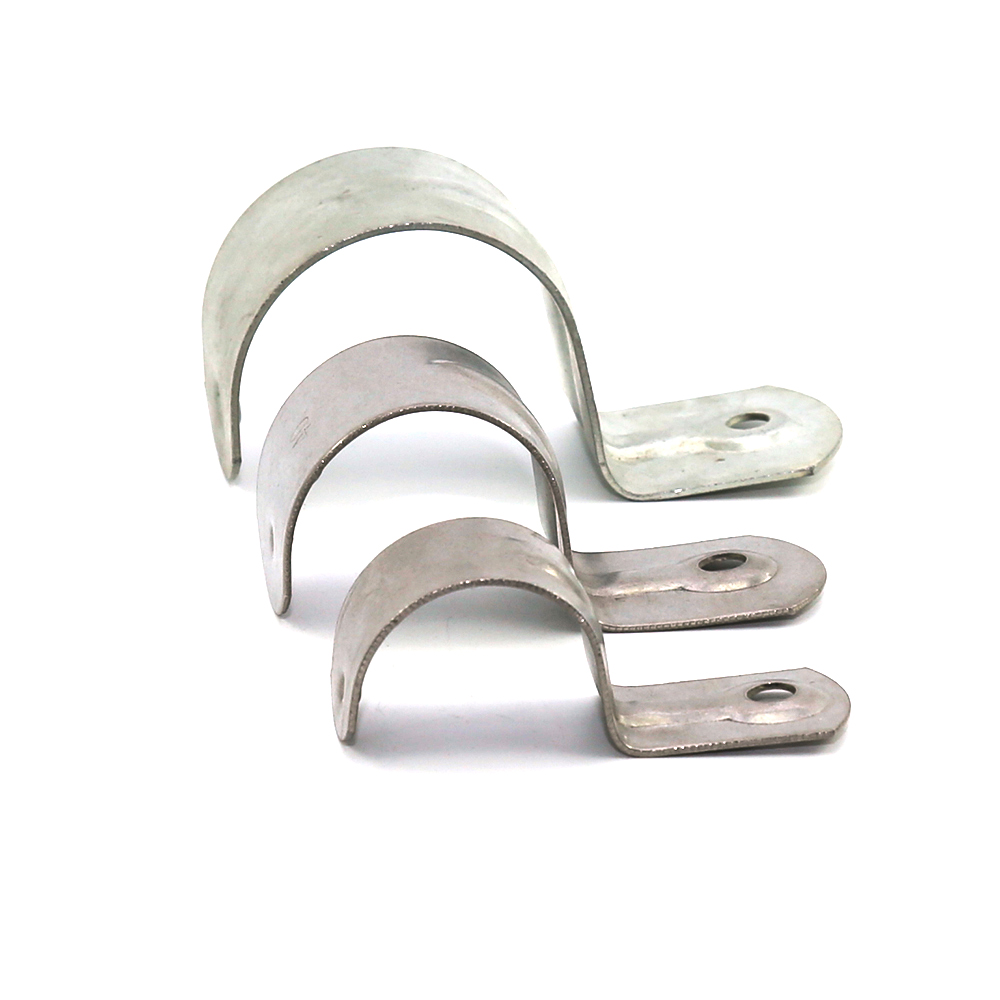

Pipe Saddle Clamps are fittings that fasten to building walls, pillars, and floors. They fasten metal pipes used for water or gas line installation or resin cable conduits for electrical work.

Parts No.

Description

Material

Size

CW-OU01	One Hole Clamp	AISI 1018 Steel	1/4″
CW-OU02	One Hole Clamp	AISI 1018 Steel	3/8″
CW-OU03	One Hole Clamp	AISI 1018 Steel	5/16″
CW-OU04	One Hole Clamp	AISI 1018 Steel	7/16″
CW-OU05	One Hole Clamp	AISI 1018 Steel	1/2″
CW-OU06	One Hole Clamp	AISI 1018 Steel	3/16″
CW-OU07	One Hole Clamp	AISI 1018 Steel	9/16″
CW-OU08	One Hole Clamp	AISI 1018 Steel	5/8″
CW-OU09	One Hole Clamp	AISI 1018 Steel	3/4″
CW-OU10	One Hole Clamp	AISI 1018 Steel	1″
CW-OU11	One Hole Clamp	AISI 1018 Steel	1-1/8″
CW-OU12	One Hole Clamp	AISI 1018 Steel	1-1/4″
CW-OU13	One Hole Clamp	AISI 1018 Steel	1-1/2″

Parts No.

Description

Material

Size

CW-TU01	Two Hole Clamp	AISI 1018 Steel	7/16″
CW-TU02	Two Hole Clamp	AISI 1018 Steel	5/8″
CW-TU03	Two Hole Clamp	AISI 1018 Steel	11/16″
CW-TU04	Two Hole Clamp	AISI 1018 Steel	3/4″
CW-TU05	Two Hole Clamp	AISI 1018 Steel	7/8″
CW-TU06	Two Hole Clamp	AISI 1018 Steel	1″
CW-TU07	Two Hole Clamp	AISI 1018 Steel	1-1/8″
CW-TU08	Two Hole Clamp	AISI 1018 Steel	1-1/4″
CW-TU09	Two Hole Clamp	AISI 1018 Steel	1-1/2″
CW-TU10	Two Hole Clamp	AISI 1018 Steel	1-5/8″
CW-TU11	Two Hole Clamp	AISI 1018 Steel	1-7/8″
CW-TU12	Two Hole Clamp	AISI 1018 Steel	2-1/4″
CW-TU13	Two Hole Clamp	AISI 1018 Steel	2-1/2″
CW-TU14	Two Hole Clamp	AISI 1018 Steel	2-5/8″
CW-TU15	Two Hole Clamp	AISI 1018 Steel	3-1/2″

Details of Copper Cable Clips

Half Pipe Clamp With 1/2 Hole

The copper clips are made from copper and designed for soft skin & mineral insulated cables.

Cable Diameter Range (mm)

Parts No.

Min

Max

Bag Qty

CWC-RSFL202	4.7	5.2	50
CWC-RSFL222	5.3	5.7	50
CWC-RSFL242	5.8	6.2	50
CWC-RSFL272	6.3	6.9	50
CWC-RSFL302	7	7.7	50
CWC-RSFL342	7.8	9	50
CWC-RSFL382	9.1	9.7	50
CWC-RSFL422	9.8	10.7	50
CWC-RSFL462	10.8	11.8	50

Cable Diameter Range (mm)

Parts No.

Min

Max

Bag Qty

CWC-RCHL20	5	5.4	50
CWC-RCHL22	5.5	5.9	50
CWC-RCHL24	6	6.4	50
CWC-RCHL26	6.5	6.9	50
CWC-RCHL28	7	7.4	50
CWC-RCHL30	7.5	7.9	50
CWC-RCHL32	8	8.4	50
CWC-RCHL34	8.5	9	50
CWC-RCHL37	9.1	10	50
CWC-RCHL40	10.1	10.7	50
CWC-RCHL43	10.8	11.7	50
CWC-RCHL47	11.8	12.7	50
CWC-RCHL51	12.8	13.5	50

Details of Rubber Cable Clips

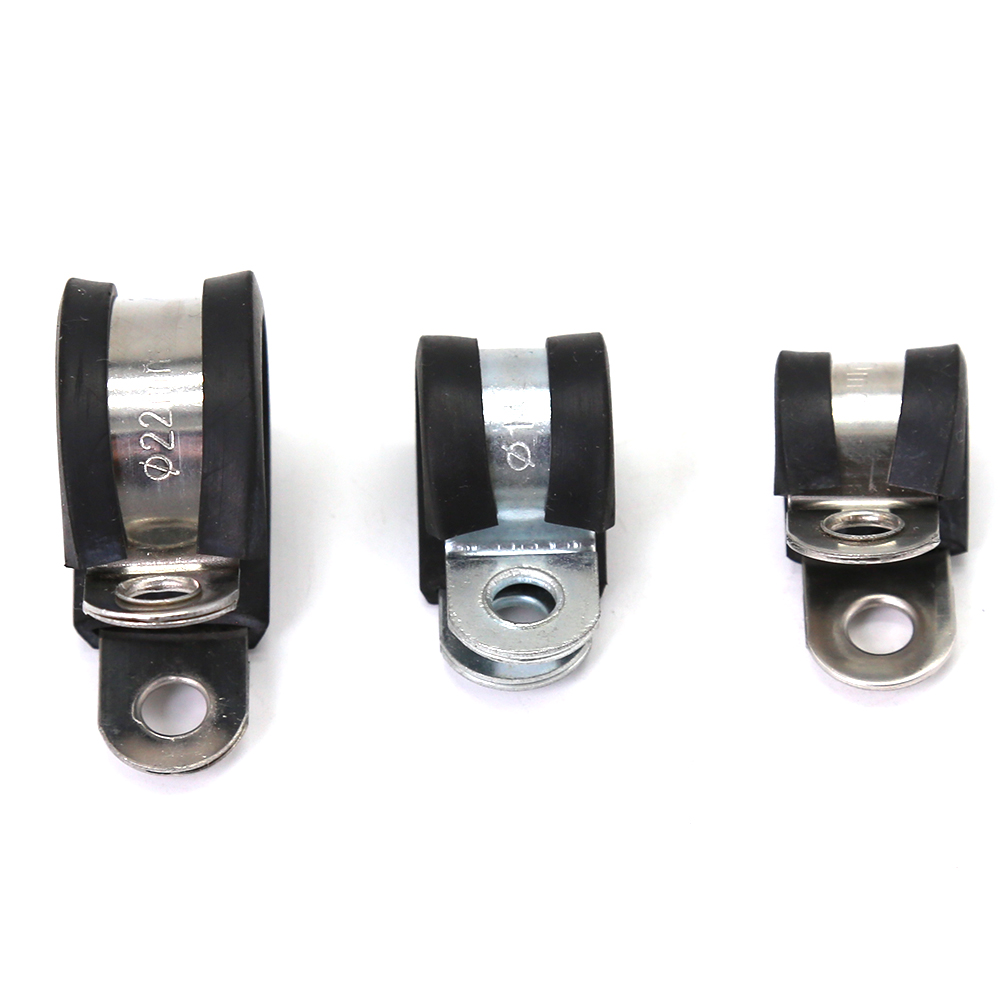

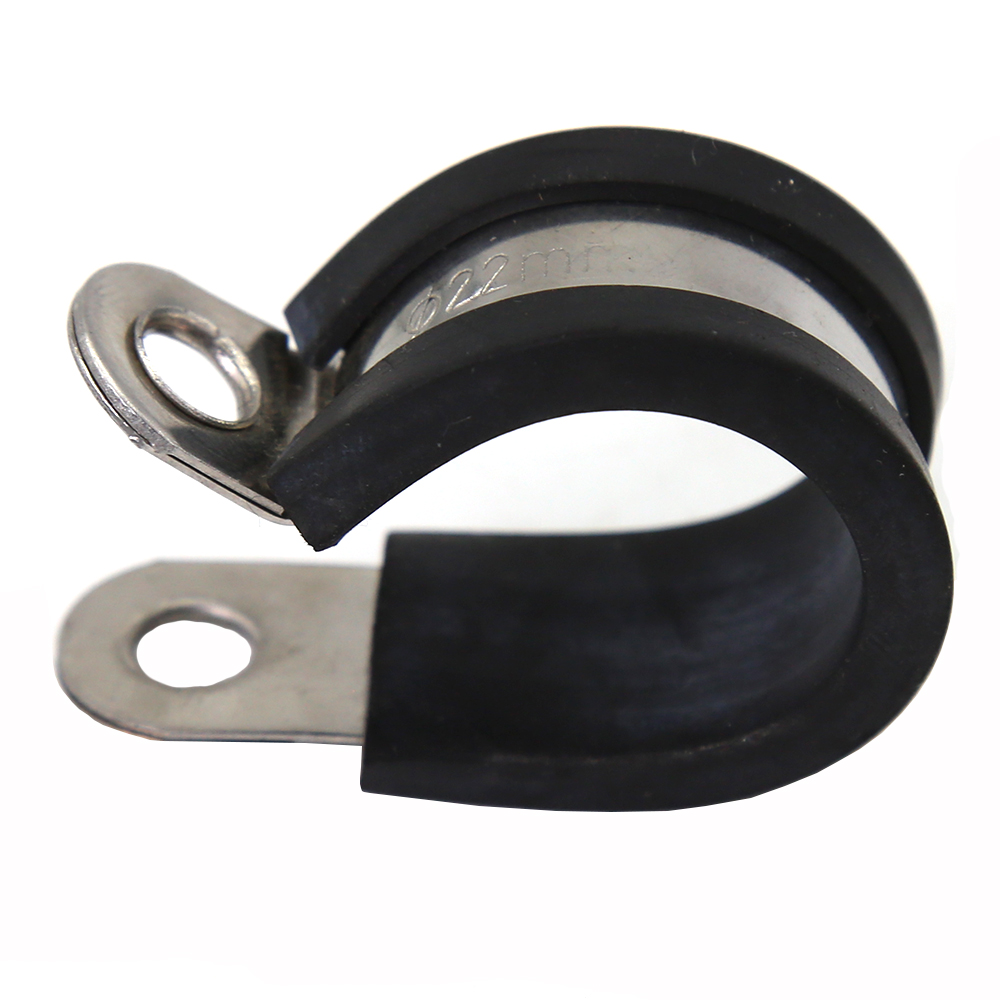

Rubber Lined Stainless Steel P Clips

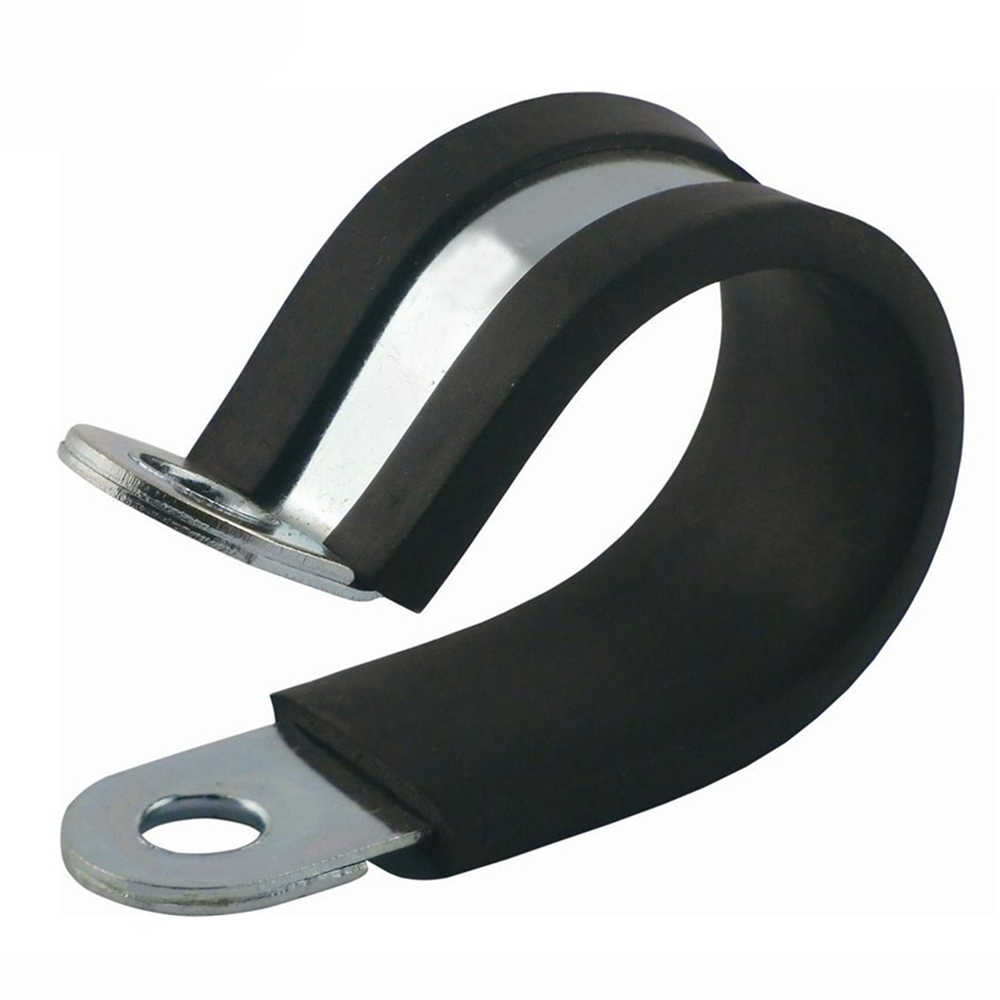

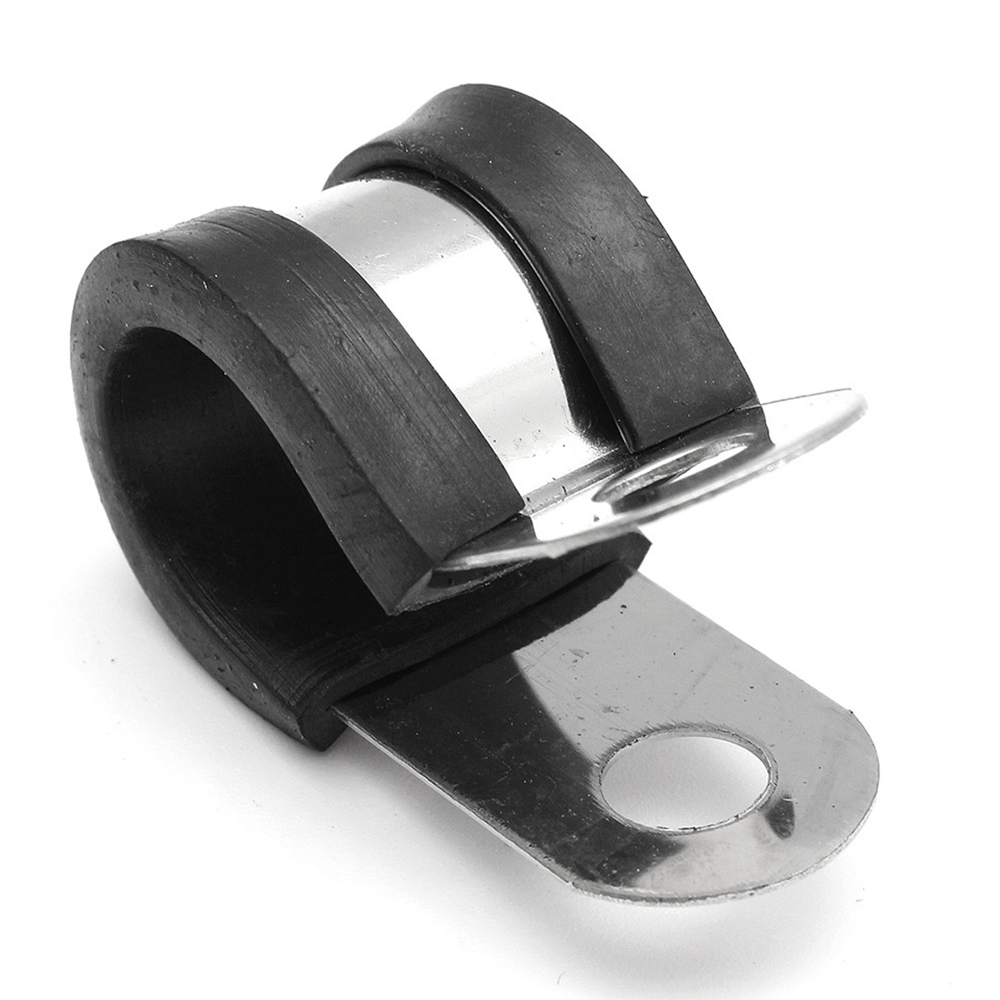

Rubber Lined Stainless Steel P Clips are designed with flexible steel or stainless steel one-piece band with an Ethylene Propylene Diene Monomer (EPDM) rubber liner. All clips have a pressed-in strengthening rib which keeps the clip flush with the surface it’s bolted to.

Parts No.

SS Band Width

Cable Diameter

SS Thickness

CWC-RLSPC01	9 mm	4-36 mm	0.5 mm
CWC-RLSPC02	12 mm	4-40 mm	0.5 mm
CWC-RLSPC03	15 mm	3-14 mm	0.6 mm
CWC-RLSPC04	15 mm	15-110 mm	0.8 mm
CWC-RLSPC05	20 mm	10-24 mm	0.8 mm
CWC-RLSPC06	20 mm	25-74 mm	1 mm
CWC-RLSPC07	25 mm	12-49 mm	1 mm
CWC-RLSPC08	25 mm	50-100 mm	1.2 mm

Details Of Cable Cleats

Cable Cleats

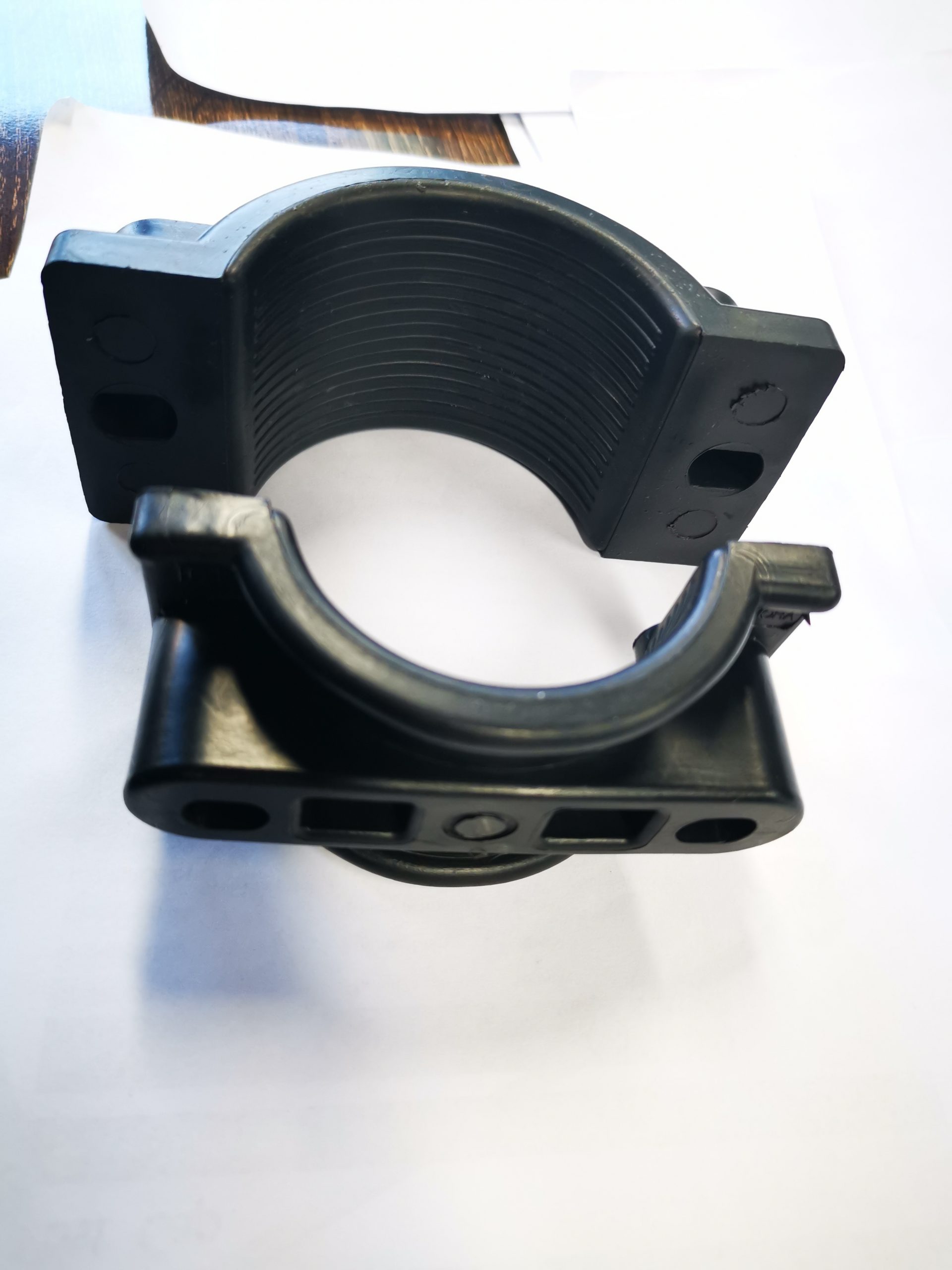

The cable cleat is a kind of cable clamp, one end is fixed on a supporting structure (usually a telegraph pole), and the other end is suspended from the middle antenna or cable. It is widely used in many antenna projects.Cable cleat is used to fix, clamp and support cables when attaching them to buildings, high structures, etc, providing effective short circuit protection.

Parts No.

LSF cleat code

Cable range Min-Max

C3-C20

C3LS-C20LS

5.0 – 50.8

Cleat code	LSF Cleat code	Cable Range (Min)	Cable Range (Max)	Stud Hole Size	A	B	C	Box QTY
C3	C3LS	5.0	7.6	m6	12.5	15.0	26.5	5000
C4	C4LS	7.7	10.0	m6	15	15.0	27.0	5000
C5	C5LS	10.1	12.7	m6	17	16.0	29.7	4500
C6	C6LS	12.6	15.2	m6	19.5	18.5	33.0	3500
C7	C7LS	15.1	17.8	m6	25.0	19.5	36.0	2500
C8	C8LS	17.7	20.3	m6	26.0	19.5	38.0	1800
C9	C9LS	20.2	22.8	m6	29.0	19.5	42.0	1400
C10	C10LS	22.7	24.4	m6	32.5	22.0	46.0	1200
C11	C11LS	25.3	27.7	m10	36.0	25.0	60.5	800
C12	C12LS	27.6	30.5	m10	40.0	25.0	59.0	500
C14	C14LS	30.4	36.5	m10	46.5	25.0	63.0	500
C16	C16LS	35.4	40.6	m10	52.0	25.0	69.0	350
C18	C18LS	40.5	45.7	m10	58.0	25.0	72.5	300
C20	C20LS	45.6	50.8	m10	60.0	25.0	72.0	300

Parts No.

LSF cleat code

Cable range Min-Max

CW-CC01-08

CC01-CC08

10.5 – 51.1

Cleat code	LSF Cleat code	Cable Range-A (Min)	Cable Range-A (Max)	B	C	D
CWCC01	CC01	10.5	14.5	18	32	12
CWCC02	CC02	12.2	16.7	22	36	14
CWCC03	CC03	14.6	19.8	26	43	16
CWCC04	CC04	17.7	24	31	51	18
CWCC05	CC05	21.7	28.5	37	57	20
CWCC06	CC06	26.2	34.2	43	65	22
CWCC07	CC07	31.9	41.6	52	78	25
CWCC08	CC08	39.3	51.1	62	91	26

Downloads of Pipe Clamps & Cable Cleats

The following product catalogs are for you to download

Catalog of C-cable clamps.

The clingstrap cable cleat is a comprehensive range of single fixing cable cleats to provide a simple, but strong means of securing cables. Suitable for use with cables or pipes up to 50.8mm in diameter.
