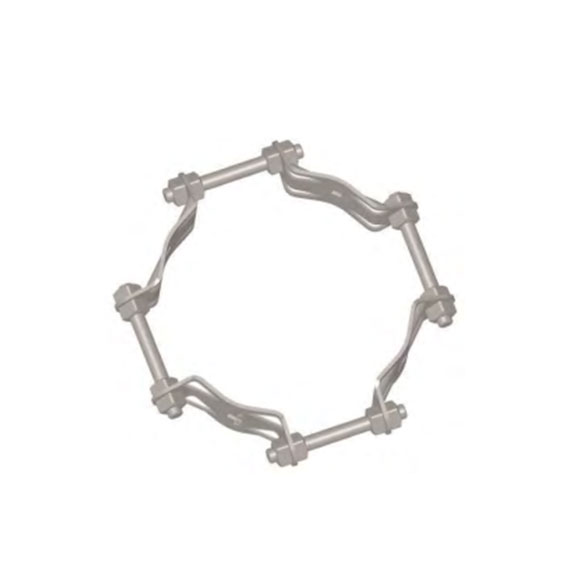

Adjustable Pole Band
Quote Inquiry for Your Product
Being interested in this product? Feel free to contact us or send us inquiries.
Description
The steel pole band are adjustable to be used on a wide range of wood poles, the material is hot dipped galvanized steel to ASTM a153, other types of pole band and their accessories are available upon request
1. Adjustable Pole Bands provide attachment points for guys and suspension insulators.
2. All components are hot dip galvanized to meet ASTM Specification A153.
|
Parts No. |
TYPE |
Pole Diameter |
Stud Bolt Size |
Lag Hole Diameter |
Flat Steel Size |
Approx Weight Per100 |
|
CWU6643 |
4 Way 90 Degree |
7”-9 1/2” |
3/4″ ×6” |
9/16″ |
5/16″ ×3” |
1575LBS |
|
CWU6643 |
4 Way 90 Degree |
8”-11” |
3/4″ ×6” |
9/16″ |
1/4″ ×4” |
1242LBS |
|
CWU6643 |
3 Way 90 Degree |
8”-12” |
3/4″ ×6” |
9/16″ |
1/4″ ×4” |
1339LBS |
|
CWU6643 |
4 Way 90 Degree |
11”-16” |
3/4″ ×6” |
9/16″ |
1/4″ ×4” |
1745LBS |
|
CWU6643 |
4 Way 90 Degree |
9 1/2”-16” |
3/4″ ×6” |
9/16″ |
1/4″ ×4” |
2820LBS |
