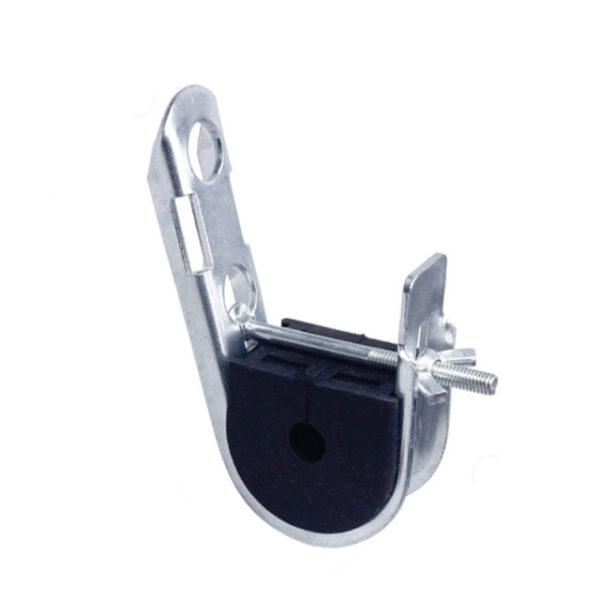

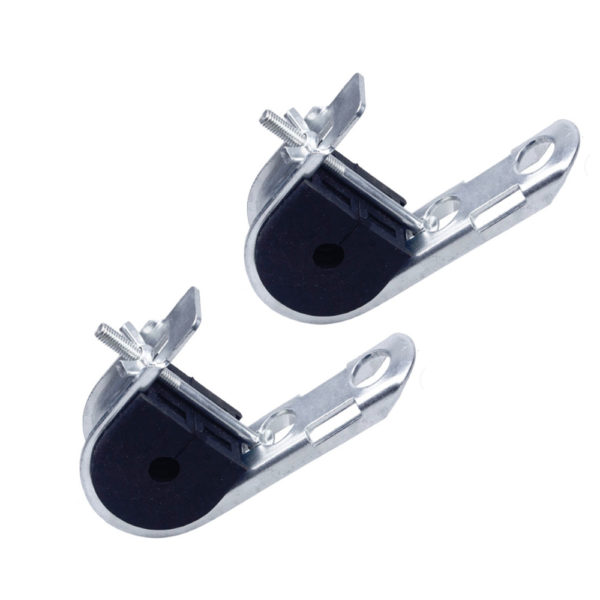

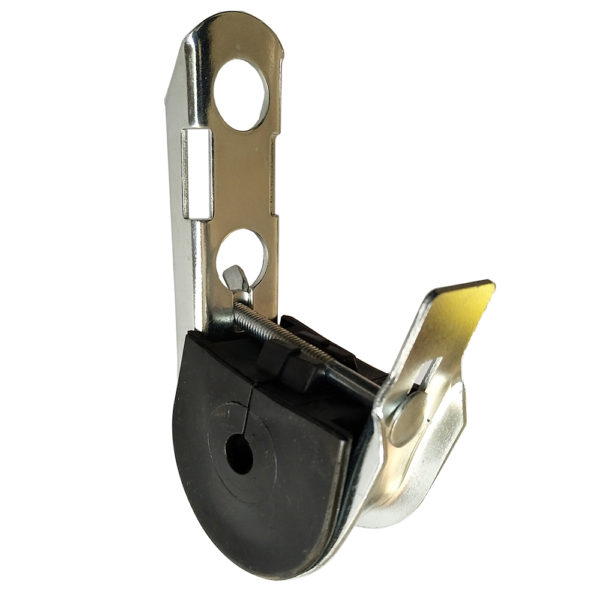

ADSS Cable J Hook Suspension Clamp
J Hook Suspension Clamp is used for the direct suspension of round fiber optic ADSS cables with Ø10 to 20mm on short spans (max 100m) at intermediate poles on straight routes.
Quote Inquiry for Your Product
Being interested in this product? Feel free to contact us or send us inquiries.
Description
ADSS Cable J Hook Suspension Clamps is designed to provide a suspension for aerial ADSS round optical fiber cable during construction of transmission line. The clamp consists of plastic insert, which clamp the optical cable without damaging. A wide range of gripping capacities and mechanical resistance archived by wide product range, with different sizes of neoprene inserts.
The metal hook of suspension clamp allows installation on the pole by using stainless steel band and pigtail hook or brackets. The hook of ADSS clamp can be produced form stainless steel materials according to you request.
Main Features:
- Three sizes to cover the full range of ADSS cables from 5 to 20mm.
- Installation in just a few seconds with a 13 mm standard 6-point spanner.
- The shape of the J Hook allows a running out of the cable directly in the hook.
- The suspension clamps can be directly secured to the poles using bolts or bandings. They can also be installed on hook bolts to provide some flexible suspension point and give extra protection to the cable against wind induced vibrations.
Specifications:
| Item NO. | ADSS Cable Diameter | Material |
|---|---|---|
| CWSC-1 | 5-10mm | Stainless steel Rubber insert |
| CWSC-2 | 10-15mm | |
| CWSC-3 | 15-20mm |
Applications

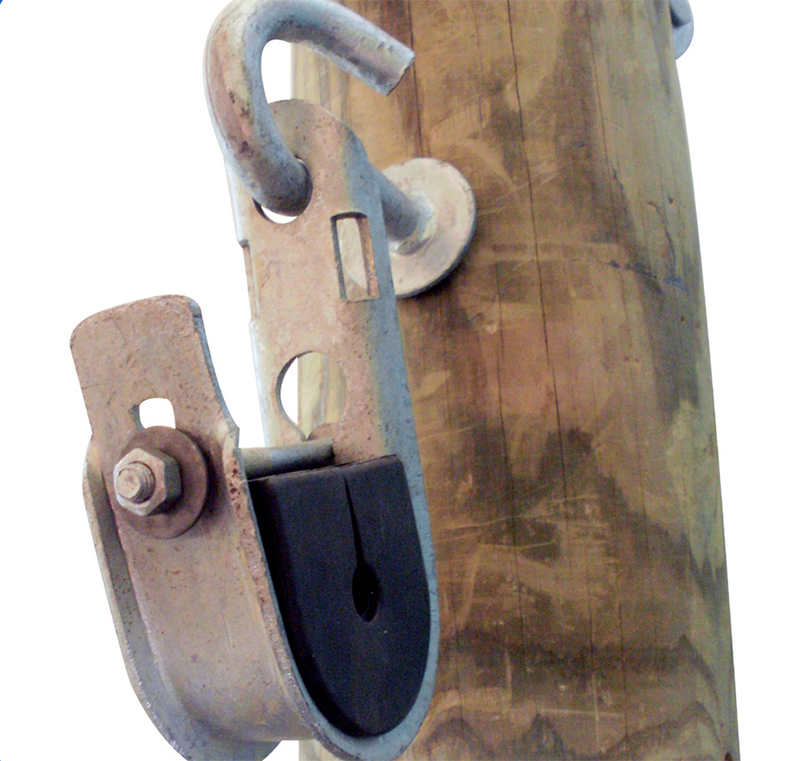

Suspended from a hook bolt
The clamp can be installed on a 14mm or 16mm hook bolt on drilled wood poles.

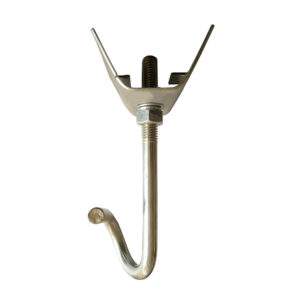

The length of the hook bolt depends on the pole diameter. Different sizes of hook bolts are available.

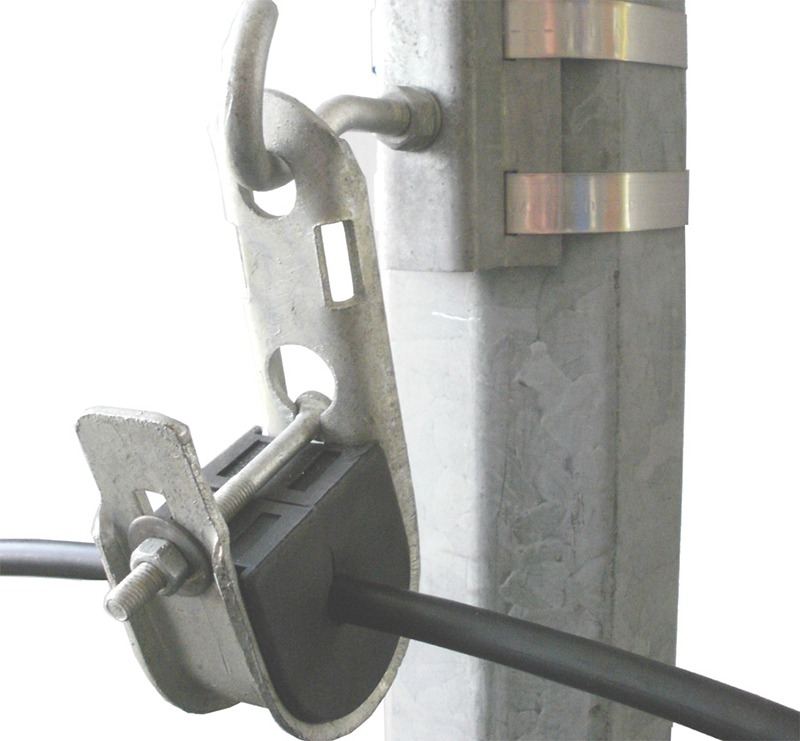

Suspensded from a bracket + hook bolt
The J Hook Clamp can be installed on wood poles, round concrete poles and polygonal metallic poles using a universal pole bracket UPB or a suspension bracket CS, a hook bolt BQC12x55 and 2 pole bands 20×0.4mm or 20×0.7mm.

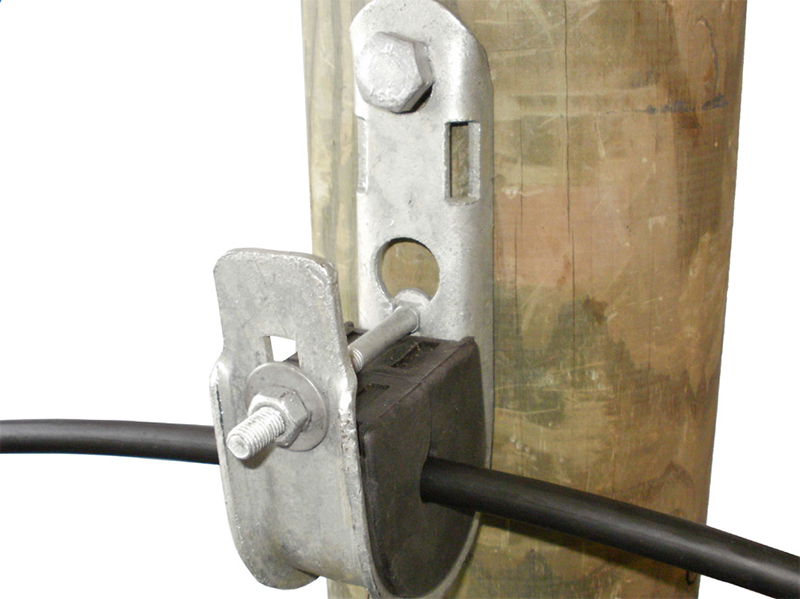

Bolted on wood poles
The clamp can be secured with a 14mm or 16mm bolt on drilled wood poles.
Secured with pole banding

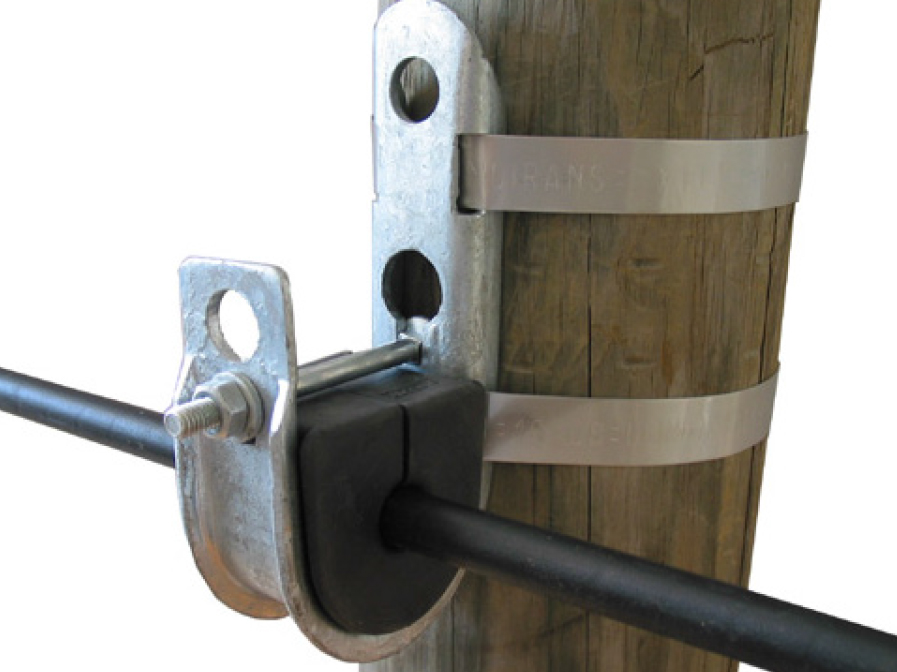

The clamp can be installed on wood poles, round concrete poles and polygonal metallic poles using one or two 20mm
pole bands and two buckles.
