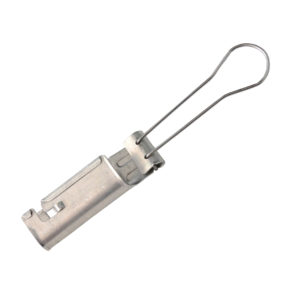

Aluminum Drop Wire Clamp with Dimpled Shim
CWC-2PRAS 1-2 Pair Aluminum Drop Wire Clamp With Serrated Shime
Quote Inquiry for Your Product
Being interested in this product? Feel free to contact us or send us inquiries.
Description
Aluminum Drop Wire Clamp Dimpled Shim (1-2 Pair) is widely used to support one and two pair telephone drop wire at span clamps, drive hooks, and various drop attachments. Drop wire clamps shall hold, without slippage, a suitable length of drop wire until sufficient load is applied to break the drop wire or to a maximum load of 555 lb.

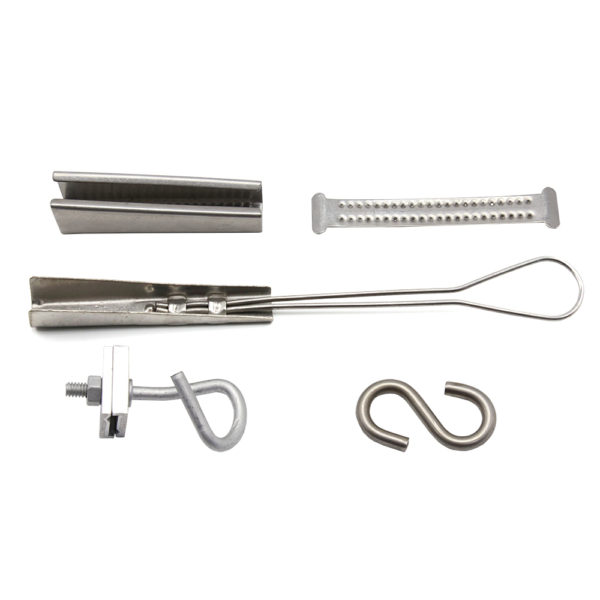

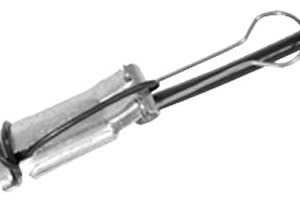

1-2 Pair Aluminum Drop Wire Clamp Dimpled Shim contains shell, shim and Wedge equipped with tail wire.
Main Features:
- Aluminum drop wire clamps with dimpled shim are stamped from 5052 H34 Aluminum.
- Bail wires are formed from 430 Stainless Steel.
- Provided with a serrated shim to increase hold on drop wire.
- Drop wire clamps shall hold, without slippage, a suitable length of drop wire until sufficient load is applied to break the drop wire or to a maximum load of 555 pounds.

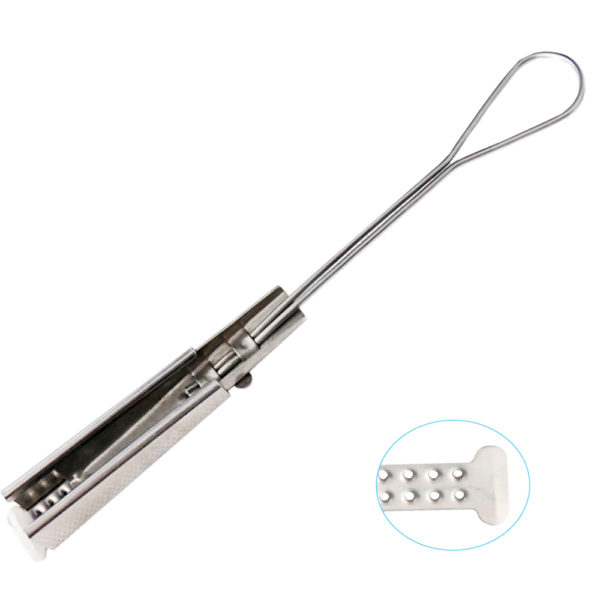

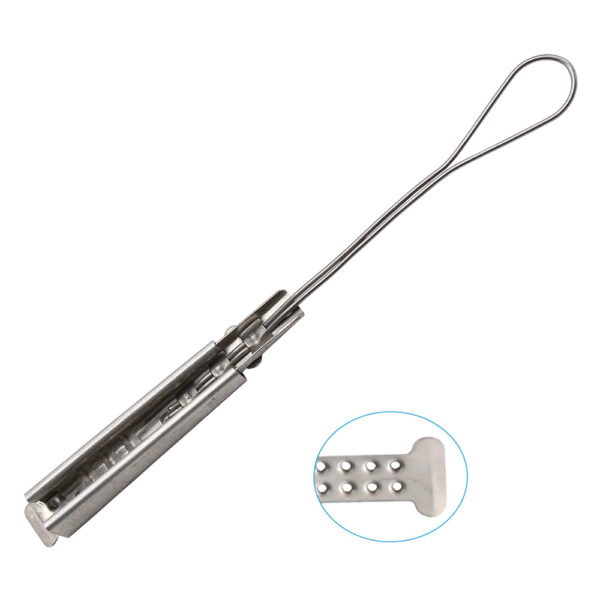

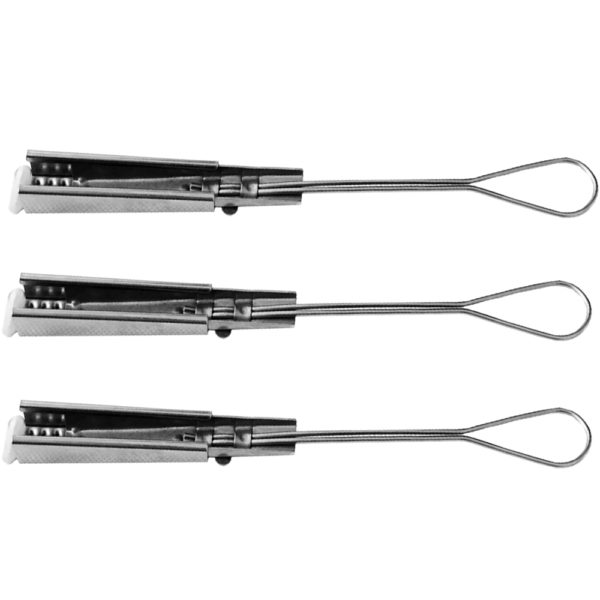

- knot: 2 knots/ 3 knots

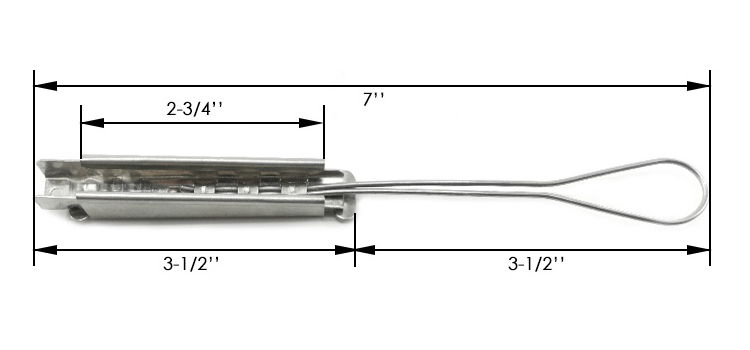

Size:
1-2 Pair Drop Wire Clamp Specifications:
| Part Number | Description | Material | Pair | Shim type |
|---|---|---|---|---|
| CWC-2PRAS | Drop wire clamp | Aluminum5052 Body, SS430Bail | 1-2 Pair | Serrated |
| CWC-2PRSS | Drop wire clamp | SS403 Body, SS430 Bail | 1-2 Pair | Serrated |
| CWC-2PRAD | Drop wire clamp | Aluminum5052 Body, SS430 Bail | 1-2 Pair | Dimpled |
| CWC-2PRSD | Drop wire clamp | SS304 Body, SS430 Bail | 1-2 Pair | Dimpled |
| CWC-2PRAP | Drop wire clamp | Aluminum5052 Body, SS430Bail | 1-2 Pair | Neoprene |
| CWC-2PRSP | Drop wire clamp | SS304 Body, SS430 Bail | 1-2 Pair | Neoprene |
Application:
- Secure many kinds of cables, such as fiber optic cables.
- Used to relieve strain on messenger wire.
- Support telephone drop wire at span clamps, drive hooks and various drop attachments.
- 1 – 2 pair wire clamps are designed to support both ends of an aerial service drop using one or two pairs drop wires.
- 6 pairs wire clamps are designed to support both ends of an aerial service drop using six pairs fiber reinforced drop wires.
