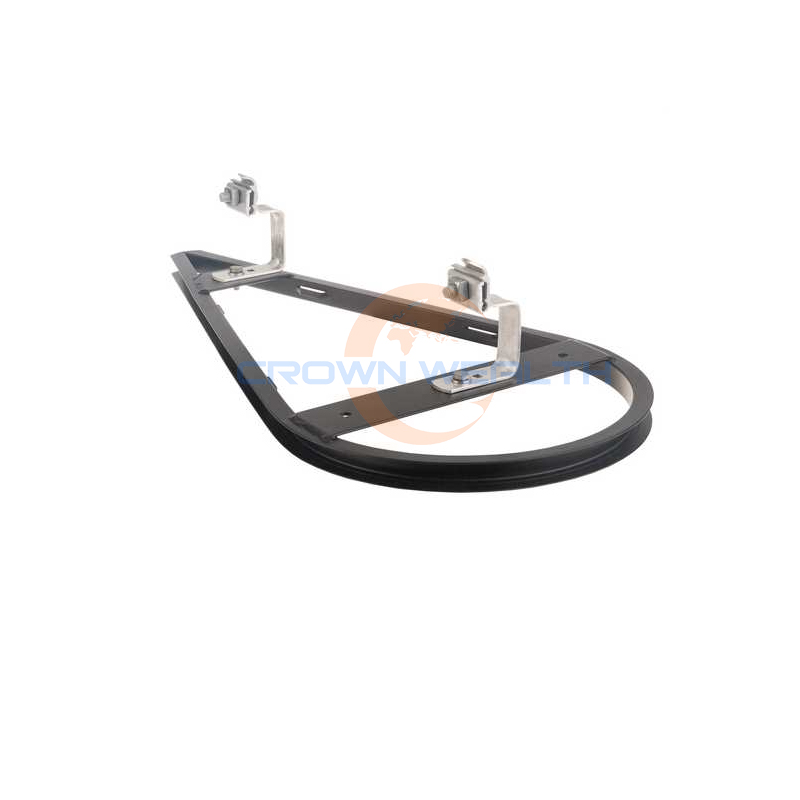

Aluminum Snowshoes Fiber Optic Storage System

The aluminum fiber optic storage system for strand and messenger mounted cable is available in a variety of sizes. With more than one million units in service, Crown Wealth fiber optic storage systems lead the industry in quality and durability.

Description

The aluminum fiber optic storage system for strand and messenger-mounted cable is available in a variety of sizes. With more than one million units in service, Hebei Crown Wealth fiber optic storage systems lead the industry in quality and durability.



Fiber Optic Storage System Features:

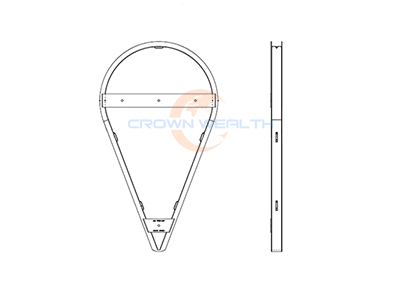

Snowshoe Sketch

The aluminum FOS (Fiber Optic Storage System) features all aluminum construction with continuous welds at crossbars and ends.

Each pair is individually boxed with stainless steel mounting bolts, nuts, and washers included.

Will fit all fiber cables up to 1.50″ OD.

Dual coat baked on polyester powder coat finish.

Tie eyelets are designed to accommodate both stainless steel and tie wrap securing methods.

Radius ends to ensure no sharp corners.

Minimal surface area minimizes stress and ice loading, a major concern in areas where icing can occur.



Specifications:

Parts No. Description Material Size Length Outside Diameter
CW-AFOS10 Fiber Optic Storage Snowshoe Aluminum 10.2″ 23″ 11.4″
CW-AFOS12 12.2″ 26″ 13.4″
CW-AFOS16 16.2″ 31″ 17.7″
CW-AFOS18 18.2″ 33″ 19.7″
CW-AFOS20 20.2″ 34″ 21.4″
CW-AFOS24 24″ 38″ 25.4″
CW-AFOS30 30″ 44″ 31.4″
