Bridle Rings
Bridle rings support and secure low voltage cable
Constructed of solid, low carbon steel
Makes wire management easy ,Can be combined with other platinum tools hardware
Quote Inquiry for Your Product
Being interested in this product? Feel free to contact us or send us inquiries.
Description

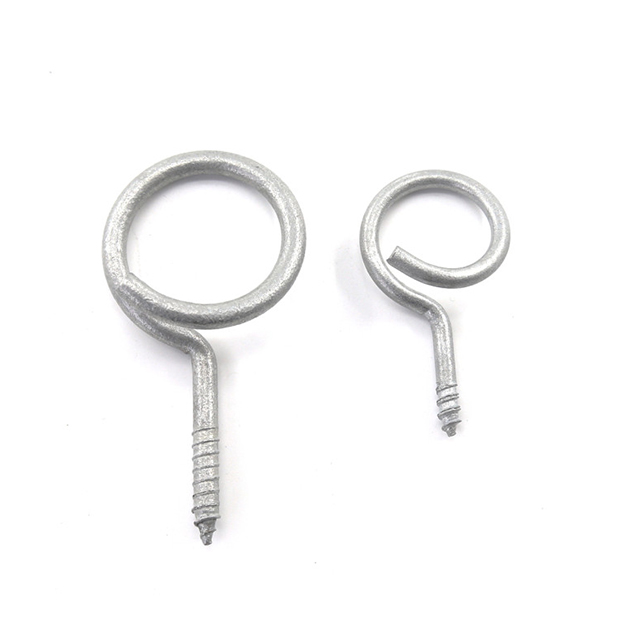

Bridle Rings are designed for support communication cables and other low voltage wires. The advantage of a bridle ring is that there’s an open slot in the top that allows the assult installer to quickly drop in wires and cables, supporting them from an overhead beam plant or into a sidewall of a surface for a vertical application when you’re running up the stud walls.
Bridle Rings for Low-Voltage Cable Support Applications:
- Supports and manages all low-voltage cables, including UTP, fiber optics, and electrical wire up to 600V
- Cables are placed into the ring through an open slot on the top for a simple and stress-free installation.
- Since these bridle rings form a full circle, they may be used for horizontal or vertical wire runs, unlike J-hooks.
- Can be used on walls and ceilings, making them ideal for multi-directional cable runs.
Specifications:

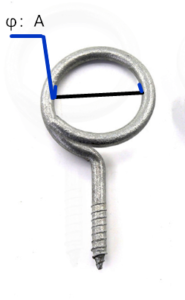

| Part No. | Description (A) | Material | Screw Thread |
|---|---|---|---|
| SH-BR01 | 7/8” Bridle rings | AISI 1008 | # 10 wood |
| SH-BR02 | 1-1/4” Bridle rings | AISI 1008 | # 14 wood |
| SH-BR03 | 1-5/8” Bridle rings | AISI 1008 | # 14 wood |
| SH-BR04 | 1-5/8” Bridle rings | AISI 1008 | # 14 wood |
| SH-BR05 | 3” C Bridle rings | AISI 1008 | # 18 wood |
| SH-BR05 | 3” C Bridle rings | AISI 1008 | # 18 wood |
| SH-BR06 | 3/4” K Bridle rings | AISI 1008 | 10-24 machine |
| SH-BR07 | 1-1/4” M Bridle rings | AISI 1008 | 10-24 machine |
| SH-BR08 | 1-1/4” B Bridle rings | AISI 1008 | 10-24 machine |
| SH-BR09 | 1-5/8” B Bridle rings | AISI 1008 | 1/4-20 machine |
| SH-BR010 | 1-3/4” R B Bridle rings | AISI 1008 | 10-24 machine |
