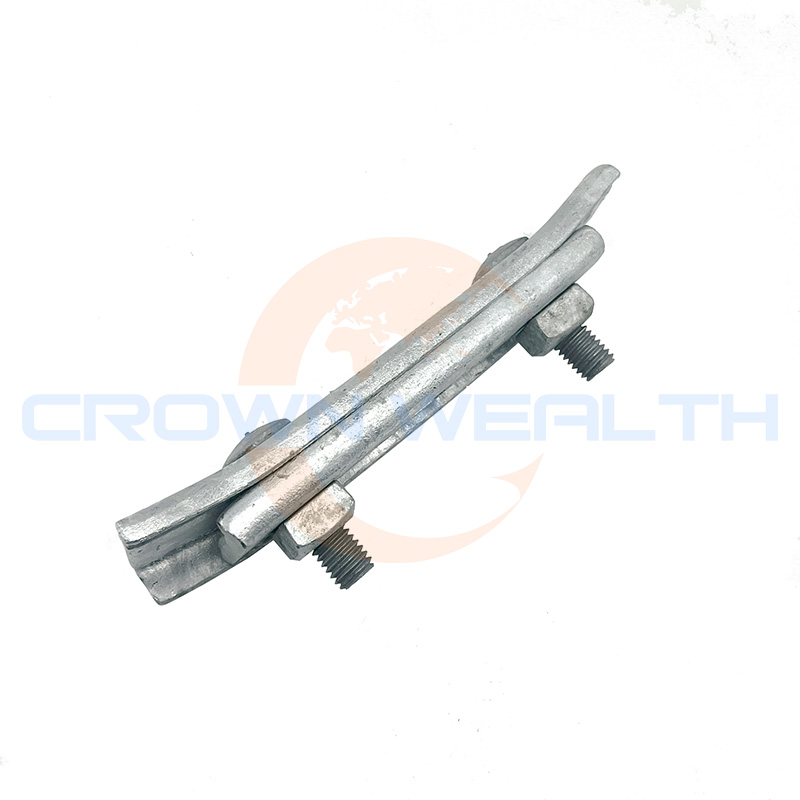

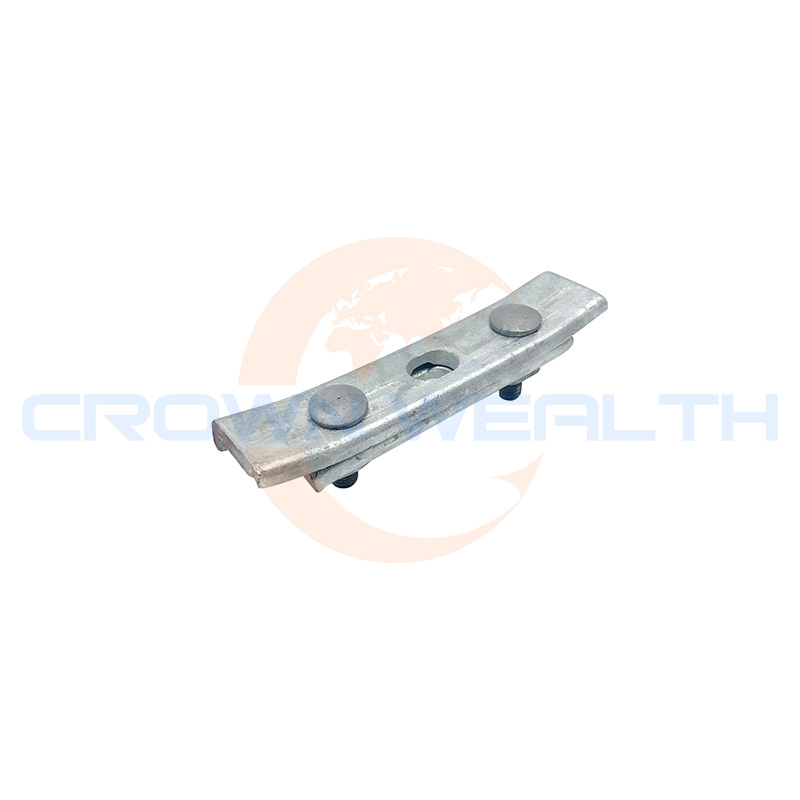

Corner Suspension Cable Clamp
Cable suspension clamp is used for attaching strands to corner poles, with a 5/8″ through bolt to support messenger cable at poles with angular runs. The clamp consists of two mating plates, and two 5/8″-11 track bolts with attached square nuts.
Description
Parts No. |
Description |
Material |
Strand size |
CW-CSC |
Corner suspension Cable clamp |
Steel galvanized |
1/4″-7/16″ |
- Applystrand sizes 1/4″ through 7/16″
- Supports angles up to 30 degrees
- Use with a 5/8″ diameter bolt.
- Galvanized steel
