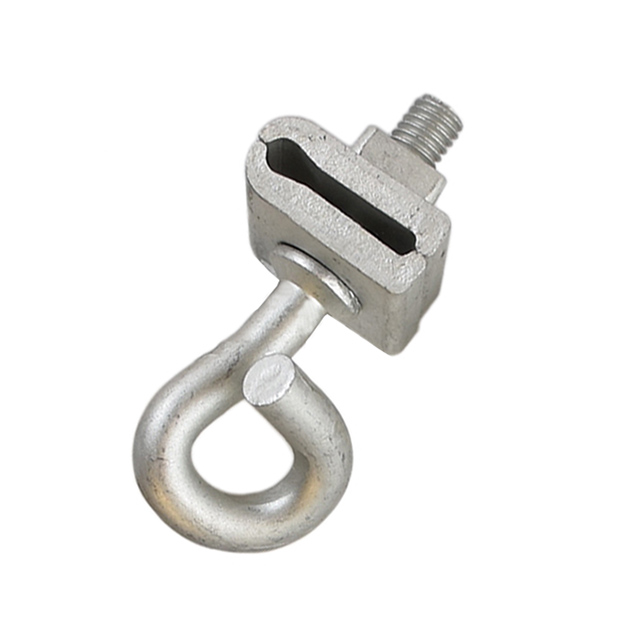

E Span Clamp
Used in drop cable installations as an attachment to the strand for accepting the bail of Drop Wire Clamps.
Description
E Span Clamp is used in drop cable installations as an attachment to the strand for accepting the bail of Drop Wire Clamp. The “E” is also used as a pull off to hold cable away from obstacles in the line of aerial construction. This application eliminates the use of tree guards.
Main Features:
- Tensile strength of jaws and bolt exceeds 75,000 P.S.I.
- Clamping range is from 1/4″(6.6M) to 7/16″(16M).
- Clamp is comprised of a pigtail bolt, two jaws, and a square nut.
- Bolt and nut are formed from Grade 2 Steel.
- Jaws are rolled and stamped from 1018 tempered Steel.
- Bolt and nut are hot dip galvanized to meet ASTM Specification A153.
- Jaws are mechanically galvanized to meet ASTM Specification B695.

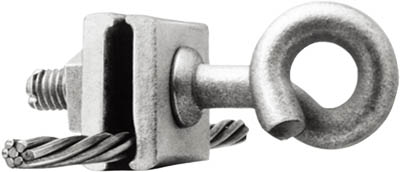

How to Install E Span Clamp:
- Position clamping polates on top of messenger strand. Here you can tighten clamping nut.
- Insert drop wire, drop wire clamp or wire grip into the hook.
- Pull drop wire against the hook toward the area where service is being installed.
E Span Clamp Specifications:
Part No. | Description | Material | Stud |
---|---|---|---|
CW-ESC | E Span Clamp | 6063 Aluminum | Grade 2 Steel |
