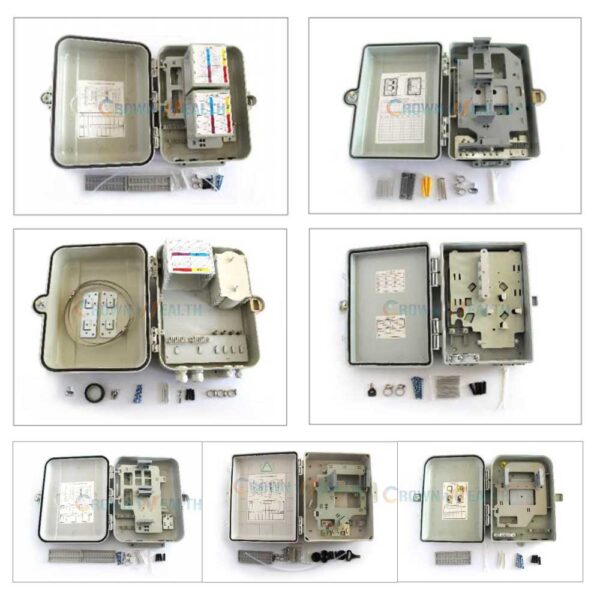

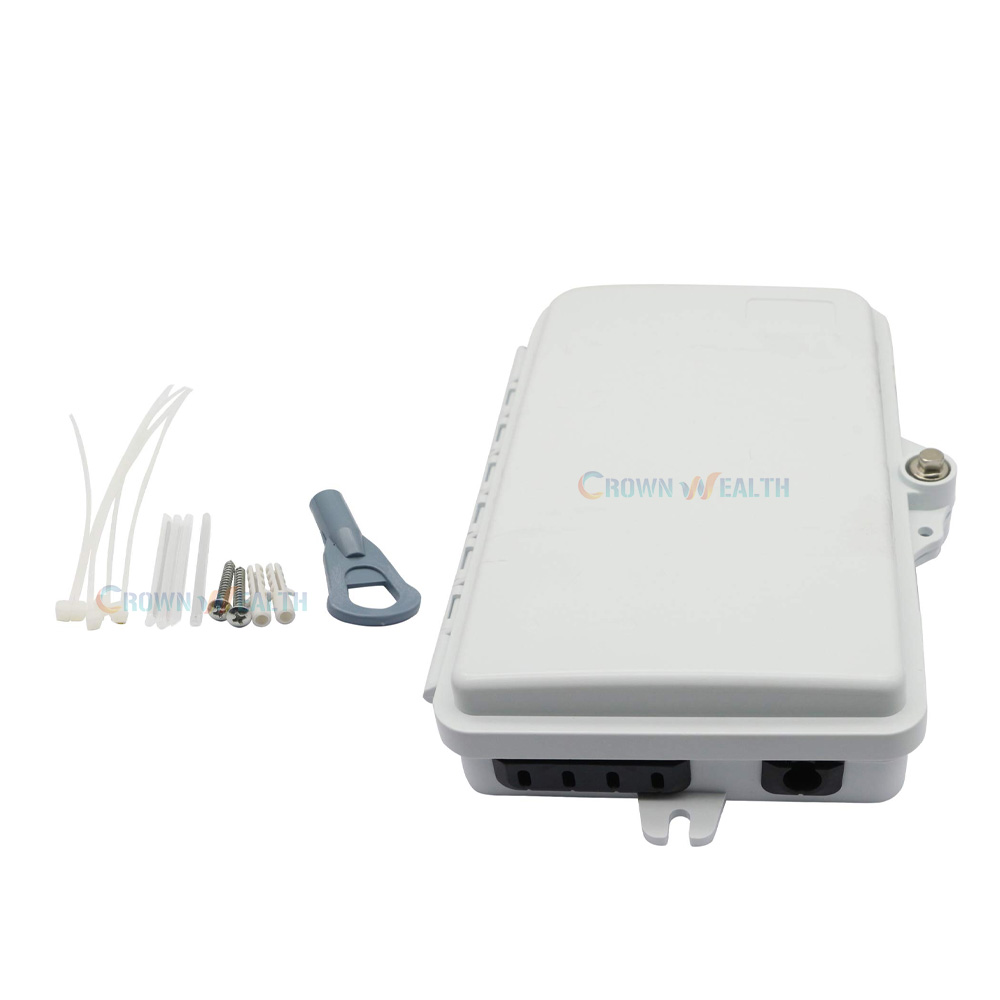

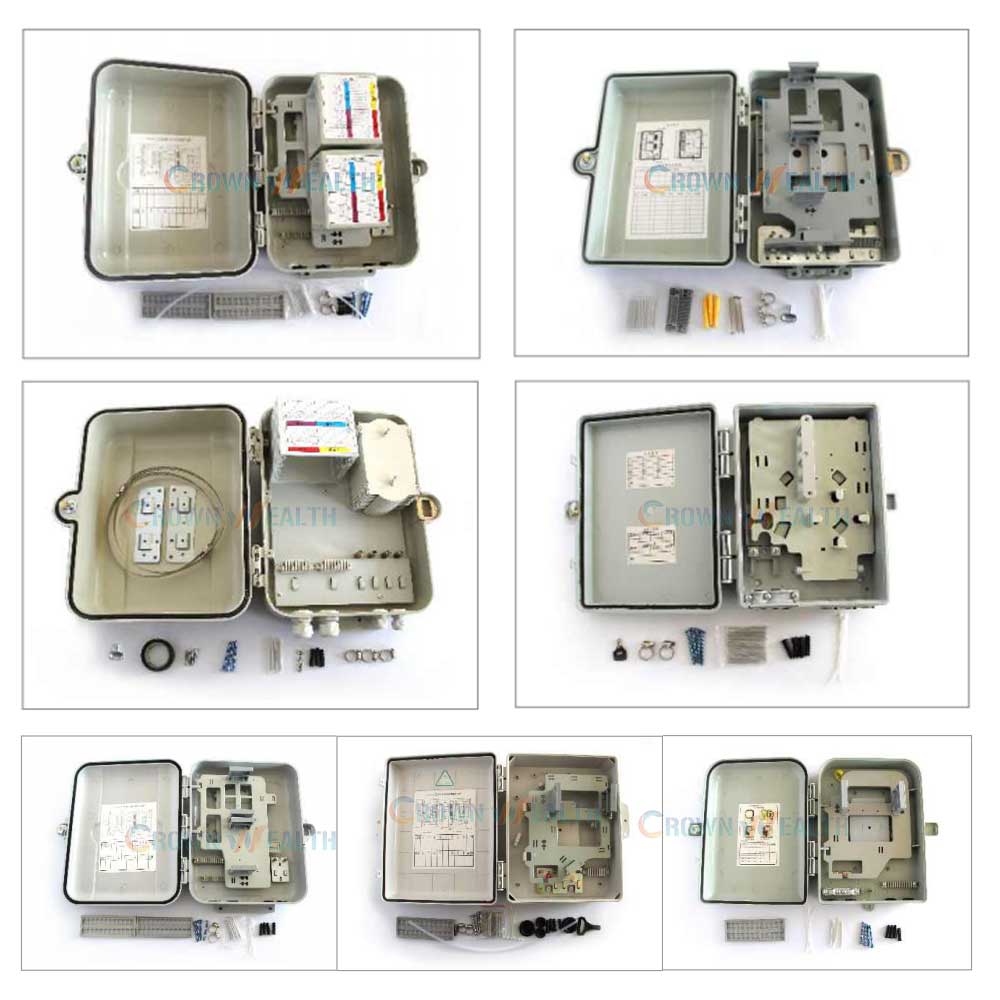

FTTH Fiber Optic Dividing Box
This FTTH Fiber Optic Dividing Box terminates up to 2 fiber optic cables, offers spaces for splitters and up to8 fusions, allocates 16 SC adapters and working under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.
Quote Inquiry for Your Product
Being interested in this product? Feel free to contact us or send us inquiries.
Description
Description
The Outdoor FTTH Fiber Optic Dividing Box is widely used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system, the fiber splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
We have our factory uniform test, excellent manufacturing process and precision craft, which make the best replacement parts for your equipment.
Easy operation, great for quick and easy installation, can be plugged in the assembly process. The surface is treated with ultraviolet resistant and good stability for optimal maintenance.
Parameters
| Part No. | Description | Material | Fibre Capacity | Weight/kg |
| CW-FDB | FTTH Fiber Optic Dividing Box | ABS/PC, MSC | 12/16/24/32/48/32/48/64 | 0.93-5.27 |
Applications
– LAN/WAN and Metro Networks
– FTTH project & FTTX Deployments
– CATV System
– GPON, EPON
– Fiber Optic Test Equipment
– Data-base Transmit Broadband Net
Features

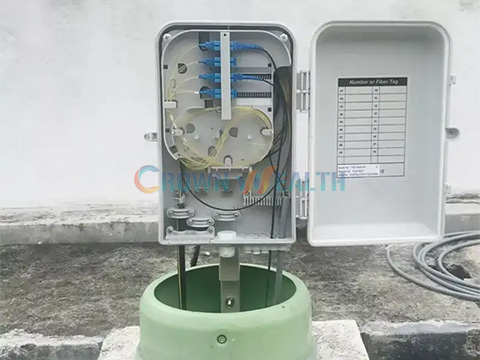

* Suitable for indoor, wall-mounted, pole, aerial installation
* Water-proof design for outdoor uses
* High quantity ABS/PC material injection molding, good mechanical performance, elegant appearance, robustness and durability

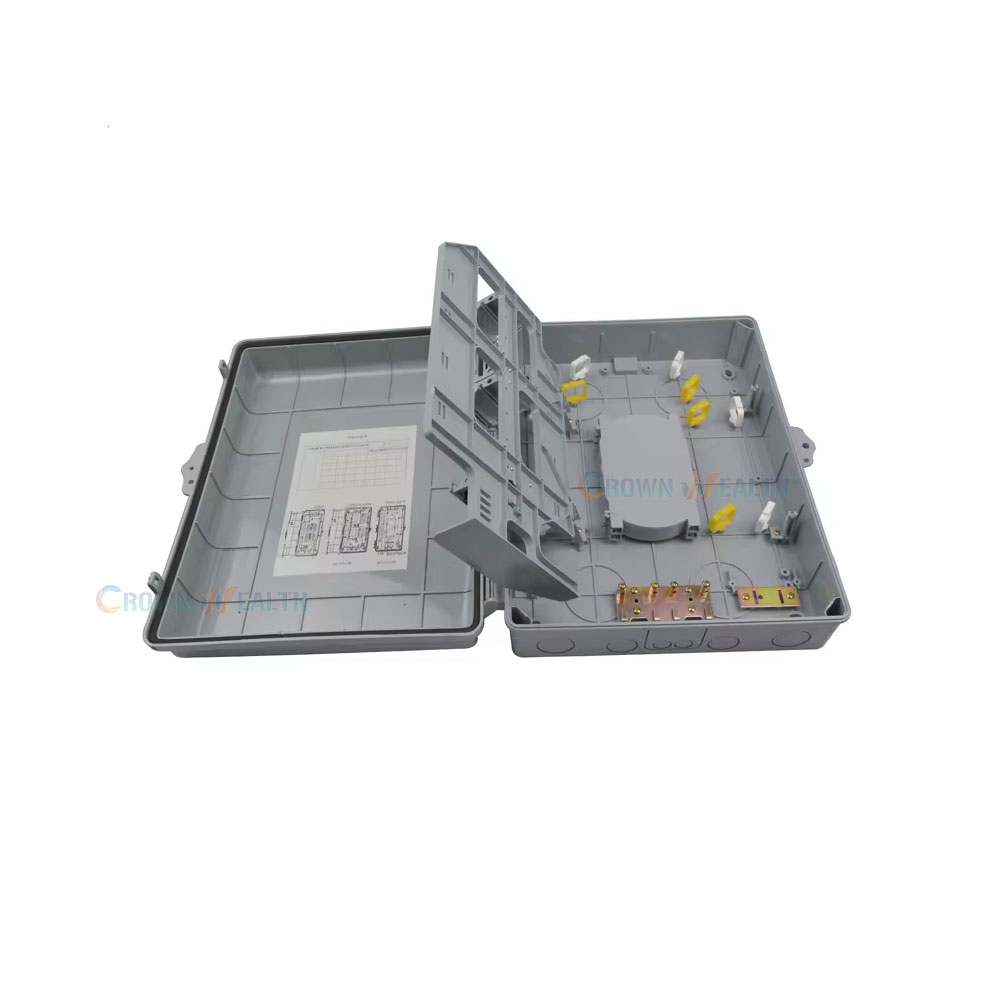

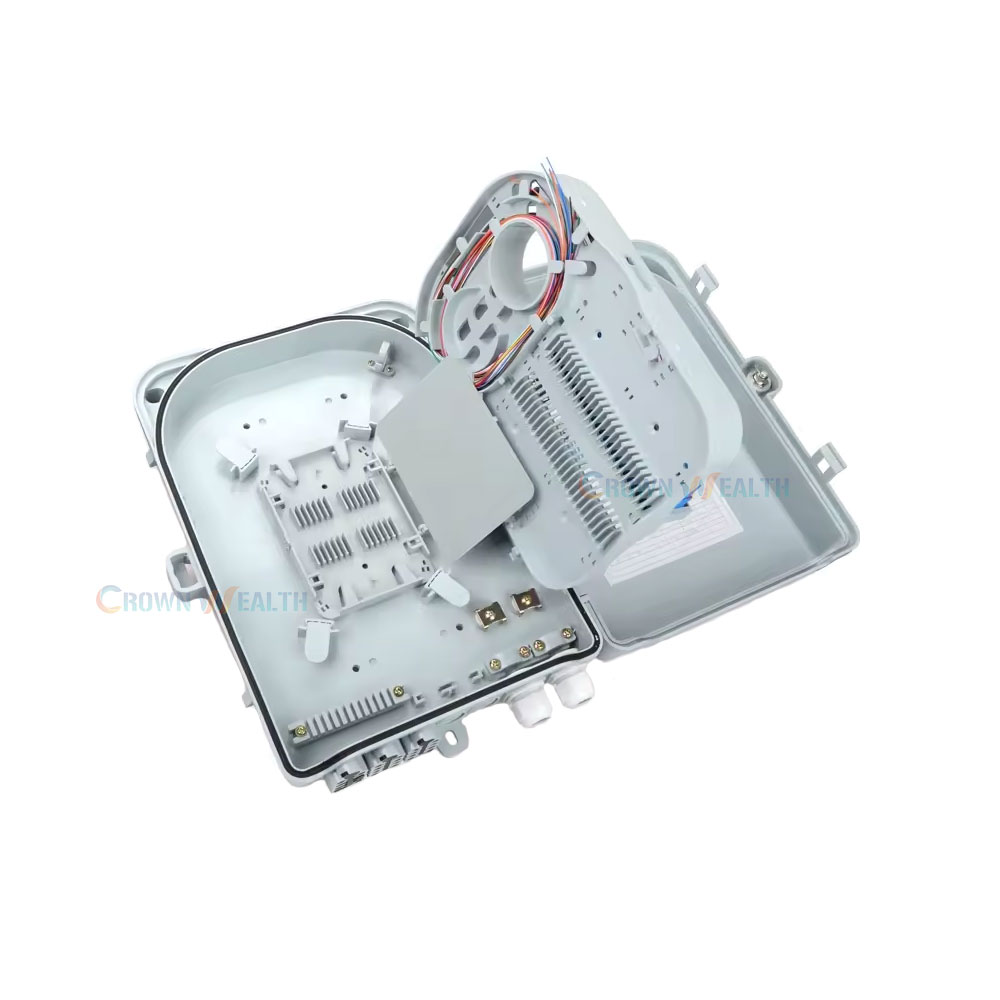

* Turn-over structure, layout is reasonable with splicing zone below and distribution zone above
– Lower layer for splitters and over length fiber storage.
– Upper layer for splicing, cross-connecting and fiber distribution.
* FC, SC, and LC adapters available, modular design, convenient for fixation and maintenance
* Fiber route reasonable, fiber bending radius at any place is greater than 30 mm
* The mark is clear on each fiber connection and distribution
* The door opening angle is greater than 120 degree for easy operation and maintenance
* The redundant fiber is wound and protected
* Lock provided for extra security
FTTH Fiber Optic Dividing Box Manufacturer in China
Hebei Crown Wealth Metal Products CO., LTD. is a high-tech enterprise integrating R&D, production, sales and service. Specializing in the manufacturing and sales services of products in the field of optical fiber communications. The company has successively passed the ISO9001 quality management system, ISO14001 environmental management system and occupational health and safety management system OHSAS18001 certification. And it has passed the strict testing of the Communication Product Protection Performance Supervision and Testing Center of the Ministry of Information Industry. We focus on providing innovative connection solutions, site solutions, and data center solutions to domestic and foreign operators, ICT equipment vendors, and network integrators and professional services.
Our company has strong technical force and advanced production equipment, mainly producing Fiber Optical Splice Closures, Fiber Optical junction boxes, Fiber Optical terminal boxes, Fiber Optical fiber optical splitting boxes, optical splitter fiber splitting, fiber optical distribution unit box, integrated distribution box, communication outdoor cabinet, integrated container rack, ODF distribution box, cable transfer box, network cabinet, fiber distribution , multimedia information boxes, electronic chassis cabinets, optical communication supporting products.
