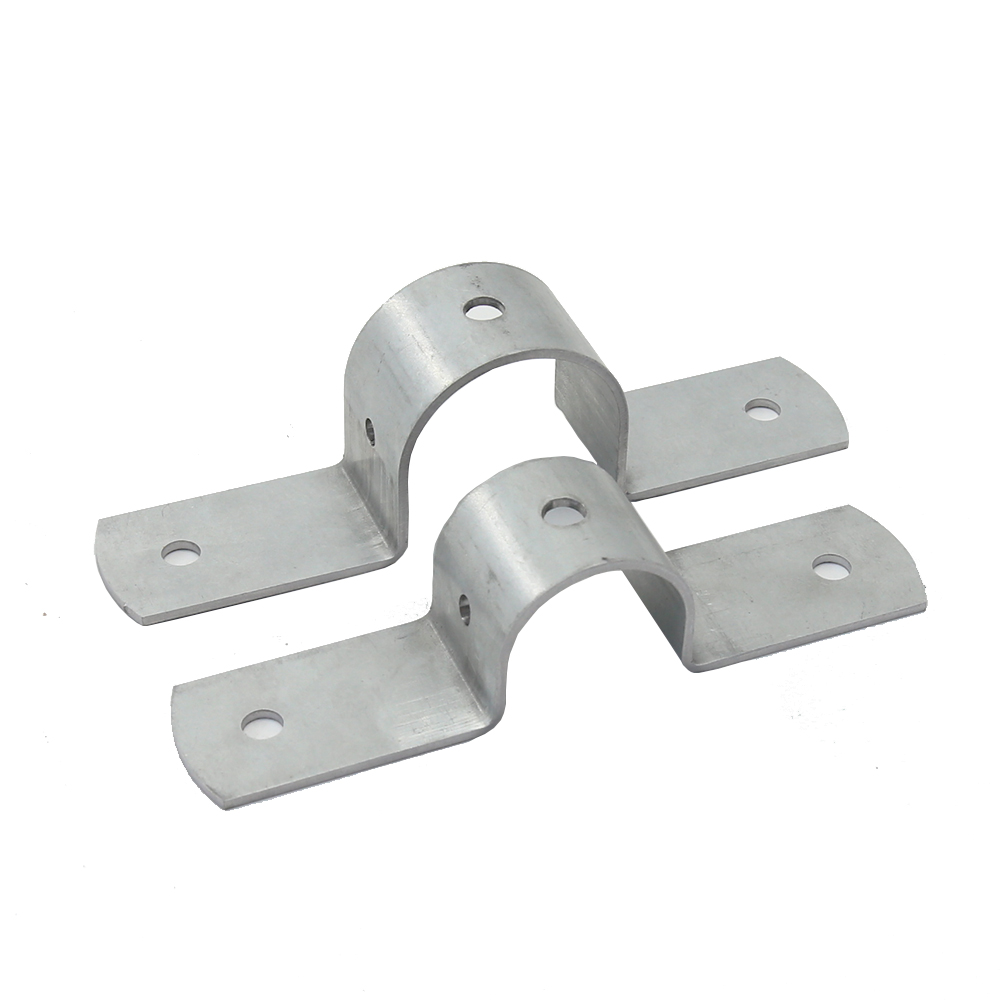

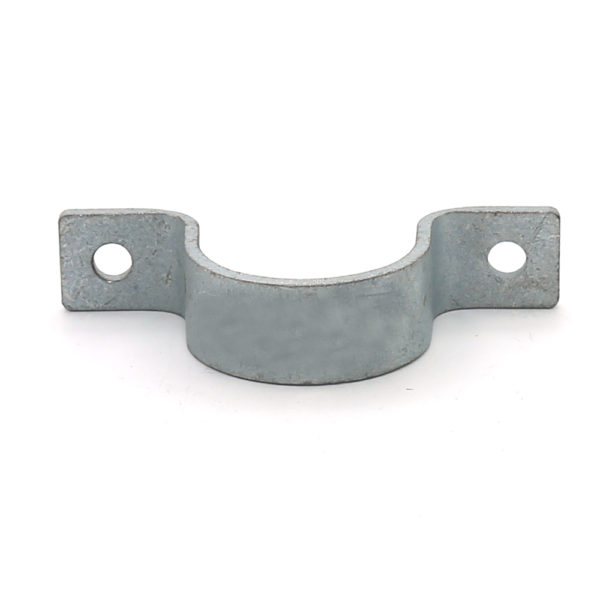

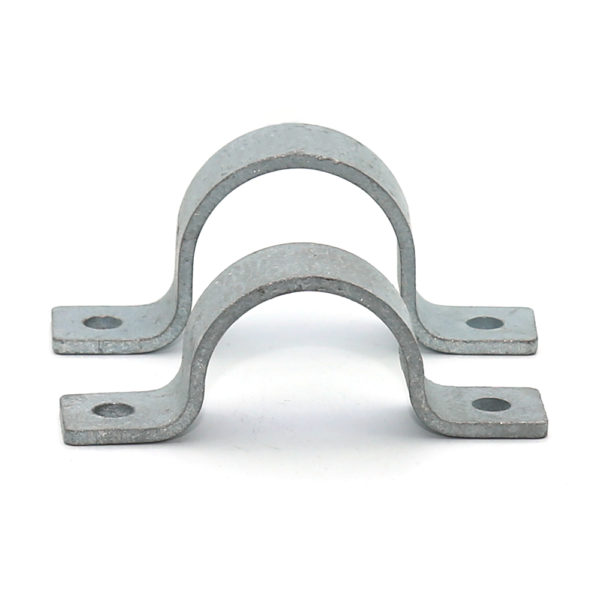

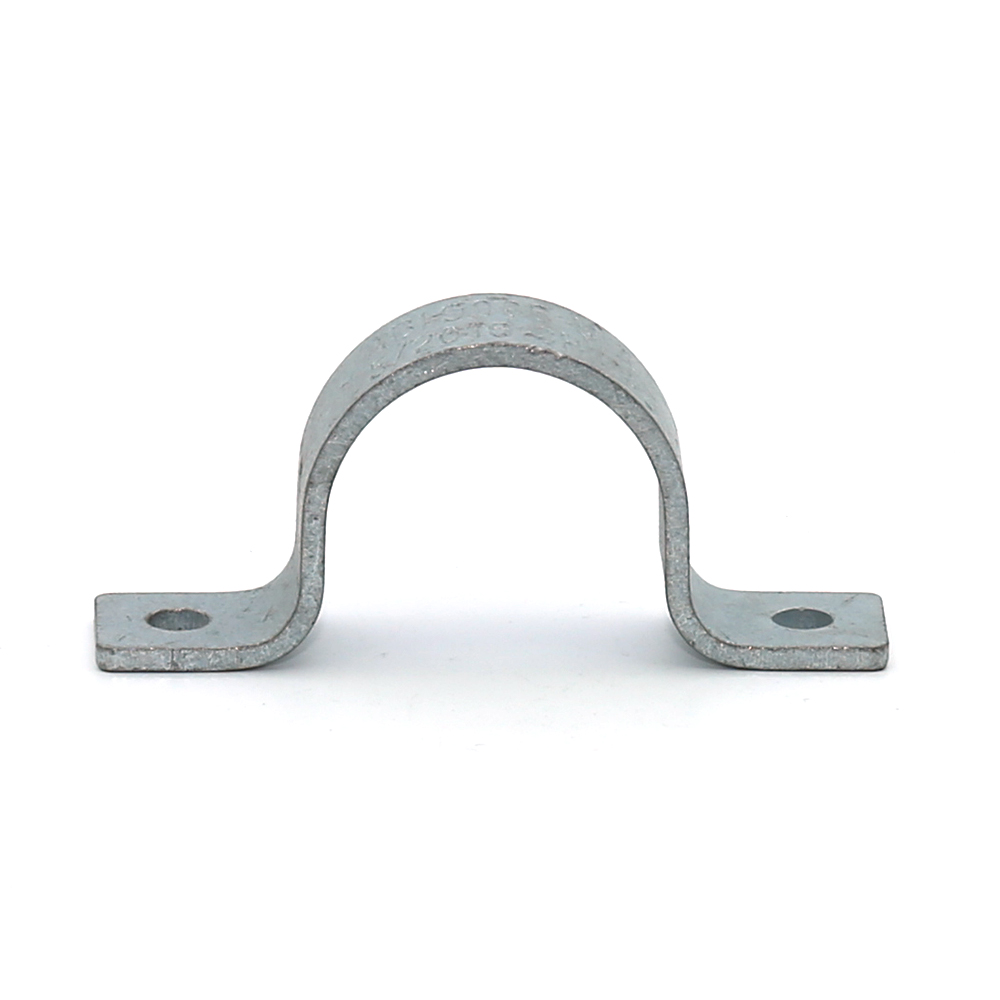

Galvanized Pipe Saddle Clamp
Quote Inquiry for Your Product
Being interested in this product? Feel free to contact us or send us inquiries.
Description
Galvanized Pipe Saddle Clamp, corrosion-resistant galvanized pipe fitting saddle clamp, saddle hose clips with two holes, are designed for pipe installation and management with galvanized steel processing. The galvanized steel pipe saddle clips attach and secure piping to studs or joists to reduce vibration noise. Available to suit common pipe sizes from 10mm up to 50mm.
Main Features:
- Widely used for fixing pipes and cables in all industries.
- Pipe Strap accommodates 10mm-50mm pipes with full/half types design.
- Materials: Bright Zinc Plated Steel
- High quality control syetem, low price, automatic progressive.
Why Choose Us?
- Corrosion resistant, made from durable and high quality steel.
- Secures piping to studs or joists to reduce vibration noise.
- Used to mount rigid or IMC conduits where higher load bearing supports are needed.
- Feature a reinforced rib for extra strength.
- Snap-On Installation. Two screw holes allow the installer to secure pipes on walls and ceilings.
Specifications:
| Part NO. | Material | Finish | Type | Size |
|---|---|---|---|---|
| CWSP-1 | Steel | Galvanized | Half/Full | 10mm |
| CWSG-2 | 12mm | |||
| CWSG-3 | 16mm | |||
| CWSG-4 | 20mm | |||
| CWSG-5 | 25mm | |||
| CWSG-6 | 32mm | |||
| CWSG-7 | 40mm | |||
| CWSG-8 | 50mm |
