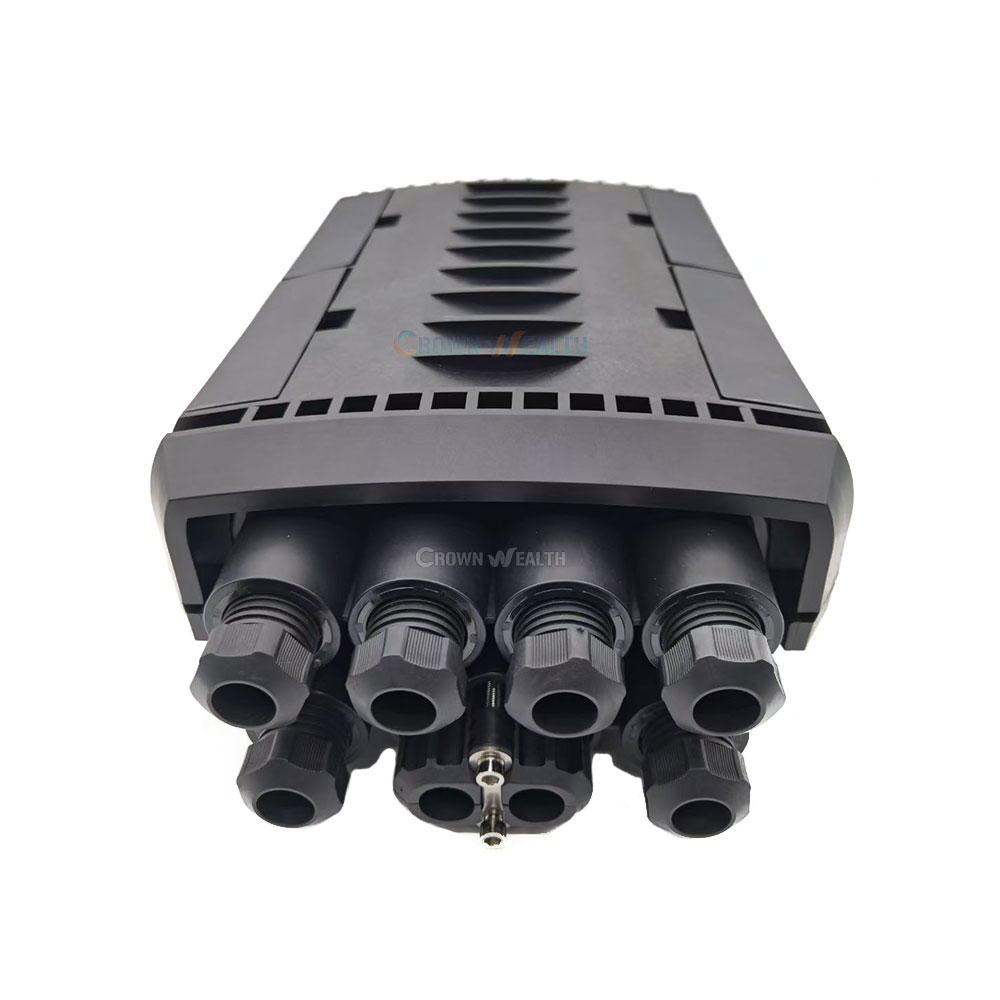

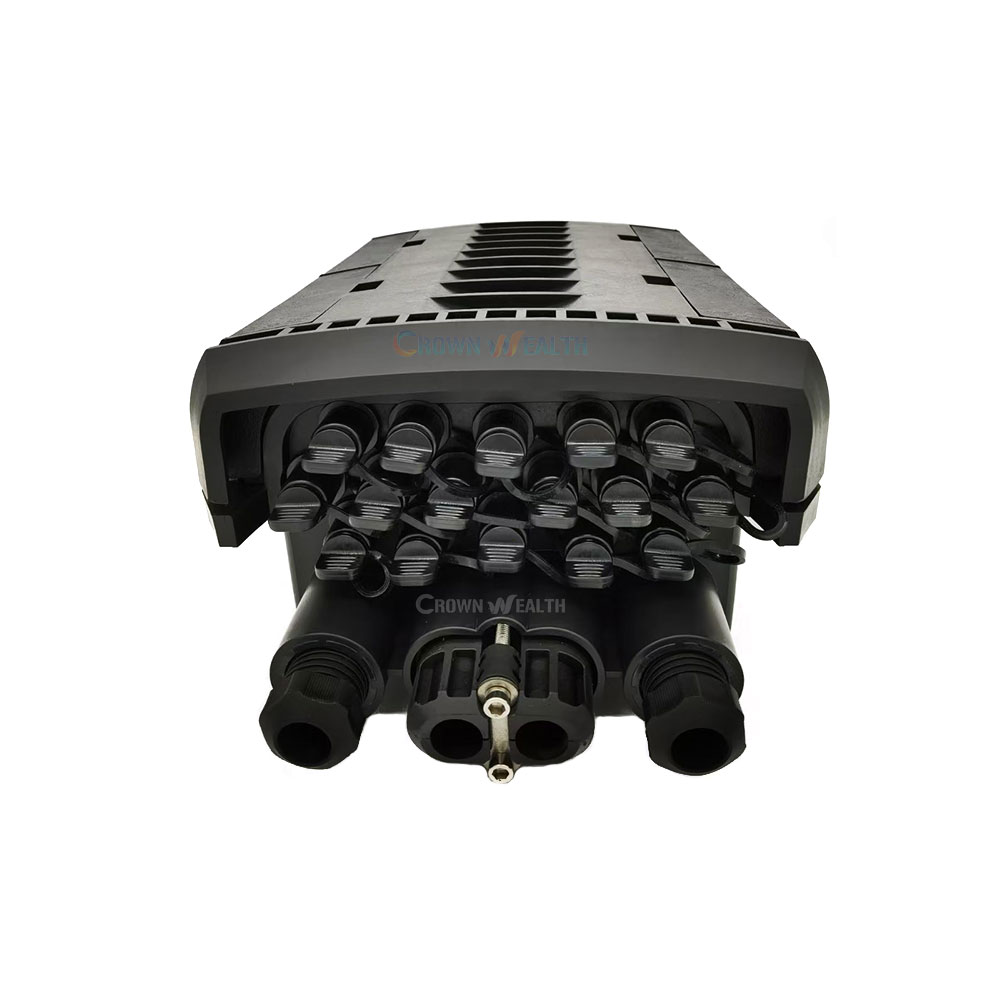

Mechanical Sealing In-line Fibre Optic Splice Closure
Mechanical sealing in-line type fibre optic splice closures are used to protect and house fragile fibre splices and joints between cables. They can also be used to house splitters and patch connectors of splitters with fibre optic cables. Mechanical Sealing In-line Type Splice Closures offers an as well as a strong and robust shell that is ideal for uses such as fibre to the home (FTTH) and Telecommunication networks. Hebei Crown Wealth offers a wide range of enclosures as well as full fibre optic accessories, for all your fibre solutions.
Quote Inquiry for Your Product
Being interested in this product? Feel free to contact us or send us inquiries.
Description
Fiber Optical Splice Closures Description
1. The injection molded from new material ABS, which has good resistance to alkali and salt corrosion, aging resistance, smooth and beautiful surface, solid mechanical structure, strong resistance to outdoor environment, and can withstand severe climate changes and harsh conditions.
2. Suitable for the protection of various fiber optical straight-through joints and branch joints, and can be installed underground, overhead, wall-mounted and pipe-laying.

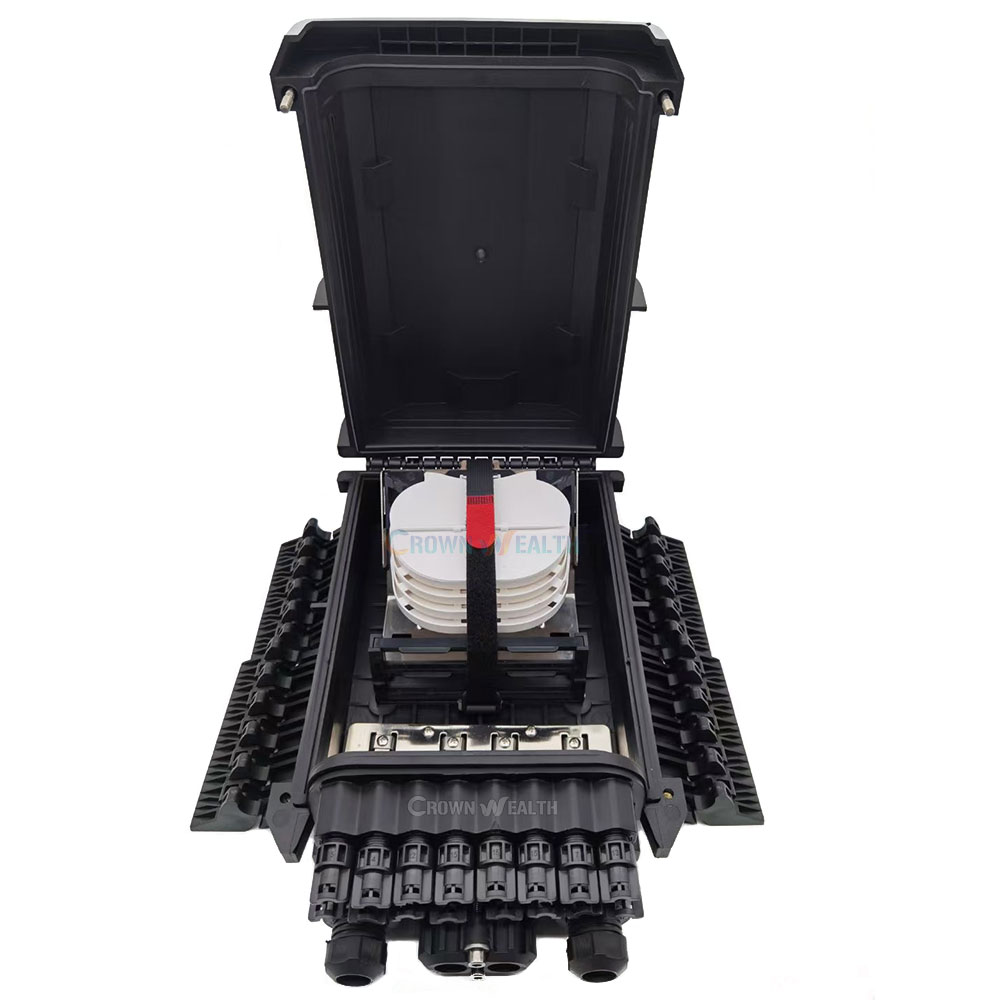

3. Hard-arc structure and large melting fiber disc design. Set up fiber optical and reinforcing core fixing devices, set up repeat opening devices. Suitable for ribbon fiber optical and ordinary fiber optical. The splicing disk in the box can be turned over like a book, leaving enough curvature radius and space for fiber coiling. Each fiber optical and each optical fiber can be constructed separately.
4. Sealing performance: After the box is closed, inflate it inward. This product is suitable for the interface equipment at the backbone fiber optical and wiring fiber optical nodes in the optical fiber access network. It can realize the functions of optical fiber splicing terminal, storage and scheduling. It is also suitable for power control wiring boxes, fiber optic LANs, regional networks and fiber optic access networks, etc.
5. Small size, large capacity and easy maintenance. Provide reliable fiber optical fixation and fiber optical reinforced core grounding protection devices.
* Fully customisable to requirement
Fiber Optical Splice Closures Features
■ Mechanical Sealing

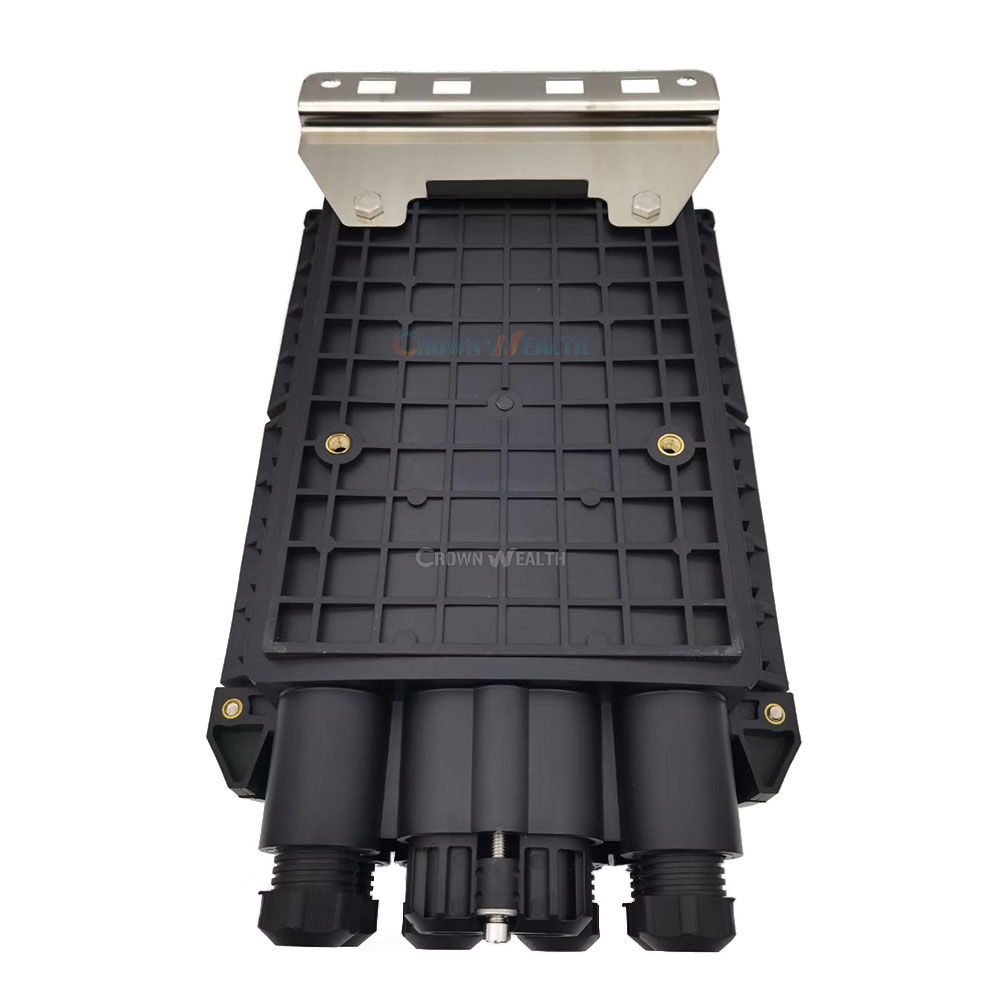

■ Aerial hanging, burial or wall-mounting & pipeline mounting
■ Insulation resistance: Insulation resistance between metal components and ground >2x104MQ.
■ Withstand Voltage: There will be no breakdown or arcing between the metal component and the ground under the action of 15kV (DC)/1min.
■ Radius of curvature of light coiling: >40mm, no additional attenuation in the optical fiber splice tray.
■ Tension: Can withstand axial tensile force >1000N.
■ Full fiber path design, complete accessories. Flame retardant, anti-corrosion, earthquake-resistant and waterproof.
■ Life Span: more than 25 years. It has good sealing performance and is not afraid of wind and rain. No matter what the environment, you can use it safely and worry-free.
Parameters
| Parts No. | Description | Material | Max. Capacity | Application |
| CW-MSCI | Mechanical Sealing In-line Type Fibre Optic Splice Closure | ABS/PPR/PC | 288(Cores) | Aerial hanging, Duct, Manhole, Wall, Direct burying (Horizontal) |
Application
○ Telecommunication networks
○ LAN, MAN and WAN applications
○ CATV – Cable television
○ Fibre to the Home (FTTH)
○ FTTH, FTTB, FTTP, FTTX
Installation
1. Remove the fiber optical outer sheath (if any, please remove the shielding and armoring), and then remove each wrapping layer until the loose tube is exposed. The preparation length is 3m.
2. Use detergent to clean the loose tube and reinforced core sheath, and remove excess filling tube.
