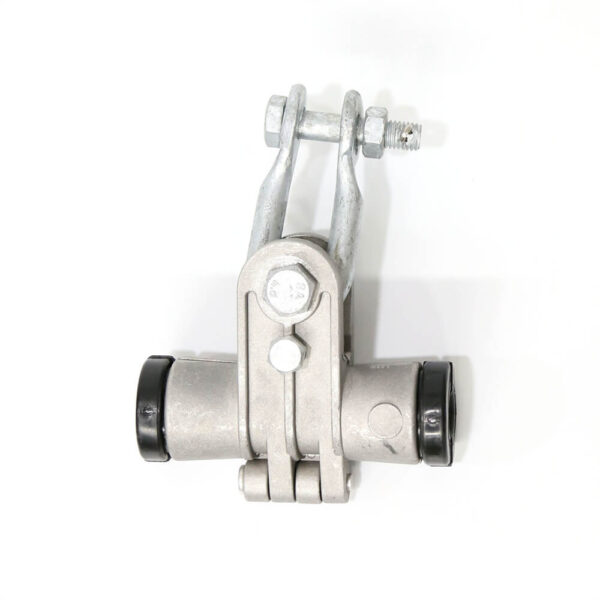

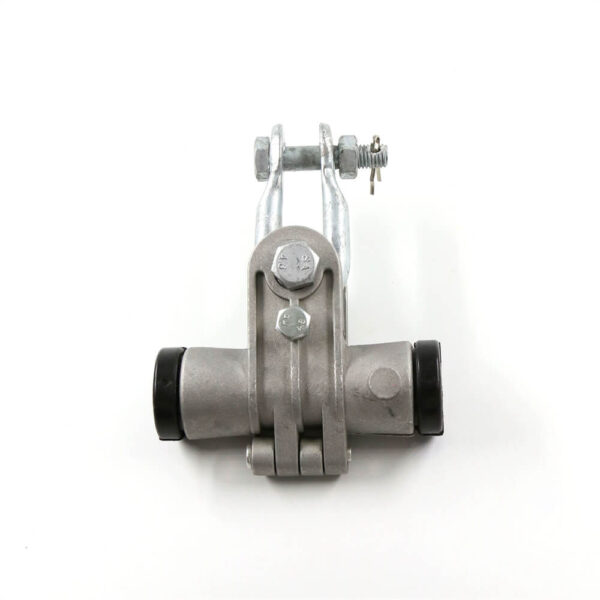

Monolayer Preformed Tangent Clamp for ADSS
Quote Inquiry for Your Product
Being interested in this product? Feel free to contact us or send us inquiries.
Description
Preformed suspension clamps for ADSS cable are used for the suspension and support connection of optical cables on linear poles and towers. Used well for protection of the optical cable, without concentrated stress. And avoids the abnormal situation of the optical cable having an excessively small bending radius and stress concentration.
The gripping force of the clamp is greater than 10%-20% of the rated tensile strength of the optical cable. The installation is convenient. Has excellent fatigue resistance, and plays an auxiliary shock absorption role for the ADSS optical cable.
Features:
- Materials are metal and rubber, aluminium clad steel wire or galvanized steel wire.

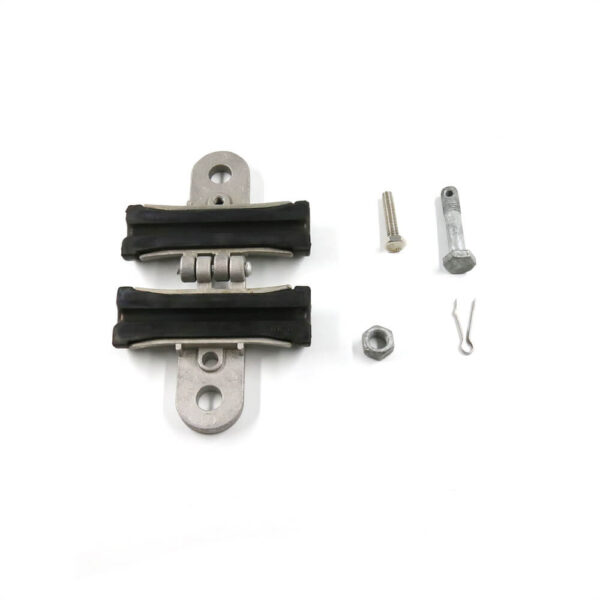

- Includes: armor rods, rubber clamp piece, cover shell, U-shaped hanging loop, right-angle hanging loop, bolt, nut, etc.
- Poles/towers with span of less than 200m, and line angle of less than 15°
- Grip strengthis greater than 10%-20% of the rated tensile strength of the optical cable.
- Installation easyand aging resistance.
- Packing with carton box or wooden pallet.
Specification table:
|
Production Name |
Code |
Dia. of cable(mm) |
Length of Rods(mm) |
Weight(kg) |
Span(m) |
|
Monolayer Preformed Tangent Clamp for ADSS |
CW-TCAD-020 1010 |
9.7-10.1 |
800 |
0.3 |
200 |
|
CW-TCAD-020 1060 |
10.2-10.6 |
800 |
0.3 |
200 |
|
|
CW-TCAD-020 1110 |
10.7-11.1 |
800 |
0.3 |
200 |
|
|
CW-TCAD-020 1160 |
11.2-11.6 |
800 |
0.33 |
200 |
|
|
CW-TCAD-020 1170 |
11.7-11.7 |
800 |
0.33 |
200 |
|
|
CW-TCAD-020 1200 |
11.8-12.0 |
860 |
0.36 |
200 |
|
|
CW-TCAD-020 1270 |
12.1-12.7 |
860 |
0.36 |
200 |
|
|
CW-TCAD-020 1290 |
12.8-12.9 |
900 |
0.41 |
200 |
|
|
CW-TCAD-020 1360 |
13.0-13.6 |
900 |
0.41 |
200 |
|
|
CW-TCAD-020 1410 |
13.7-14.1 |
900 |
0.41 |
200 |
|
|
CW-TCAD-020 1430 |
14.2-14.3 |
1000 |
0.5 |
200 |
|
|
CW-TCAD-020 1450 |
14.4-14.5 |
1000 |
0.5 |
200 |
|
|
CW-TCAD-020 1510 |
14.6-15.1 |
1000 |
0.5 |
200 |
