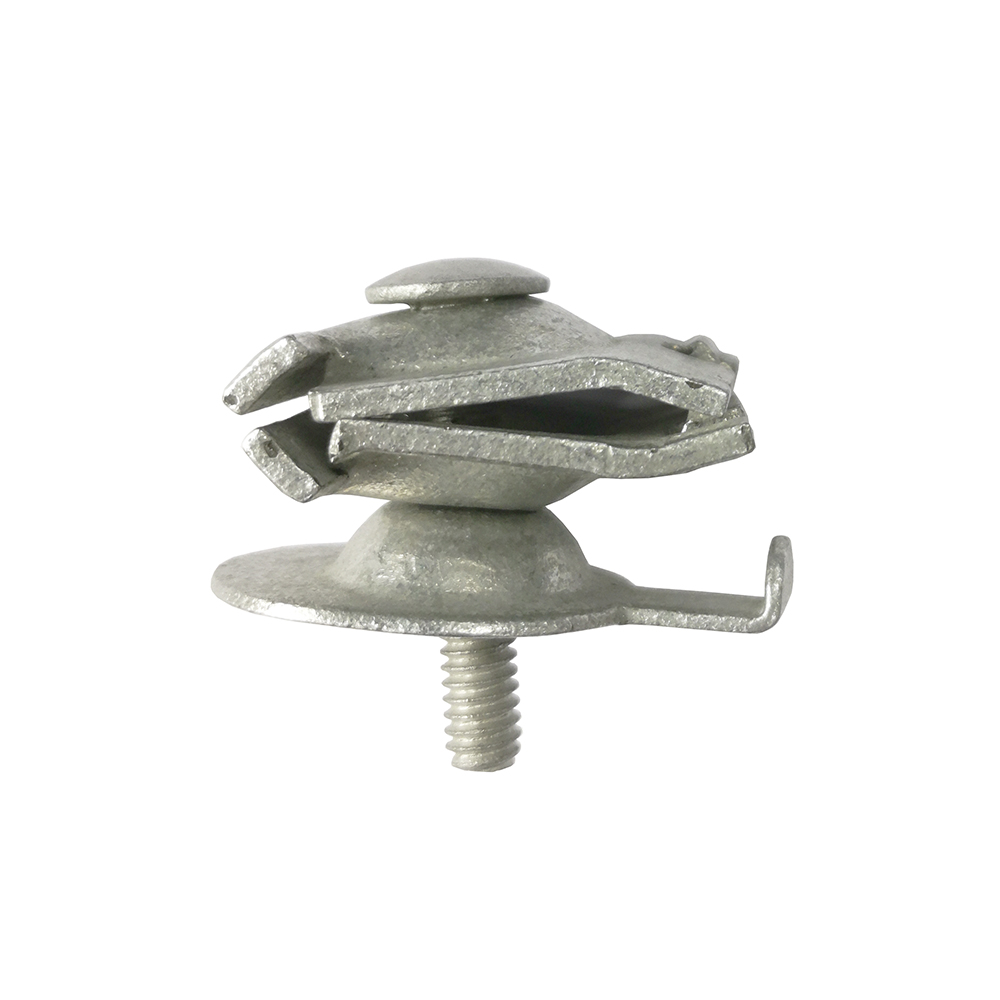

Multidrop Span Clamp
description:
Multi-drop Span Clamp used to attach multiple drop cables at one location using drop wire clamps or direct attacment. Bolt staked to prevent loss of nut during installation. Multi-drop span clamp accepts 1/4″ strand.
Quote Inquiry for Your Product
Being interested in this product? Feel free to contact us or send us inquiries.
Description
Multi-drop Span Clamp used to attach multiple drop cables at one location using drop wire clamps or direct attacment. Bolt staked to prevent loss of nut during installation. Multi-drop span clamp accepts 1/4″ strand.
| Parts No. | Description | Material | Strand size |
| CW-MDSC | Multi-drop span clamp | Steel galvanized | 1/4″ |
Main features:
- Used as an attachment to strand for accepting the bail of drop wire clamps or for wrapping the support wire of drop cable.
- Jaws provide a tensile strength that exceeds 50,000 P.S.I..
- The clamp is comprised of two steel jaws, a retaining washer, carriage bolt, hex nut, and lock washer.
- The jaws are stamped from AISI 1018 tempered Steel.
- The retaining washer is formed from 1018 Steel.
- The bolt and nut are formed from Grade 2 Steel.
- All components are mechanically galvanized to meet ASTM Specification B695.
- Attaches to strand ranging in size from 1/4″ (6.6M) to 7/16″ (16M).
