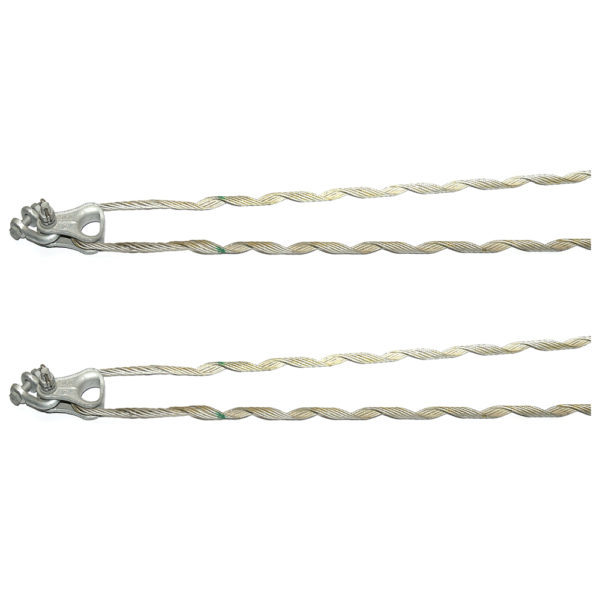

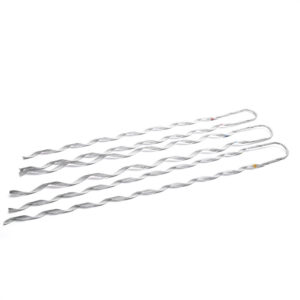

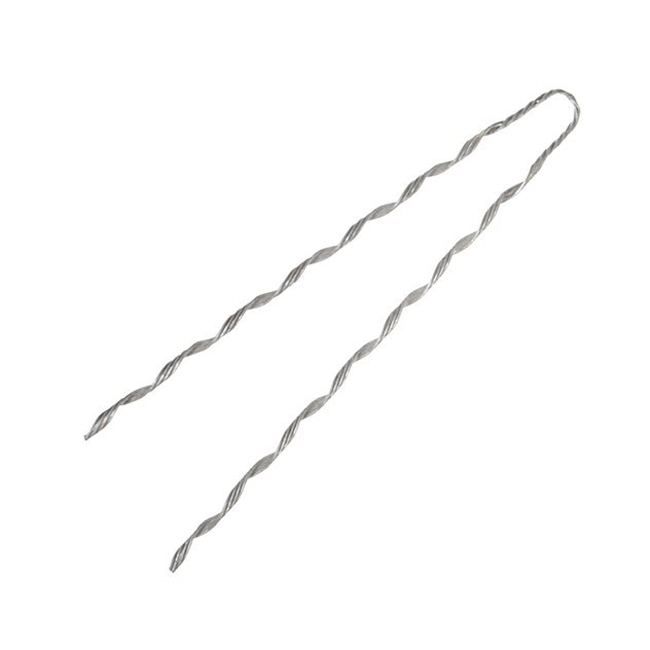

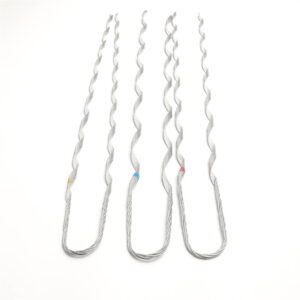

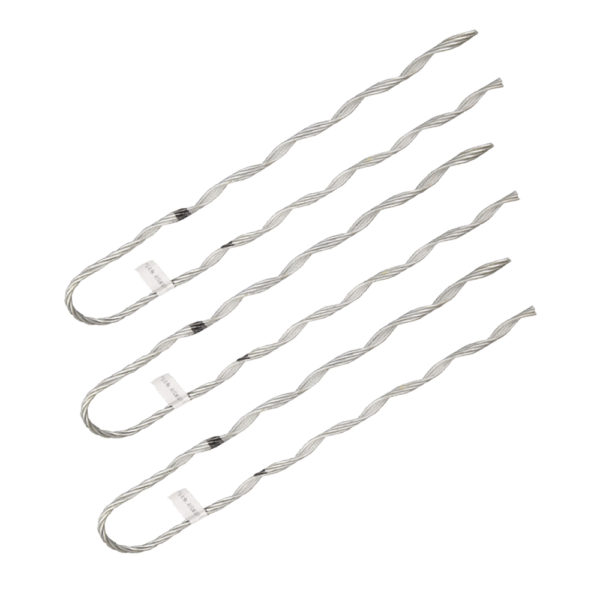

Preformed Dead End Tension Guy Grips

Description

Dead-end Guy Grips are designed for use on Transmission, Antenna, Communications, and other types of guyed structures that require use of large guy strand.

As a dielectric Dead-end designed to terminate short span, light ADSS fiber optic cables, performed dead-end guy grip is usually used in low voltage environments. The product effectively transfers the low axial load on the cable at the end of the Dead-end legs to low uniform radial compression near the Dead-end loop.

Made from material which is compatible with the strand they are designed to be used with except where noted otherwise.

Dead-end for Short Span ADSS Cable

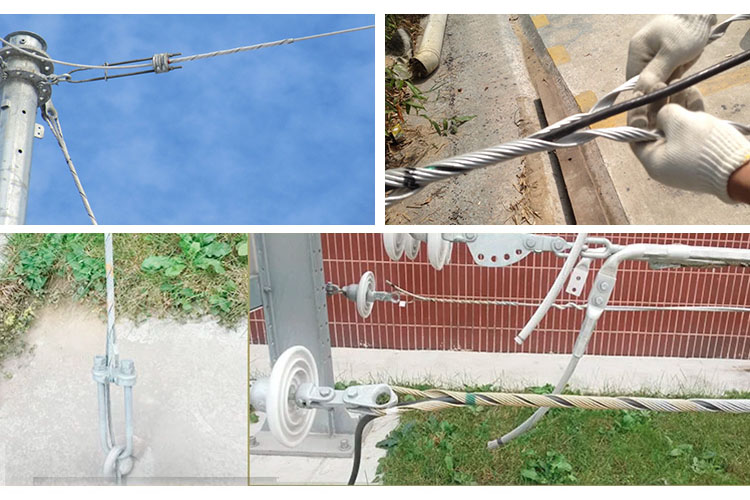

ADSS Optical cable strain clamp with small tension adopts aluminum clad steel wire or galvanized steel wire, which is mainly used in optical cable connection of strain tower, corner tower, middle connecting tower and terminal tower with distance not over 100m.

• Intended for single use but may be reapplied twice for retensioning within 90 days on initial installation.
• Rated at 100% of the strand’s published rated breaking strength.
• Intended for single use but can be reinstalled twice within 90 days.

Advantage:

• Perfect corrosion resistance:
• Easy installation: One man does not need any special tools to complete the installation.
• Compared with the traditional fittings with uniform force, no stress concentration and good vibration performance.

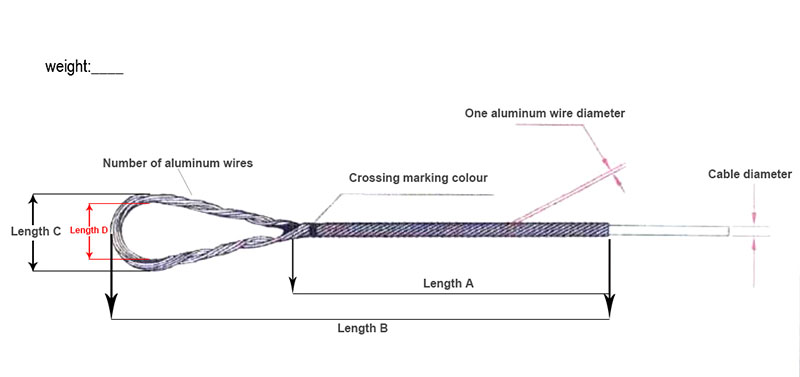

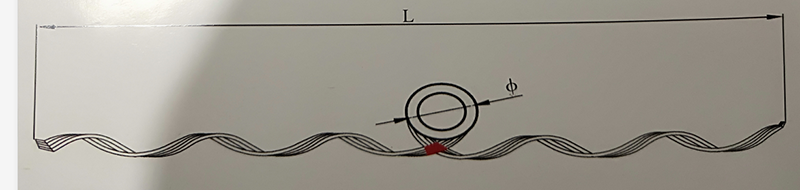

Specifications:

\
