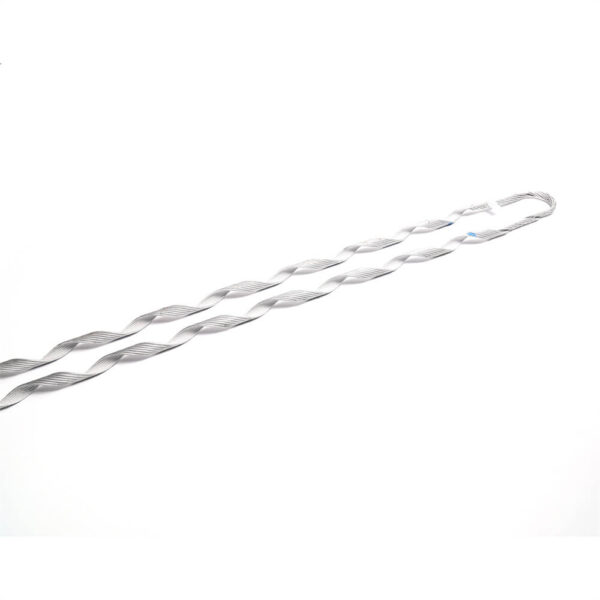

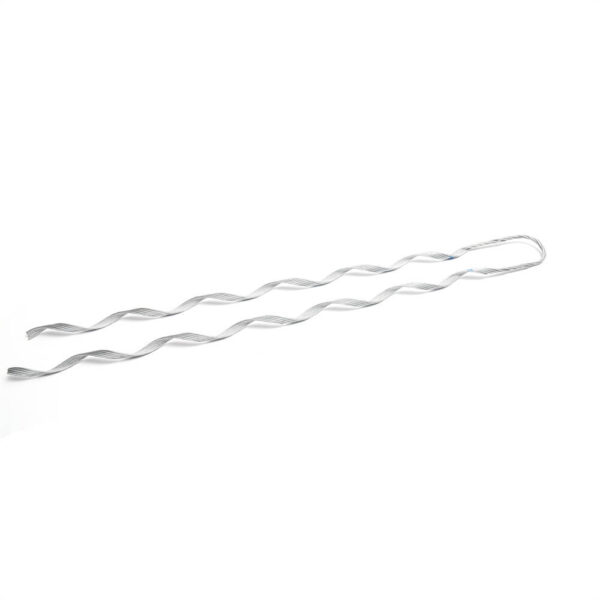

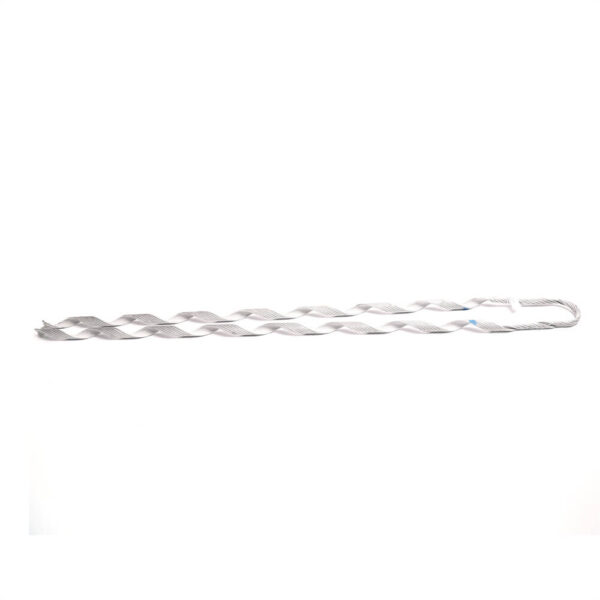

Preformed Tension Clamp for ADSS
Name: Preformed tension clamp, guy grip preformed, preformed dead end fitting clamp for ADSS, ADSS Tension Clamp
Quote Inquiry for Your Product
Being interested in this product? Feel free to contact us or send us inquiries.
Description
Preformed tension clamp is used in the installation of the exposed conductor, in the electric network transmission and distribution, and overhead insulated conductor. The reliability and economic advantage is better than the present bolt type and hydraulic compression type tension set which now is being widely used in the line.
Support full tension strength for ADSS cable, connect the ADSS cable to the pole tower, corner pole tower and terminal pole tower with larger differences in terms of height.
Features:
- Materials are aluminium clad steel wire or galvanized steel wire.
- Different span distance:0-100m, 101-200m, 201-300m, 301-400m, etc.
- The preformed guy grip for span more than 200m, is composed of inner rods and outer rods.

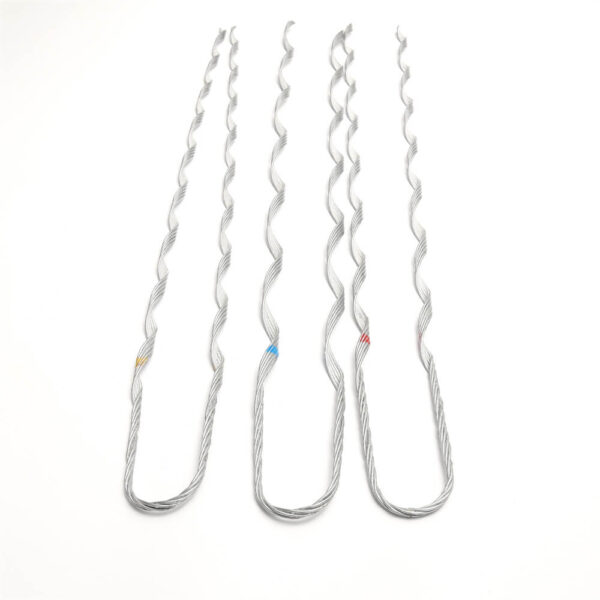

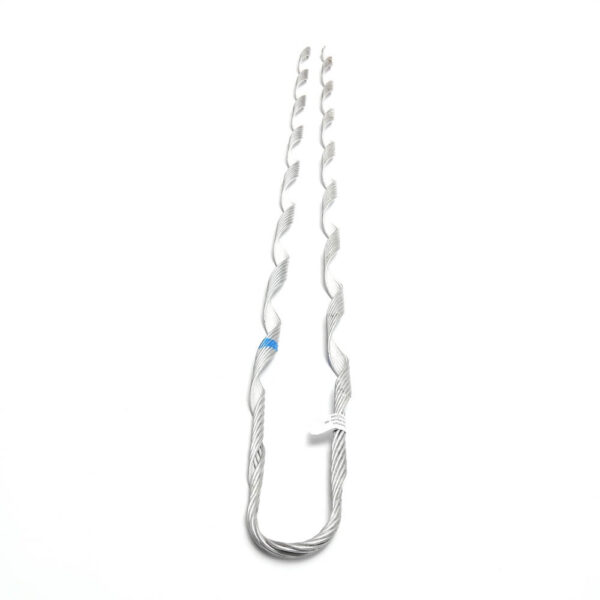

- Marked with various code colour: yellow, red, green, blue, black, orange.
- Grip strength can be over 95% RTS or customization.
- Installation with other hardware: thimble, U-shackle, extension link, entensive-link, straps, etc.
- Saving metal material and reduce the cost of line.
- Aging resistance.
- Packing with carton box or wooden pallet.
Specification table:
|
Code |
Rotation |
Dia.Cable/mm |
№ of Rods |
Dia.of Rods/mm |
Length/mm |
Weight/kg |
Code Colour |
|
CW-GUYTA-010 0940 |
Left/Right |
9.0-9.4 |
5 |
2.5 |
780 |
0.31 |
Yellow |
|
CW-GUYTA-010 1040 |
9.5-10.4 |
5 |
2.5 |
830 |
0.4 |
Red |
|
|
CW-GUYTA-010 1150 |
10.5-11.5 |
6 |
2.5 |
880 |
0.43 |
Blue |
|
|
CW-GUYTA-010 1240 |
11.6-12.4 |
6 |
2.5 |
910 |
0.44 |
Green |
|
|
CW-GUYTA-010 1340 |
12.5-13.4 |
6 |
2.8 |
980 |
0.59 |
Orange |
|
|
CW-GUYTA-010 1490 |
13.5-14.9 |
7 |
2.8 |
1020 |
0.72 |
Black |
|
|
CW-GUYTA-010 1590 |
15.0-15.9 |
7 |
2.8 |
1060 |
0.74 |
Yellow |
|
|
CW-GUYTA-010 1690 |
16.0-16.9 |
7 |
3 |
1140 |
0.92 |
Red |
|
Code |
Dia.Cable/mm |
Holding Strength |
Available Span（m） |
Length of Outer(mm) |
Length of Inner |
Weight |
Code Colour |
|
CW-GUYTA-020 0940 |
8.6-9.4 |
20 |
101-200 |
800 |
1100 |
0.88 |
Yellow |
|
CW-GUYTA-020 1010 |
9.5-10.1 |
20 |
101-200 |
800 |
1100 |
1.02 |
Red |
|
CW-GUYTA-020 1070 |
10.2-10.7 |
20 |
101-200 |
800 |
1100 |
1.06 |
Blue |
|
CW-GUYTA-020 1140 |
10.8-11.4 |
20 |
101-200 |
800 |
1100 |
1.08 |
Green |
|
CW-GUYTA-020 1220 |
11.5-12.2 |
20 |
101-200 |
800 |
1100 |
1.35 |
Orange |
|
CW-GUYTA-020 1290 |
12.3-12.9 |
20 |
101-200 |
800 |
1100 |
1.38 |
Black |
|
CW-GUYTA-020 1370 |
13.0-13.7 |
20 |
101-200 |
800 |
1100 |
1.54 |
Yellow |
|
CW-GUYTA-020 1460 |
13.8-14.6 |
20 |
101-200 |
800 |
1100 |
1.57 |
Red |
|
CW-GUYTA-020 1550 |
14.7-15.5 |
20 |
101-200 |
800 |
1100 |
1.6 |
Blue |
|
CW-GUYTA-030 0940 |
8.6-9.4 |
30 |
201-300 |
1100 |
1400 |
1.17 |
Green |
|
CW-GUYTA-030 1010 |
9.5-10.1 |
30 |
201-300 |
1100 |
1400 |
1.35 |
Orange |
|
CW-GUYTA-030 1070 |
10.2-10.7 |
30 |
201-300 |
1100 |
1400 |
1.4 |
Black |
|
CW-GUYTA-030 1140 |
10.8-11.4 |
30 |
201-300 |
1100 |
1400 |
1.43 |
Yellow |
|
CW-GUYTA-030 1220 |
11.5-12.2 |
30 |
201-300 |
1100 |
1400 |
1.8 |
Red |
|
CW-GUYTA-030 1290 |
12.3-12.9 |
30 |
201-300 |
1100 |
1400 |
1.84 |
Blue |
|
CW-GUYTA-030 1370 |
13.0-13.7 |
30 |
201-300 |
1100 |
1400 |
2.04 |
Green |
|
CW-GUYTA-030 1460 |
13.8-14.6 |
30 |
201-300 |
1100 |
1400 |
2.08 |
Orange |
|
CW-GUYTA-030 1550 |
14.7-15.5 |
30 |
201-300 |
1100 |
1400 |
2.12 |
Black |
|
CW-GUYTA-040 1220 |
11.5-12.2 |
40 |
301-400 |
1260 |
1800 |
2.14 |
Yellow |
|
CW-GUYTA-040 1290 |
12.3-12.9 |
40 |
301-400 |
1260 |
1800 |
2.19 |
Red |
|
CW-GUYTA-040 1370 |
13.0-13.7 |
40 |
301-400 |
1260 |
1800 |
2.44 |
Blue |
|
CW-GUYTA-040 1460 |
13.8-14.6 |
40 |
301-400 |
1260 |
1800 |
2.49 |
Green |
|
CW-GUYTA-040 1550 |
14.7-15.5 |
40 |
301-400 |
1260 |
1800 |
2.54 |
Orange |
|
CW-GUYTA-040 1650 |
15.6-16.5 |
40 |
301-400 |
1260 |
1800 |
2.92 |
Black |
