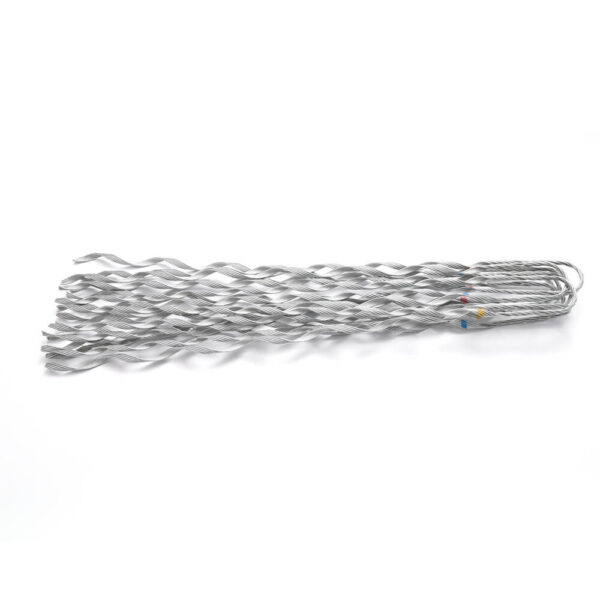

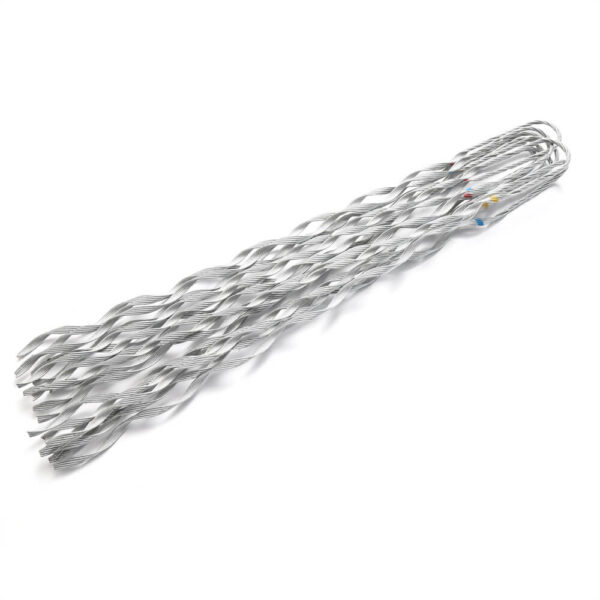

Preformed Tension Clamp for OPGW
Name: Preformed tension clamp, guy grip preformed, preformed dead end fitting clamp for OPGW, OPGW cable Tension Clamp
Description
Preformed tension clamp is used in the installation of the exposed conductor, in the electric network transmission and distribution, and overhead insulated conductor. The reliability and economic advantage is better than the present bolt type and hydraulic compression type tension set which now is being widely used in the line.
Support full tension strength for OPGW cable, connect the OPGW cable to the pole tower, corner pole tower and terminal pole tower with larger differences in terms of height.
Features:
- Materials are aluminium clad steel wire or galvanized steel wire.

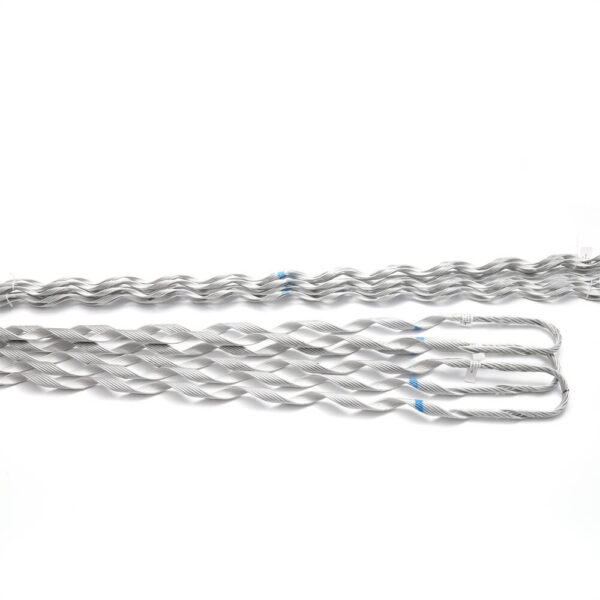

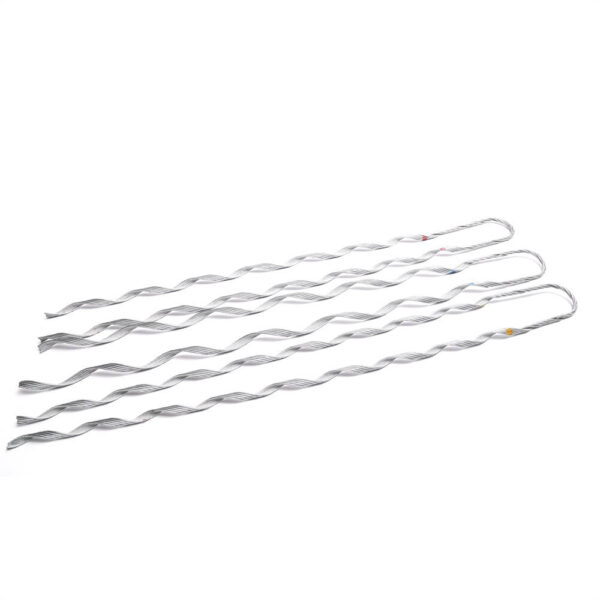

- The preformed tension clamp for OPGW is composed of inner armor rods and outer armor rods.
- Marked with various code colour: yellow, red, green, blue, black, orange.
- Grip strength can be over 95% RTS or customization.
- Installation with other hardware: thimble, U-shackle, extension link, entensive-link, straps, etc.
- Saving metal material and reduce the cost of line.
- Aging resistance.
- Packing with carton box or wooden pallet.
Specification table:
Code |
Dia.Cable/mm |
Length of Inner |
Length of Outer |
Weight |
Failing Load(KN) |
Code Colour |
|
MIN(mm) |
MAX(mm) |
||||||
CW-GUYTO-0780 |
7.2 |
7.8 |
1400 |
1000 |
1.1 |
70 |
Yellow |
CW-GUYTO-0880 |
7.9 |
8.8 |
1400 |
1000 |
1.15 |
70 |
Red |
CW-GUYTO-1010 |
8.9 |
10.1 |
1400 |
1000 |
1.28 |
70 |
Blue |
CW-GUYTO-1140 |
10.2 |
11.4 |
1540 |
1120 |
1.7 |
90 |
Green |
CW-GUYTO-1280 |
11.5 |
12.8 |
1620 |
1200 |
2.41 |
112 |
Orange |
CW-GUYTO-1410 |
12.9 |
14.1 |
1660 |
1240 |
2.55 |
112 |
Black |
CW-GUYTO-1550 |
14.2 |
15.5 |
1840 |
1360 |
2.89 |
112 |
Yellow |
CW-GUYTO-1730 |
15.6 |
17.3 |
2000 |
1480 |
3.61 |
112 |
Red |
CW-GUYTO-1920 |
17.4 |
19.2 |
2400 |
1800 |
4.68 |
112 |
Blue |
CW-GUYTO-2110 |
19.3 |
21.1 |
2600 |
2000 |
5.14 |
112 |
Green |
