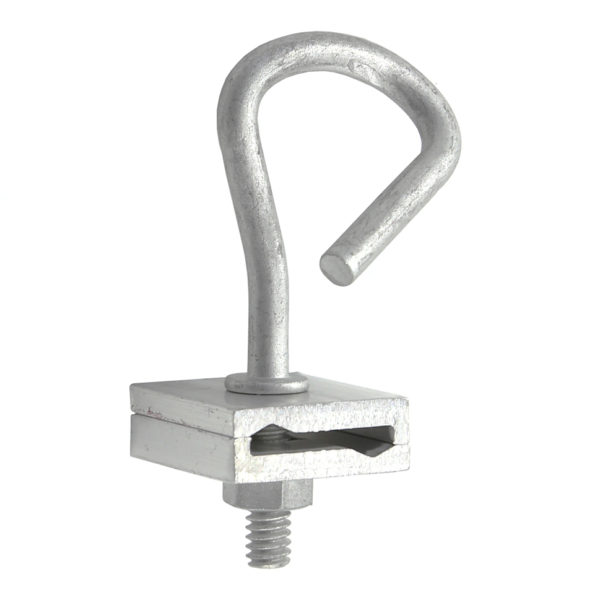

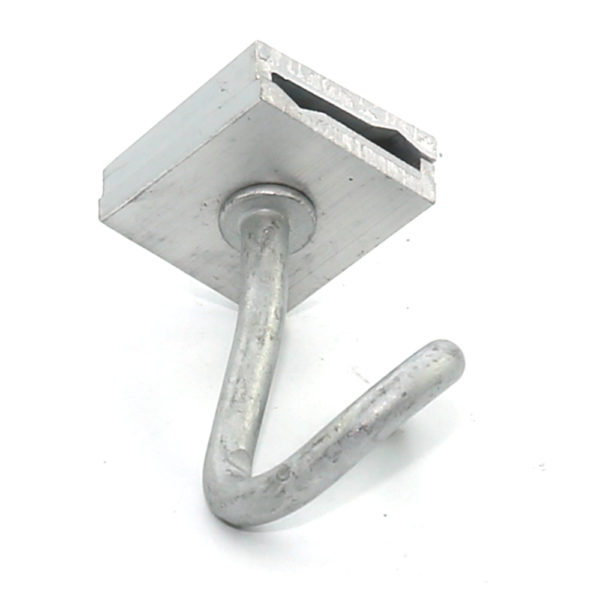

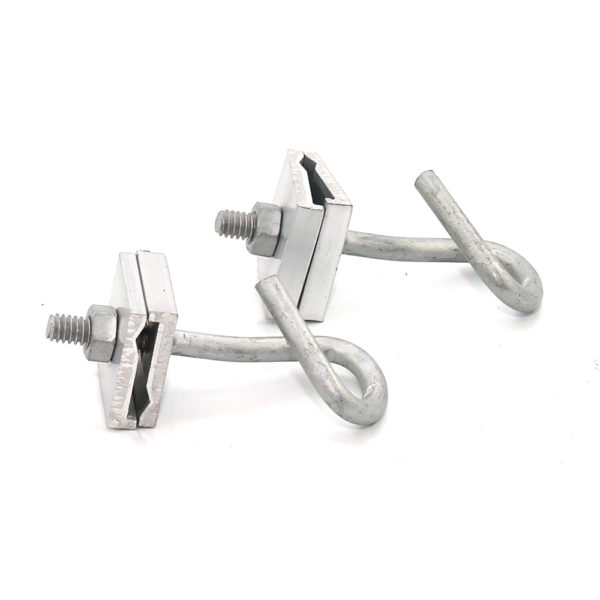

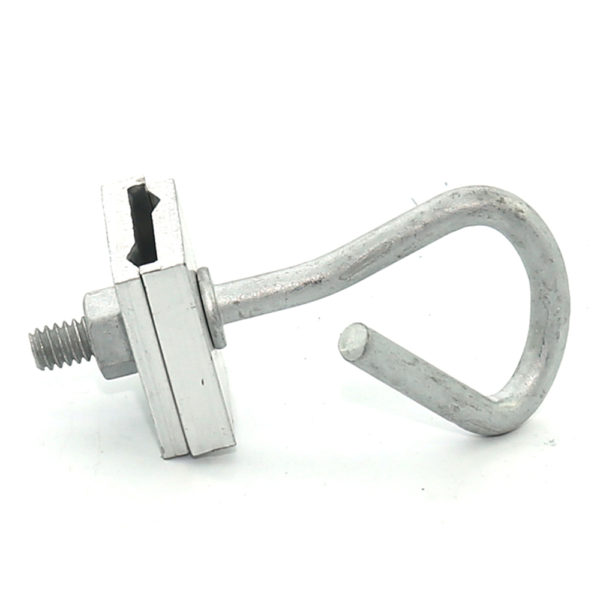

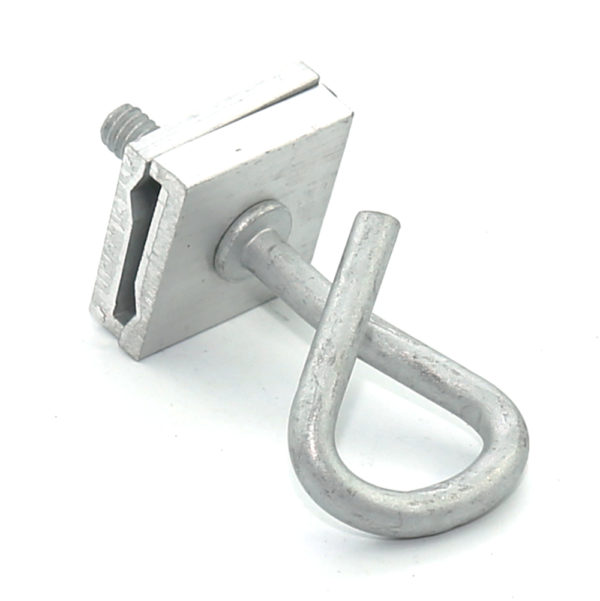

Q Span Clamp
Q Span Clamp consists of high strength Aluminum jaws and a specially shaped bolt with a square nut.
Material: Jaws are extruded from 6063-T6 aluminum.
Bolt and nut are formed from Grade 2 steel.
Quote Inquiry for Your Product
Being interested in this product? Feel free to contact us or send us inquiries.
Description
Q Span Clamp is designed for 1/4″ to 7/16″ messenger strand, used for mid-span drop wire take-offs, will hold cable away from obstacles in the line of aerial construction.
Q Span clamp is used in drop cable installations as an attachment to the strand for either accepting the bail of drop wire clamps or for wrapping the support wire of drop cable. It can provide drop wire takeoffs along the span and relieve tension on the drop wire at this point.
Main Features:
- Used for mid-span drop wire take-offs
- Will hold cable away from obstacles in the line of aerial construction

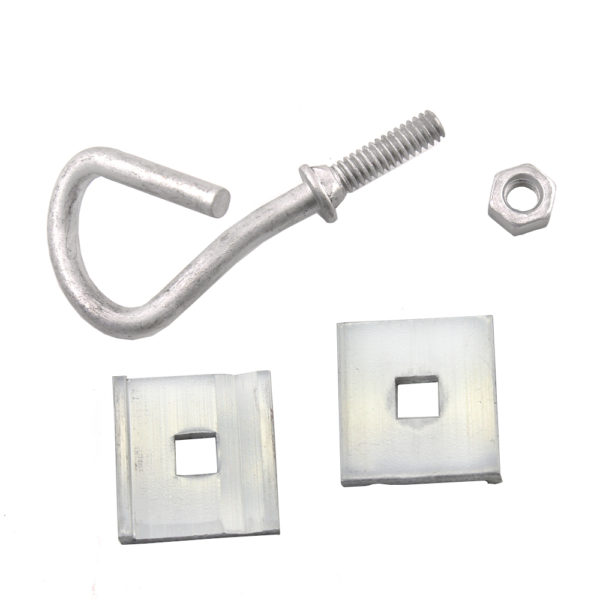

- The clamp consists of a set of aluminum jaws, a 1/4″ diameter “pig-tail” shaped bolt, and a hex nut.
- The Jaws are rolled and stamped from 6063 Aluminum
- The bolt and hex nut are formed from Grade 2 Steel, hot-dip galvanized
- Attaches to strand ranging in size from 1/4″ (6.6m) to 7/16″(16m).

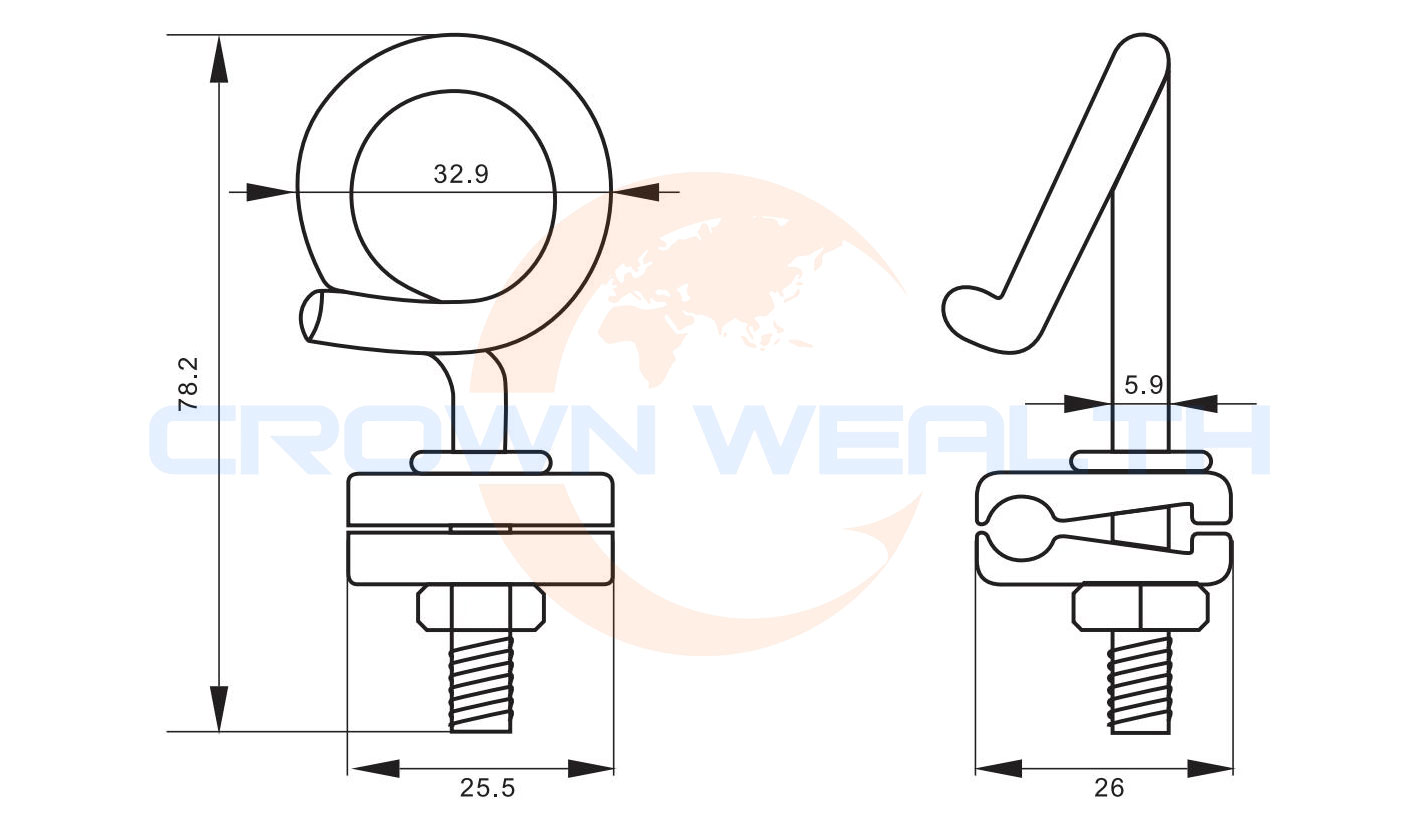

Q Span Clamp Specifications:
| Part No. | Description | Material | Stud |
|---|---|---|---|
| CW-QSC | Q Span Clamp | 6063 Aluminum | Grade 2 Steel |
Installation

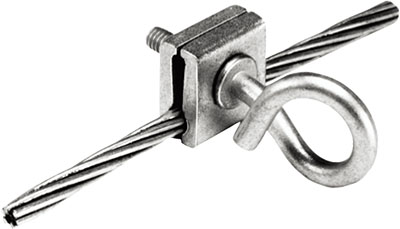

How to Install Q Span Clamp:
- First of all, position clamping polates on top of messenger strand. Here you can tighten clamping nut.
- Then, insert drop wire, drop wire clamp or wire grip into the hook.
- At last, pull drop wire against the hook toward the area where service is being installed.

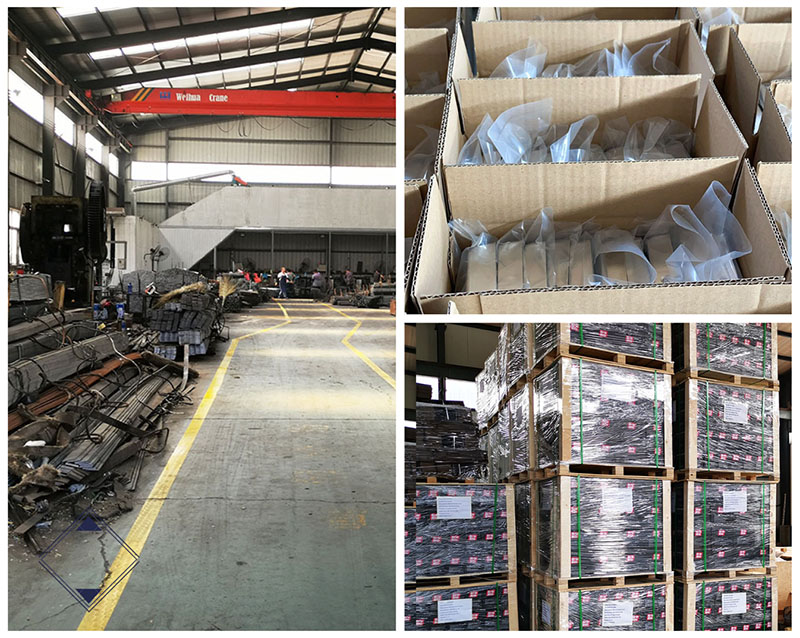

Package & Delivery
