Ratchet Banding Tool
- High performance steel made in Japan as blade
- High quality, using high quality raw materials, reliable quality.
- High quality, stable and reliable processing, surface treatment process provides stable rust resistance.
- Good price, mass production with low price to meet customers’ customized needs
- Reliable quality and super long life.
- Eliminate heavy metals, environmentally friendly and reliable.
Quote Inquiry for Your Product
Being interested in this product? Feel free to contact us or send us inquiries.
Description

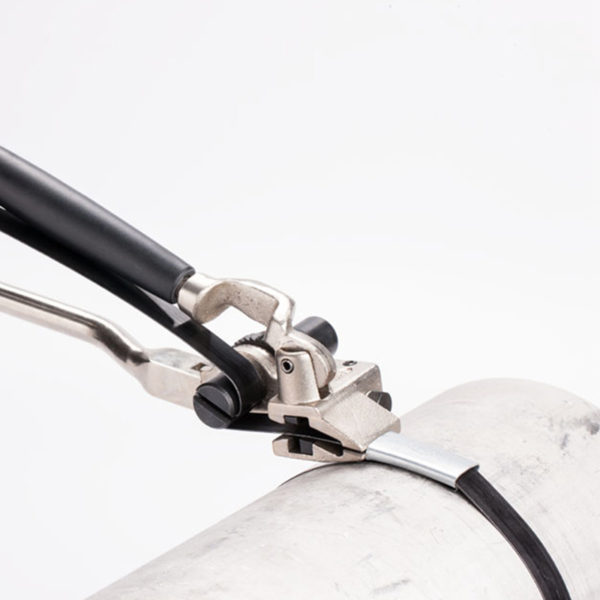

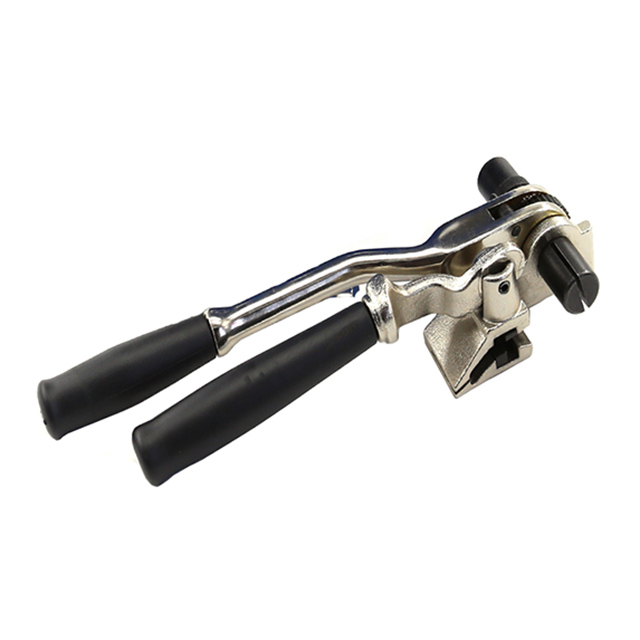

Ratchet Banding Tool is a high-quality ratchet-type heavy duty forged steel strapping tool. Durable tensioner metal banding tool with cutter and hammer knob can be used on bandwidths of 1/4” to 3/4” and thickness up to 0.03” (0.76mm).
With this high quality rachet banding tool, you can install stainless steel band for fixing signs to power poles, and even cut the band for a safe, clean crimp.
Rachet Banding Tool Specifications:
| Part NO. | Stap Size | Length | Weight | |
|---|---|---|---|---|
| Tool | Arm | |||
| CWB-T02 | 1/4″ to 3/4″ | 12″ | 11″ | 4lbs |
Accessories:

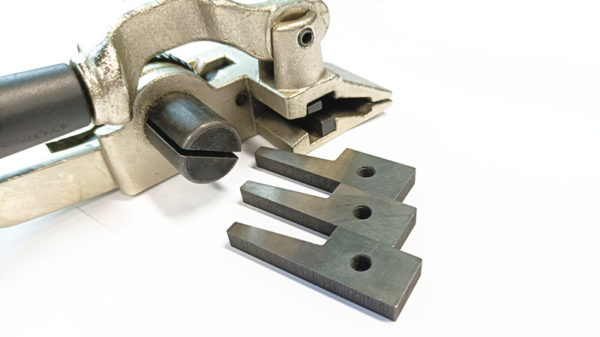

Banding tool Blades

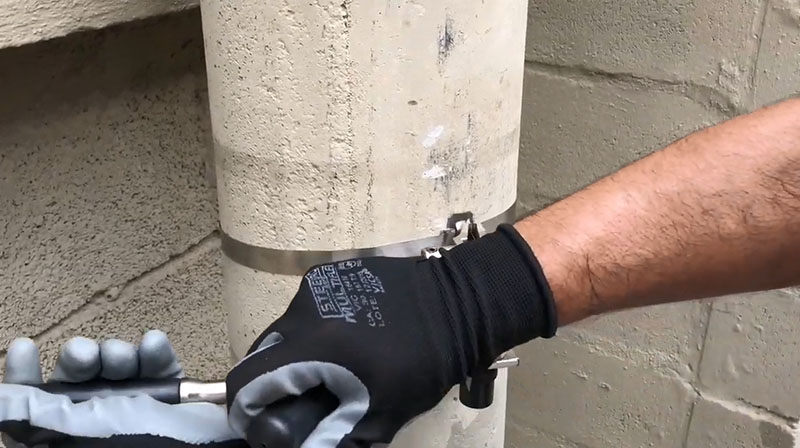

Application of Band & Buckle with Ratchet Banding Tool
-
- Cut a fixed length of stainless steel strap from one roll, but a buckle into one side, reserve 5cm length in advance from the point buckle stops.
- Install the buckle and thread the band through the buckle.

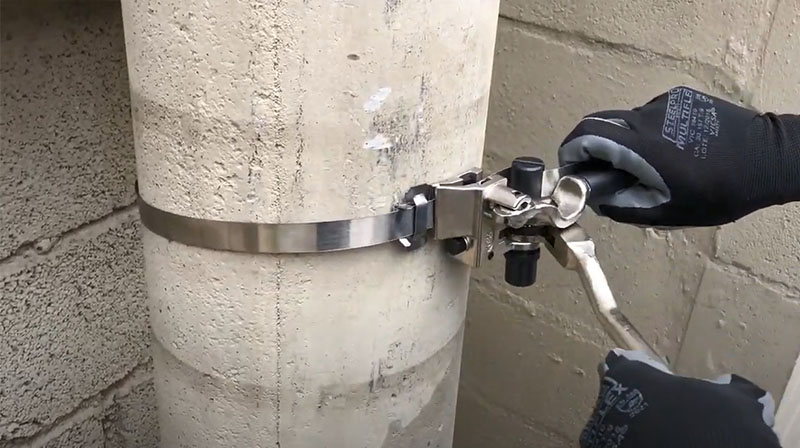

- Hold stainless steel strap with the bracket strapping tool, and swing arms to pull stainless steel strap tightly in the right way.
-
- After reaching tension point, fold tool over to create the lock and cut off using the integrated cutter.
-

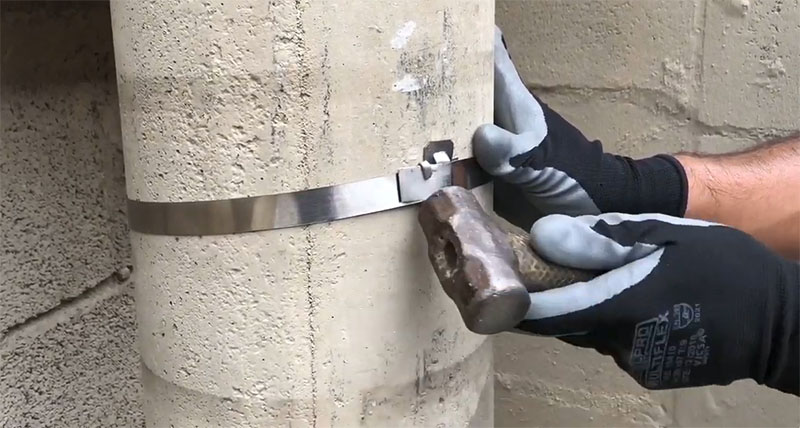

- Hammer out two edges of the buckle to fix reserved stainless steel strap part.
Applications
Application of Band & Buckle with Ratchet Banding Tool
-
- Cut a fixed length of stainless steel strap from one roll, but a buckle into one side, reserve 5cm length in advance from the point buckle stops.
- Install the buckle and thread the band through the buckle.
- Hold stainless steel strap with the bracket strapping tool, and swing arms to pull stainless steel strap tightly in the right way.
-
- After reaching tension point, fold tool over to create the lock and cut off using the integrated cutter.
-
- Hammer out two edges of the buckle to fix reserved stainless steel strap part.
