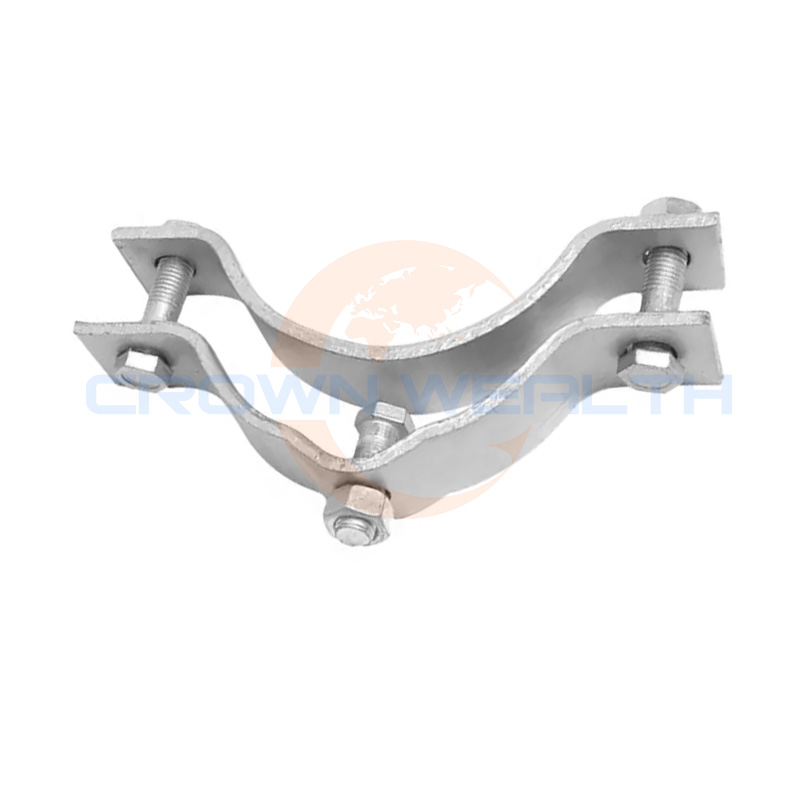

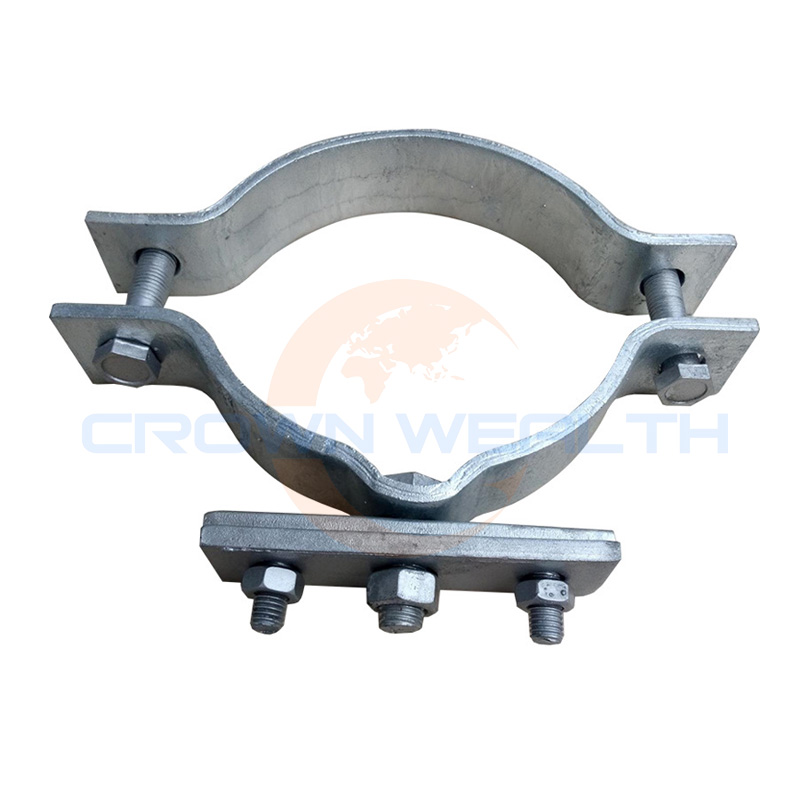

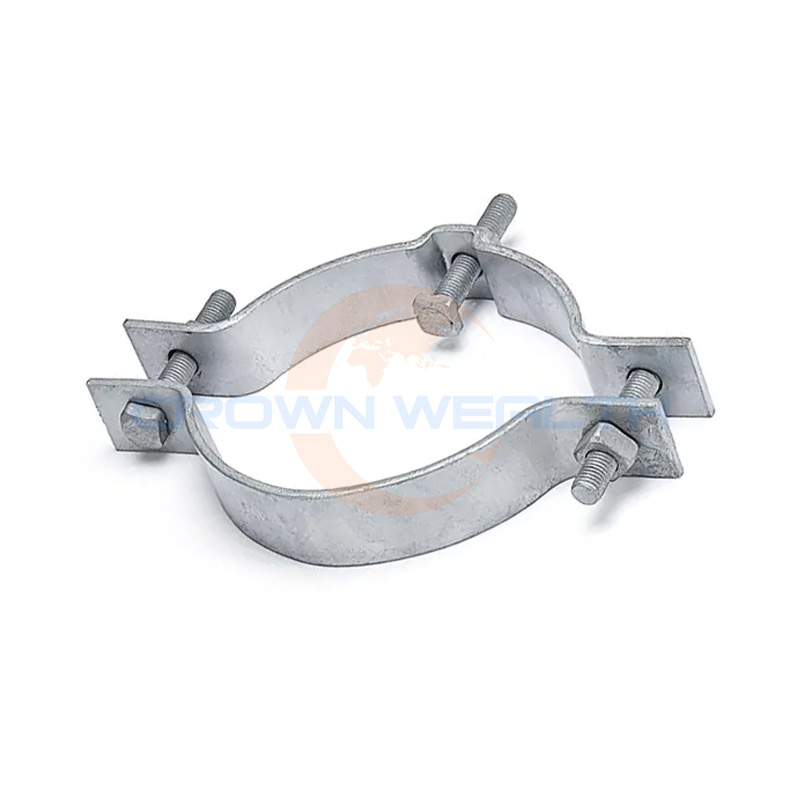

Single Offset Pole Bands
Single Offset Pole Bands are used for dead-ending, guying, and mounting secondary racks on metal poles, pipe masts, or conduit. All components are hot dip galvanized to meet ASTM Specification A153.
Quote Inquiry for Your Product
Being interested in this product? Feel free to contact us or send us inquiries.
Description
These Clamps are designed to adapt to circular and octagonal concrete steel poles. Alternatively can be adapted to wood poles at the end user options.
Pole bands/clamps are used for dead endings, guying, and mounting secondary racks on poles, all components are made of hot dip galvanized to meet ASTM A153 standards. It consists of two, three, or four pieces of bands and a certain number of bolts and nuts.
Whether it is double offset pole bands or single offset pole bands, two pieces of hoops are relatively fixed on cement poles, metal poles, or wooden poles with bolts. The distance between the fixed position and the pole should be greater than 20CM.
Both the pole bands and the cable suspension clamps are fixed on the pole, and then the former secures the suspension clamp and the latter secures the cable of the pole.
Single-slot and double-slot splints are steel strands between two poles, that is, hanging wires, used to fix them when passing through the poles.
Parameters
| Parts No. | Pole Diameter | Material | |
| Max/mm | Min/mm | ||
| CW-SP0809 | 228 | 203 | Galvanized Steel |
| CW-SP0910 | 254 | 228 | |
| CW-SP1011 | 280 | 254 | |
| CW-SP1214 | 330 | 304 | |
FAQ
How are pole bands packed?
Carton box, wooden case, or according to customer’s request.
Can you send me a free sample?
Yes, We are willing to send a free sample, if you would like to pay the shipping costs.
Do you accept OEM or ODM?
Yes, we’re a factory. any your customized requirements we can do our best to help you realize.
