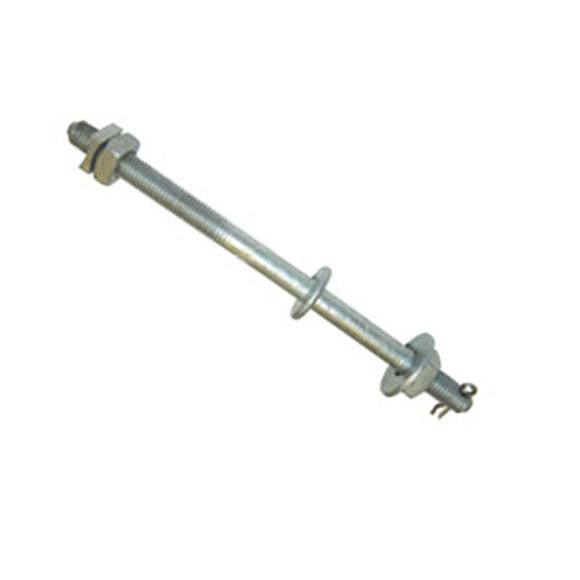

Single Upset Spool Bolt Hdg
Quote Inquiry for Your Product
Being interested in this product? Feel free to contact us or send us inquiries.
Description
The above spool bolts provide added clearance between the insulator and pole
These bolts come complete with two square nuts,mf type locknut, and a locking pin other sizes are available upon request, minimum order quantities may apply for these bolts
1. Spool Bolts are used in conjunction with spool insulators for the side of pole installation.
2. Collars are forged instead of welded for superior strength.
3.Tensile Strength is 13,550 lbs.
4. Recommended torque value is 15 ft-lb.
5. Minimum thread length is 4″ and 6″
6. Spool Bolts are equipped with a 5/8″ Round Washer, 5/8″ Regular Square Nut, and a Cotter Pin on one side. The other side is equipped with a 5/8″ Concave Square Locknut and Regular Square Nut.
|
Parts No. |
Description |
Material |
THREAD |
SHANK Length |
OVERALL LENGTH |
THREAD LENGTH |
APPROX WEIGHT PER 100 |
|
CWUSB-9 |
5/8″ X 9″ SINGLE UPSET SPOOL BOLT HDG |
hot dip galvanized |
5/8″ |
9″ |
13 1/2″ |
4″ |
150LBS |
|
CWUSB-10 |
5/8″ X 10″ SINGLE UPSET SPOOL BOLT HDG |
hot dip galvanized |
5/8″ |
10″ |
14 1/2″ |
4″ |
167LBS |
|
CWUSB-12 |
5/8″ X 12″ SINGLE UPSET SPOOL BOLT HDG |
hot dip galvanized |
5/8″ |
12″ |
16 1/2″ |
6″ |
181LBS |
|
CWUSB-14 |
5/8″ X 14″ SINGLE UPSET SPOOL BOLT HDG |
hot dip galvanized |
5/8″ |
14″ |
18″ |
6″ |
199LBS |
