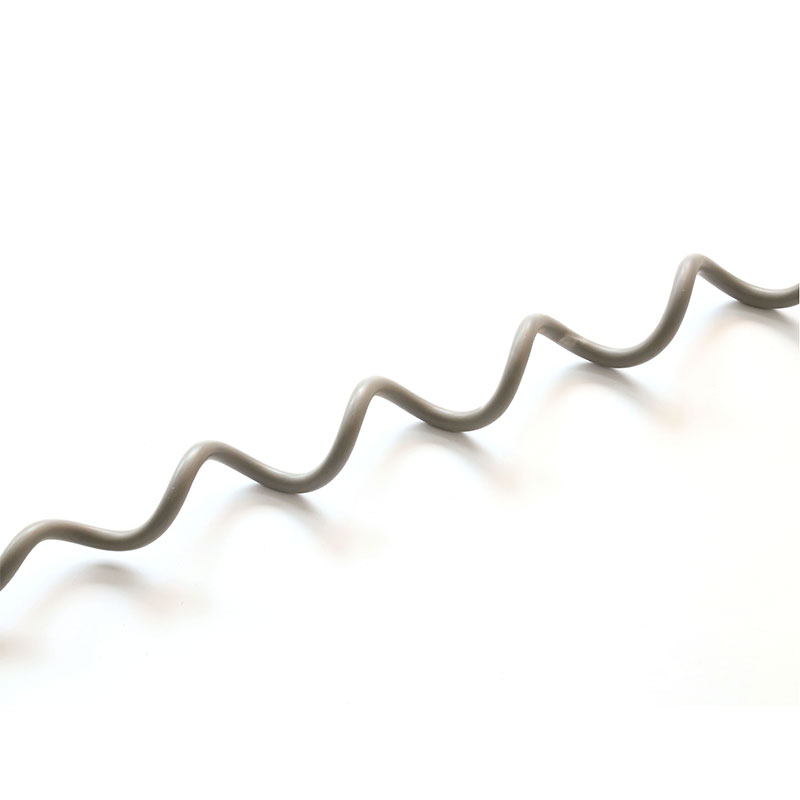

Spiral Vibration Dampers for ADSS

Name: Spiral Vibration Dampers for ADSS

Material: PVC

Suitable cable diameter: 8.0-19.3mm,etc

Package: Carton box

Application: ADSS and OPGW



Description

The spiral vibration dampers is made of high-strength, high-elasticity PVC material, which is resistant to high and low temperatures, waterproof, anti-aging, anti-ultraviolet radiation and anti-chemical corrosion. Used for ADSS and OPGW heavy ice areas.

It eliminates or reduces the vibrations that come from the effect of laminar flow wind, and

prevents damage of the hardware fittings and the cables.

Span(m)

Number/Span

<100

0

100-250

2

250-400

4

400-800

6

800-1000

8



Code

Dia. Cable(mm)

Clamp L (mm)

Total Length(mm)

Weight(kg)

CW-FL 1170 130

8.30-11.70

250

1300

0.28

CW-FL 1430 135

11.71-14.30

250

1350

0.3

CW-FL 1930 167

14.31-19.30

330

1670

0.66
