Splint Retractor Hook
Hinger Support, Fiber Cabling Metal Draw Hooks,Clamp Retractor For FTTH Cabling
Description

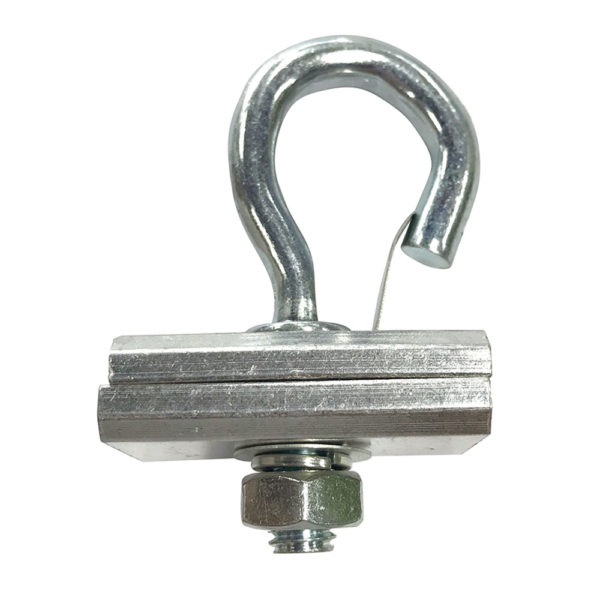

C J Hook Suspension Clamps is a kind of fiber cabling metal draw hooks, clamp retractor for FTTH cabling, used to provide a suspension for 5 to 20mm aerial ADSS cable at intermediate poles on cable routes with angle < 20° on access networks (spans up to 100m). The suspension clamp for ADSS cable consists of a galvanised steel J hook and a neoprene sleeve.
The jaws are rolled and stamped from Aluminum alloy. And the bolt and hex nut are formed from carbon steel Q235.
Main Features:
- The body is made of Carbon steel Q235 and aluminum alloy.
- One of the accessories for FTTH Construction to manage the fiber optic cables.
- Effective and time saving for cabling.
- ISO 9001:2008 Certified
Specifications:
Parts No. | Length | Width | Height | Material |
---|---|---|---|---|
Splint Retractor | 50 | 31.5 | 80 | Carbon steel Q235 + Aluminium alloy |
