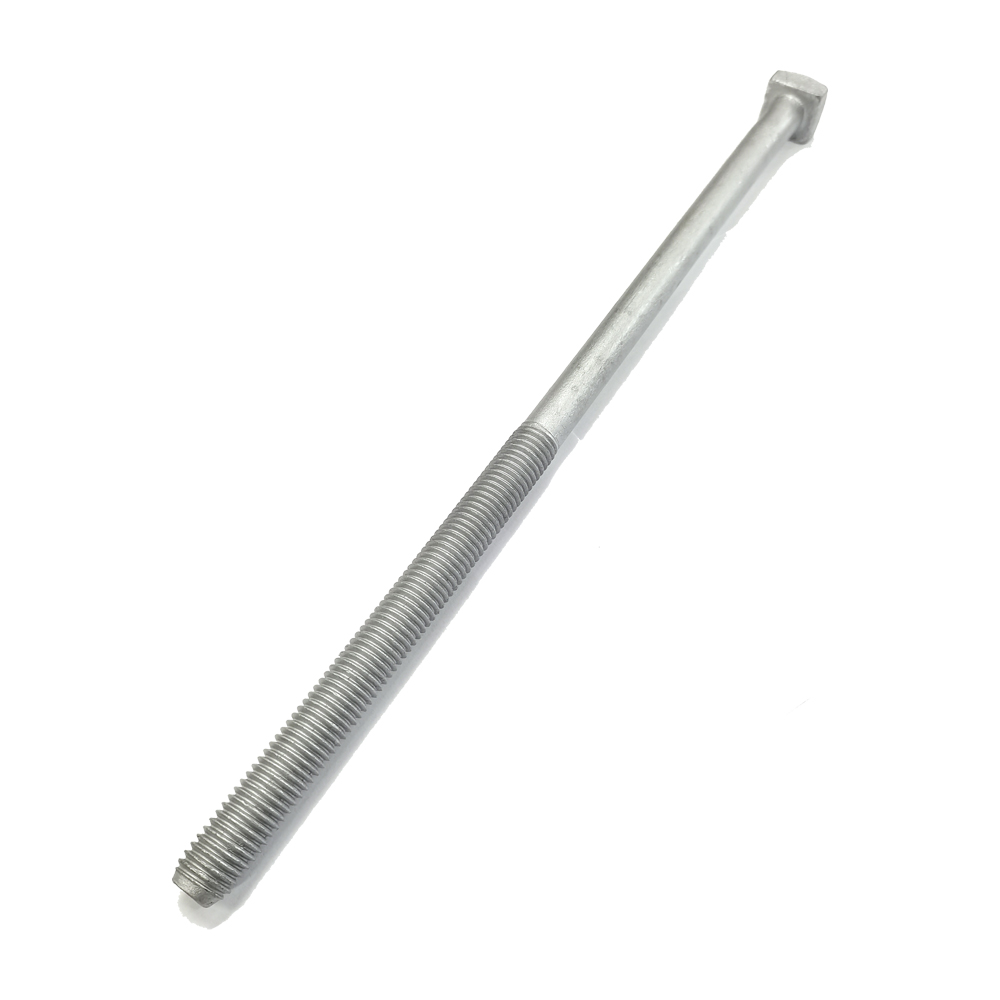

square head machine bolt
Square head machine bolts, constructed of high quality steel,are used to fasten utility pole-line hardware to cross arms, poles and other structures. Cone points permit easy driving without damage to threads.Now are most commonly used for aesthetic purposes to provide a rustic look in a new structure or to match existing fasteners in an older structure.
Quote Inquiry for Your Product
Being interested in this product? Feel free to contact us or send us inquiries.
Description
Square head machine bolts, constructed of high quality steel,are used to fasten utility pole-line hardware to cross arms, poles and other structures. Cone points permit easy driving without damage to threads.Now are most commonly used for aesthetic purposes to provide a rustic look in a new structure or to match existing fasteners in an older structure.
| Parts No. | Description | Material | Length |
| CW-SHB | Square head machine bolt | stainless steel OR steel galvanized | 3/8″ ,1/2″ , 5/8″ , 3/4″ , 7/8″ |
main feature:
- Used for fastening pole line hardware to cross arms, poles, and other structures.
- Hot dip galvanized to meet ASTM Specification F2329.
- Supplied with attached square nut.
- Minimum tensile strength: 4,650 lbs.
- Recommended torque value: 15 ft lb.
- Minimum thread length is 6″.
- Material conforms to ASTM specification A307.
- Dimensions conform to ASME B18.2.1.
