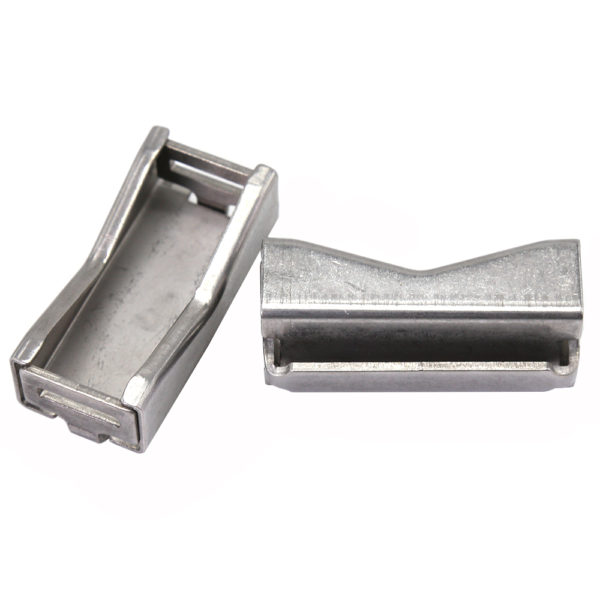

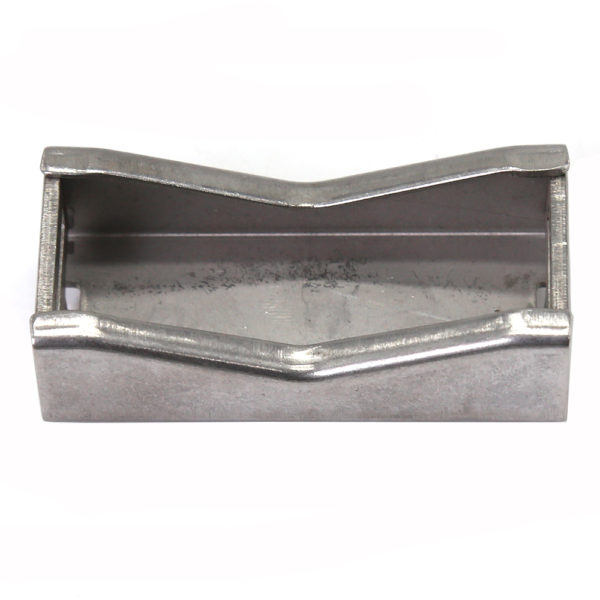

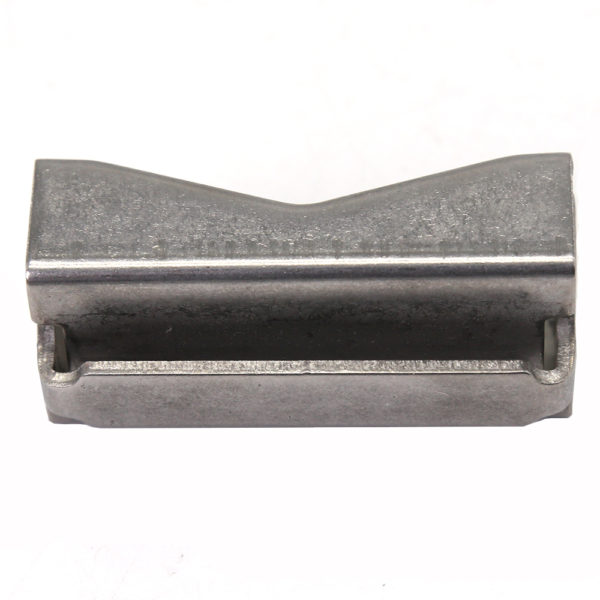

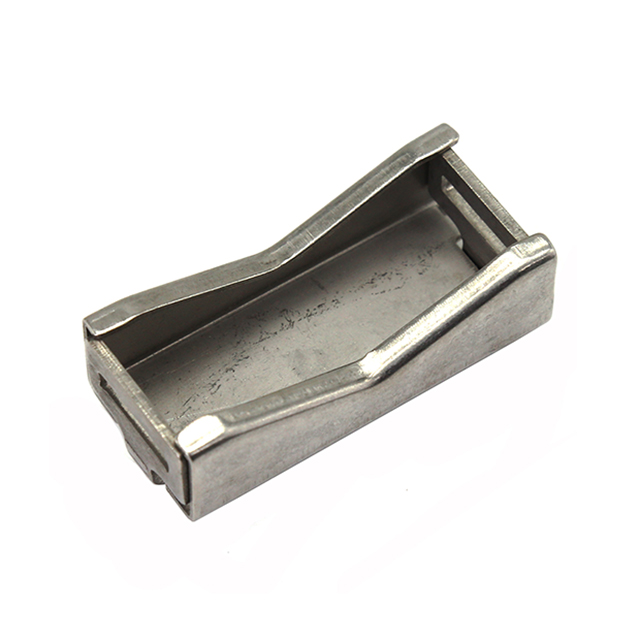

Stainless Steel Universal Channel Clamps
Stainless steel type 201, type 304, and hot-dip galvanized Q235 steel are avialable.
OEM production and customized sizes are acceptable.
Quote Inquiry for Your Product
Being interested in this product? Feel free to contact us or send us inquiries.
Description
Stainless steel Universal Channel Clamps are used for fixing all types and sizes of sign that incorporate channel sections to the rear. The clamps simply slide into place along the channeling and then accept 3/4″ or 5/8″ stainless steel banding to facilitate the fixing of the sign to any size or shape of post, pole or column.
Our universal channel clamp is specially designed a featured saddle that slides into the signfix channel. Universal Channel Clamp accepts all bands up to 19mm ( 3/4″) and as the band tightens the saddle clamps tightly against the channel holding the sign securely in place.
Main Features:
- Universal channel clamps for fixing signs to posts, poles, or columns.
- Simply attach to the back of the sign with band.
- Stainless steel type 201, type 304, type 316 are avilable, offering high resistance to oxidation and many moderate corrosive agents.
- Cheap and effective channel fixing clip solution.
- Compatible with standard jubilee clips available from hardware stores.
- We accept OEM production. Your company’s logo and stainless steel channel clamps type can be marked on the clamp itself.
Universal Channel Clamp Specifications:
| Item NO. | Length (mm) | Width (mm) | Fastener Width (mm) |
|---|---|---|---|
| CWUCC-1 | 70 | 32 | 22 |
| CWUCC-2 | 70 | 32 | 17 |
| CWUCC-3 | 70 | 32 | 13 |
| CWUCC-4 | 30 | 32 | 22 |
| CWUCC-5 | 30 | 32 | 17 |
Applications

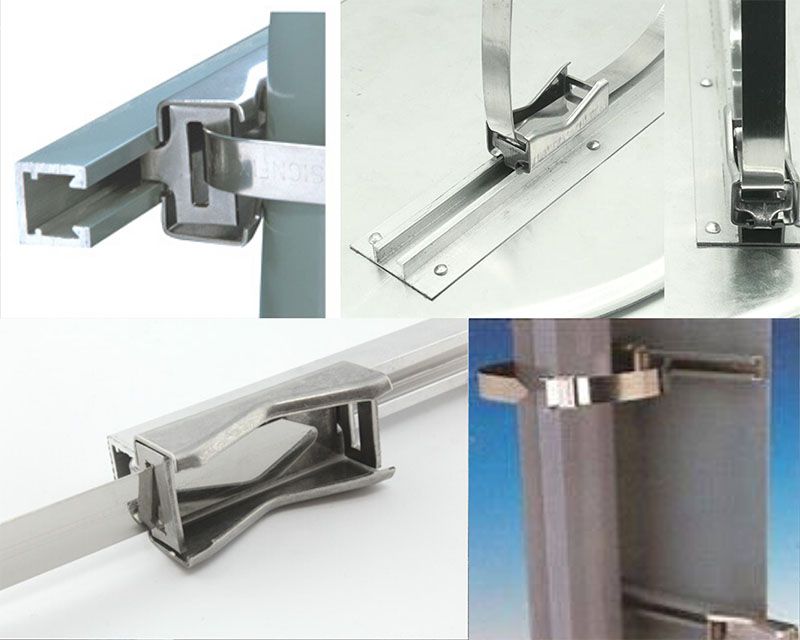

Universal Channel Clamp for Fixing Signs to Posts:
