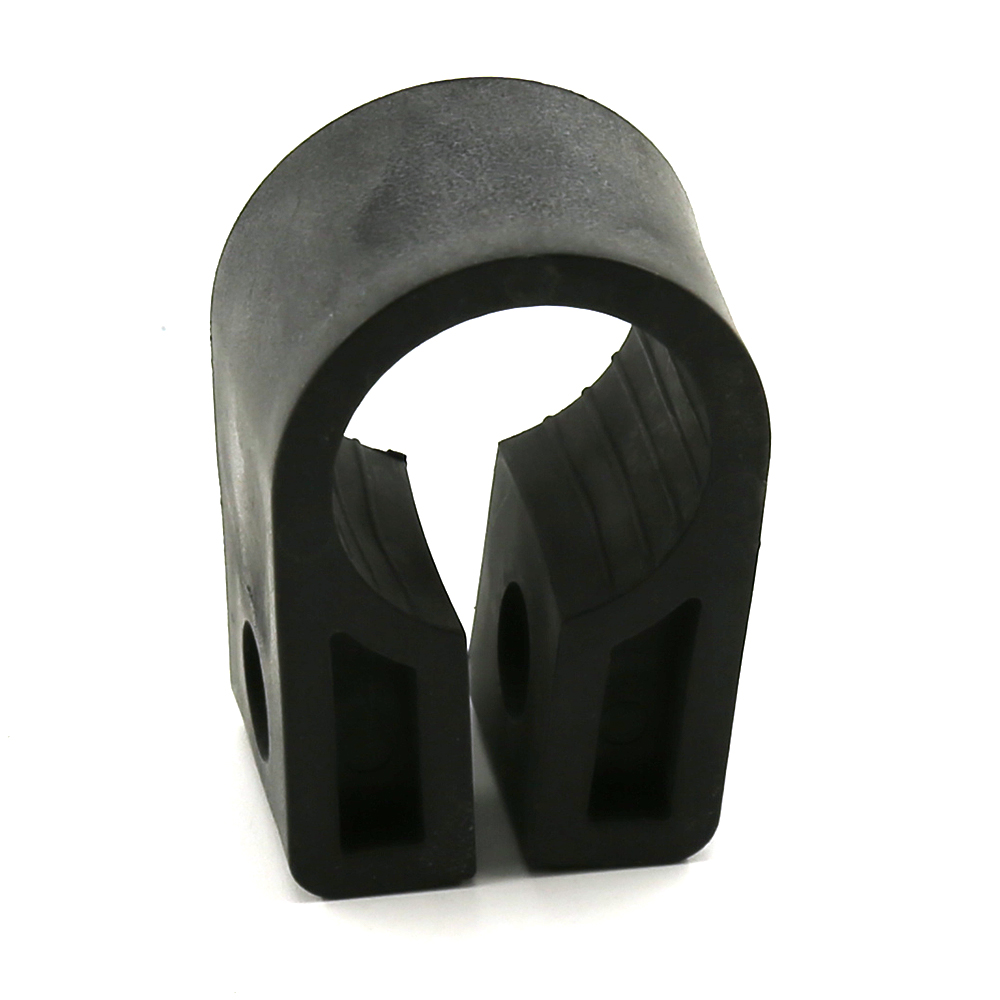

SWA Cable Cleat
Quote Inquiry for Your Product
Being interested in this product? Feel free to contact us or send us inquiries.
Description

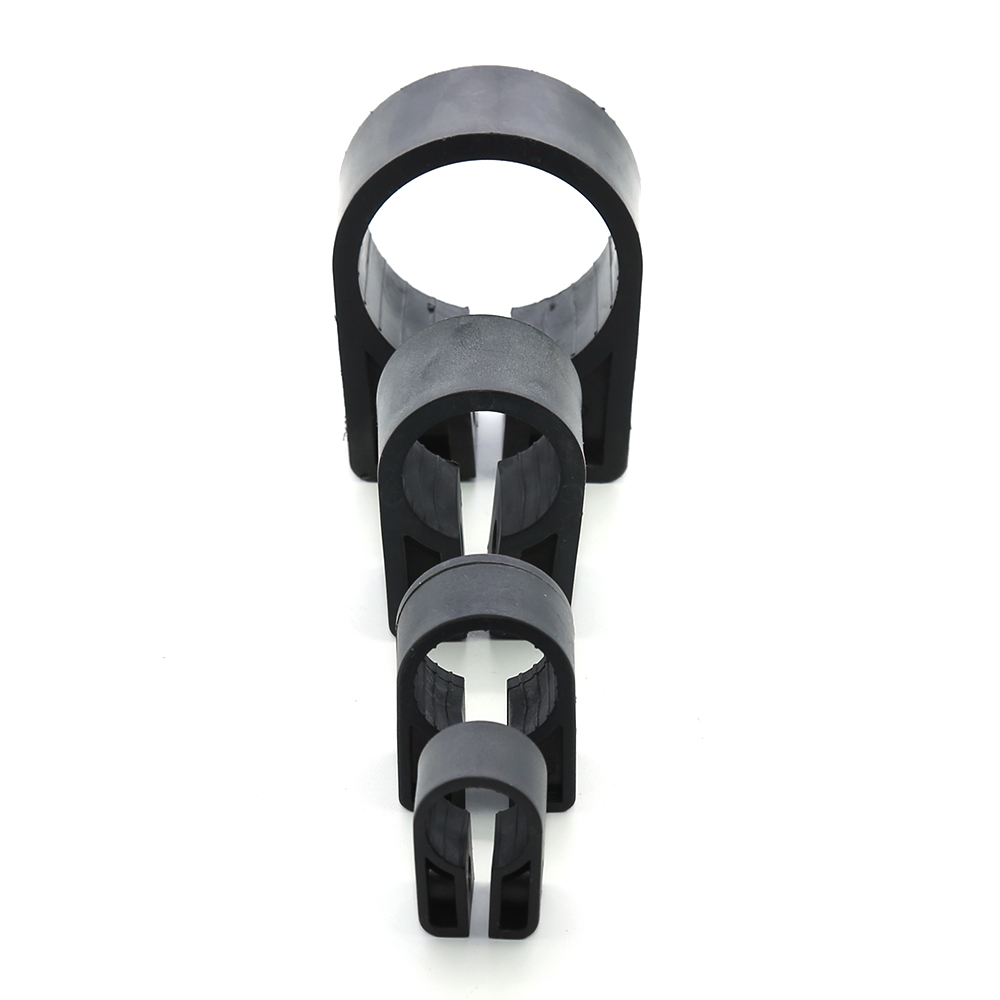

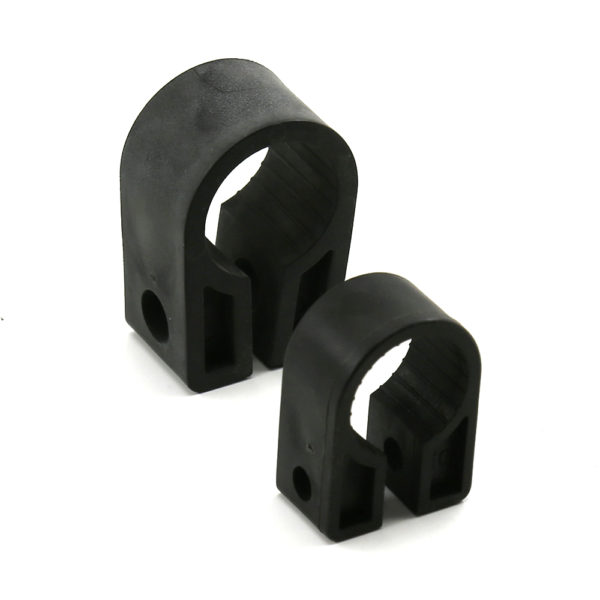

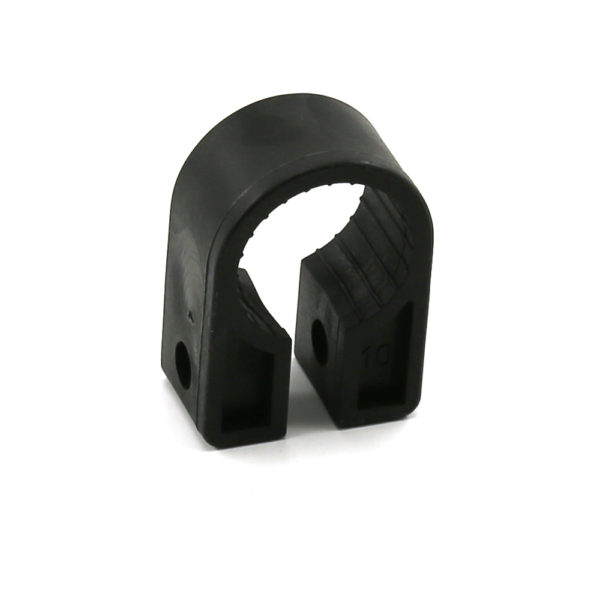

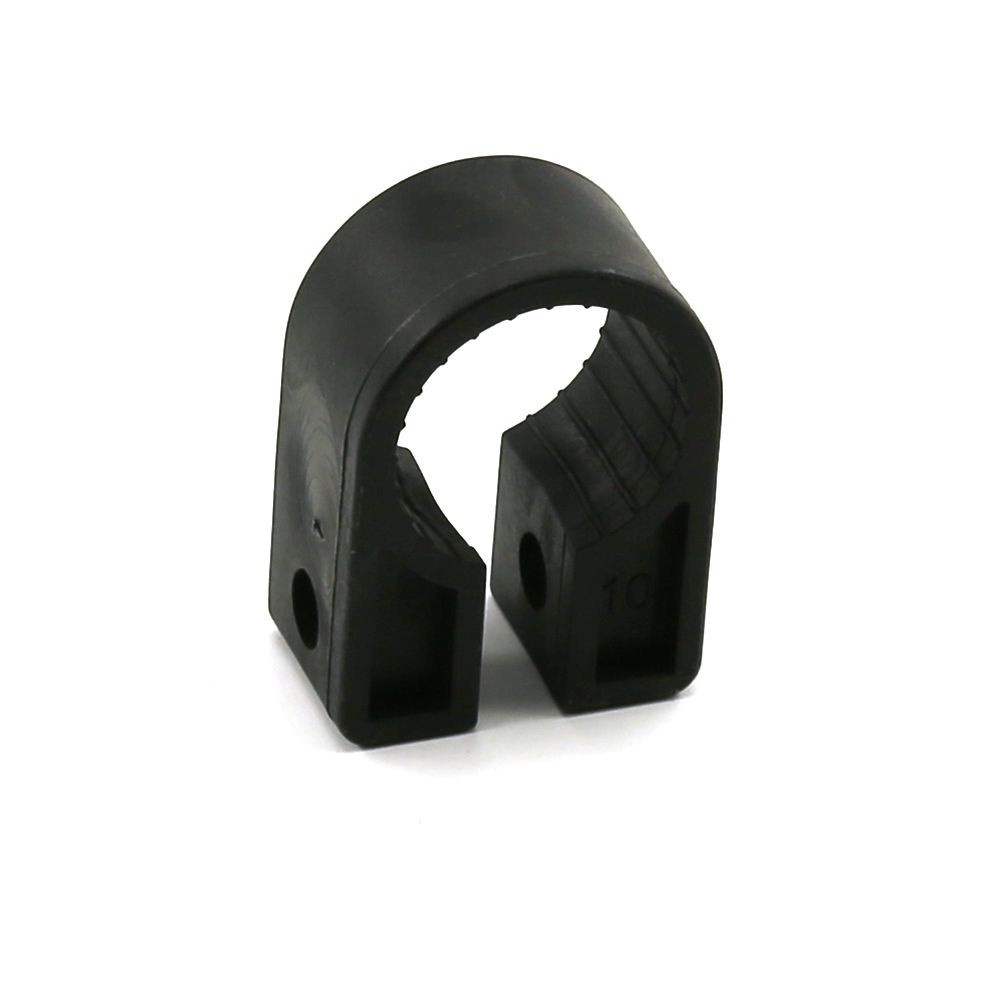

SWA Cable Cleats are primarily used for ensuring safe retention and support of Armoured Cables when attaching them to buildings, high structures, as well as many other applications. They are a basic, but very useful accessory that come in a variety of sizes to suit any size of Armoured Cable.
The Steel Wire Armour Cable Clip Cleats from HardwareManufactury are a strong but simple, economical, single-hold fixing for securing armoured cables in place to Most Surfaces.
These durable cable clips can be used for a various amount of applications and perform well during domestic and commercial use.
Main Features
- Glass fibre reinforced polyamide, hiigh strength, corrosion & high impact resistant with a high level of UV resistance.
- Ideal for installations where the cables are subject to top short circuits.
- The width of the clamping-area provides a controlled pressure on the cable and avoids damage to the solation.
- Suitable for indoor and outdoor use.
- No alteration of strength and signs of degrading within temperatures ranges from -20°C to +80 °C.
SWA Cable Cleat Specifications:
| Cleat Code | Cable Diameters mm | Dimensions mm | Clearance Bolt Holes | Pack Quantity | |||
|---|---|---|---|---|---|---|---|
| C3-100 | 5.0 | 7.6 | 12.5 | 15.0 | 26.5 | 6 | 100 |
| C4-100 | 7.7 | 10.0 | 15.0 | 15.0 | 27.0 | 6 | 100 |
| C5-100 | 10.1 | 12.7 | 18.0 | 14.2 | 27.2 | 6 | 100 |
| C6-100 | 12.6 | 15.2 | 20.0 | 15.0 | 31.0 | 6 | 100 |
| C7-100 | 15.1 | 17.8 | 23.0 | 15.0 | 33.7 | 6 | 100 |
| C8-100 | 17.7 | 20.3 | 25.0 | 16.0 | 36.0 | 6 | 100 |
| C9-100 | 20.2 | 22.8 | 28.5 | 16.0 | 41.0 | 6 | 100 |
| C10-100 | 22.7 | 25.4 | 30.0 | 16.0 | 44.0 | 6 | 100 |
| C11-50 | 25.3 | 27.7 | 34.2 | 20.0 | 49.0 | 10 | 50 |
| C12-50 | 27.6 | 30.5 | 36.0 | 20.0 | 52.0 | 10 | 50 |
| C14-50 | 30.4 | 35.5 | 42.0 | 21.5 | 59.0 | 10 | 50 |
| C16-50 | 35.4 | 40.6 | 47.0 | 21.5 | 64.0 | 10 | 50 |
| C18-50 | 40.6 | 45.7 | 51.0 | 21.5 | 68.5 | 10 | 50 |
| C20-50 | 45.6 | 50.8 | 56.5 | 21.5 | 73.0 | 10 | 50 |
