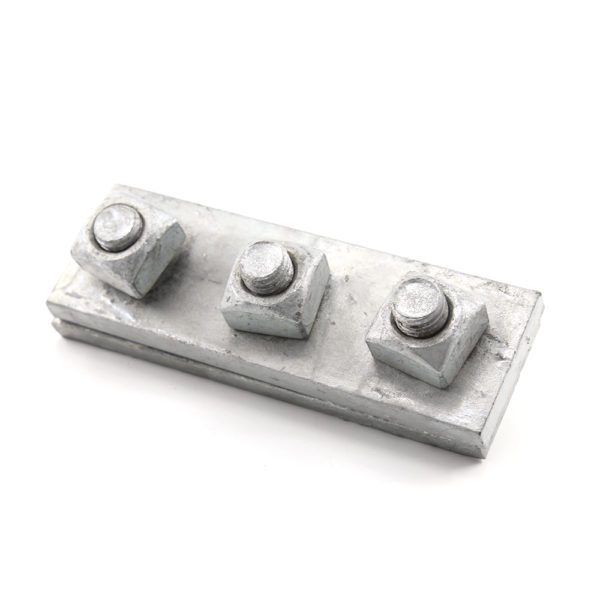

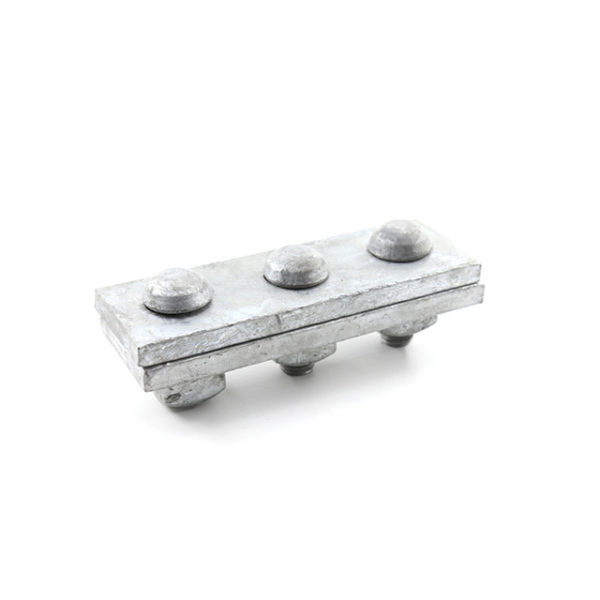

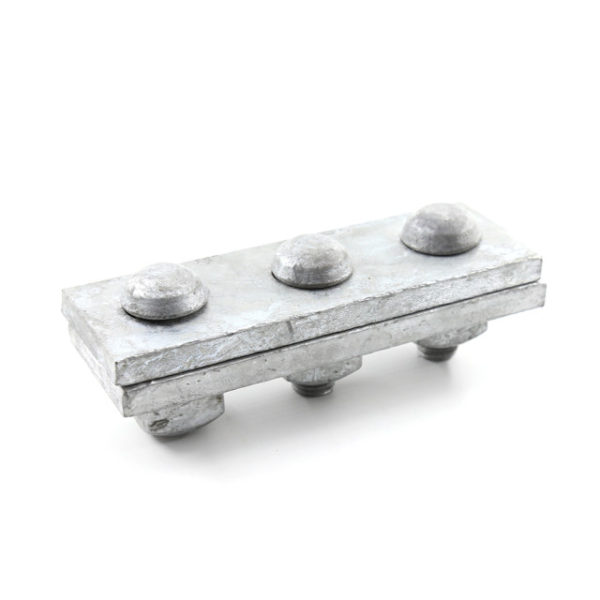

Three Bolt Guy Wire Clamp
Three Bolt Guy Clamp. Parallel grooves trap strand tightly without marring. Each bolt has a shoulder to prevent turning while tightening. Hot dip galvanized.
Quote Inquiry for Your Product
Being interested in this product? Feel free to contact us or send us inquiries.
Description
Three Bolt Guy clamp, also called 3 bolt suspension clamp, rolled from carbon steel with straight parallel grooves that will not damage the strand.
3 Bolt Guy Clamp is mainly used on communication line, together with the stay wire and anchor rod to make the pole stable. When the stay wire goes across the anchor rod, the 3 bolt clamp bites the end of the stay wire to prevent the stay wire from creeping down. The grooves of the guy clamp clad the stay wire, and the bolt will fasten two pieces of guy clamp clamping the stay wire.
In another installation way, the 3 bolt guy clamp is replaced by the wire rope clip or guy grip. Some types of guy clamps have curved ends, protecting the wire from damage.

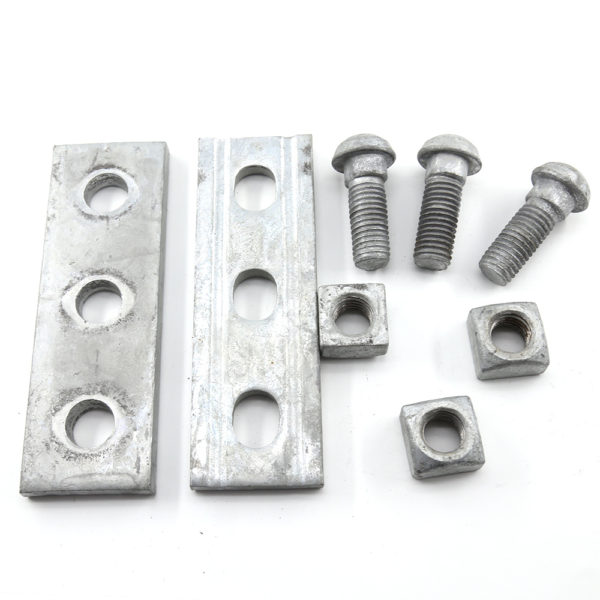

The guy clamp consist of two plates with three bolts equipped with nuts. The clamping bolts have special shoulders to prevent turning when the nuts are tightened.
Material: Constructed of high quality steel, hot-dip galvanized.
Guy Clamp Manufacturing Process:
Our Guy Clamp manufacturing process consists of the following stages:
- Firstly, hot rolling, where the blank gets cut, heated and rolled till it becomes of the needed size and form.
- And then pressing hole on the carbon steel.
- The final process is doing hot dip galvanizing.
Specifications:
| Parts No. | Description | Plate Length | Plate Width |
|---|---|---|---|
| CW-TBC | Three Bolt Guy Clamp | 5-7/8” | 1-9/16” |
